HEDS-9922PRGEVB
HEDS-9922EVB User Guide

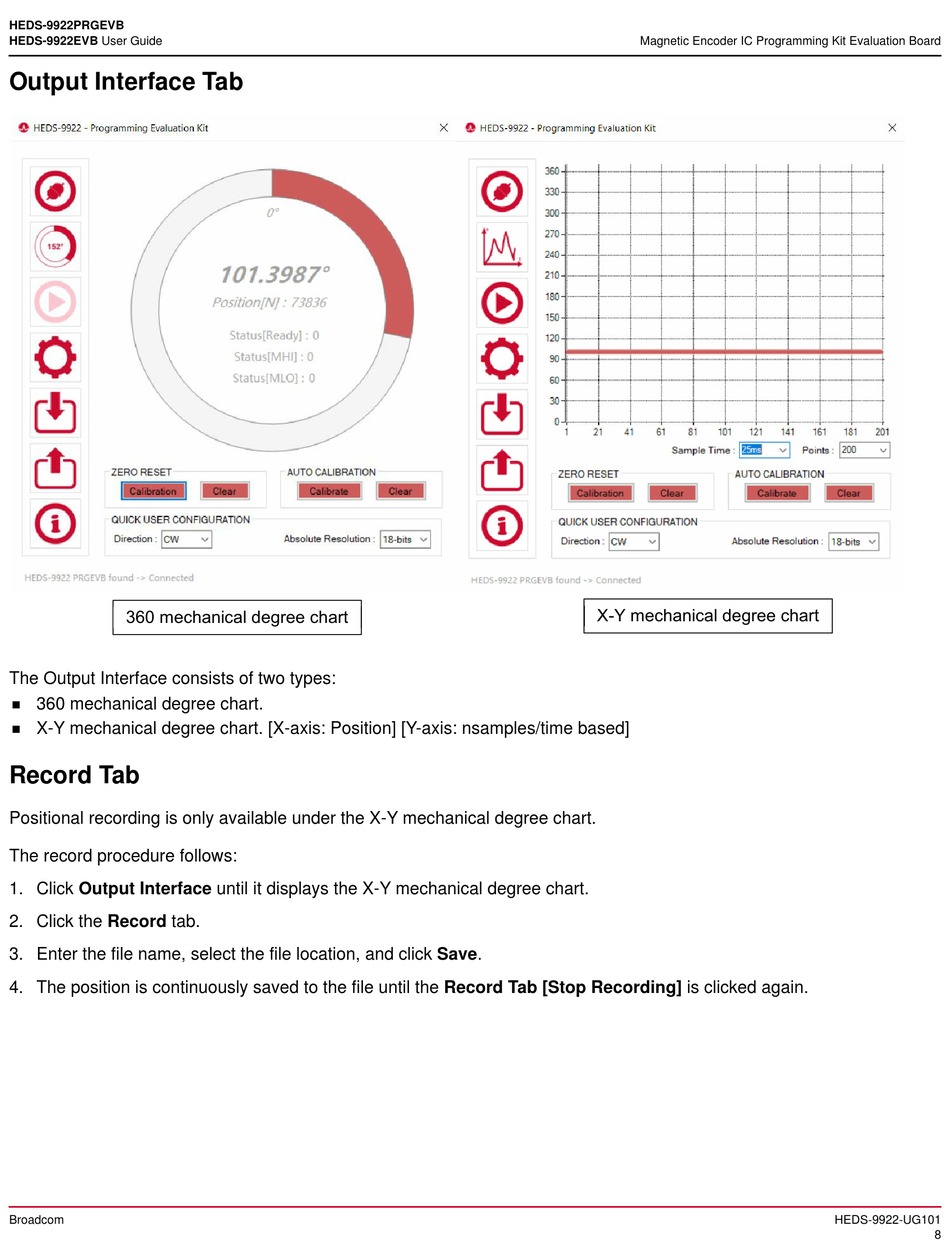

Output Interface Tab
360 mechanical degree chart
The Output Interface consists of two types:
360 mechanical degree chart.

X-Y mechanical degree chart. [X-axis: Position] [Y-axis: nsamples/time based]


Record Tab

Positional recording is only available under the X-Y mechanical degree chart.
The record procedure follows:
1. Click Output Interface until it displays the X-Y mechanical degree chart.
2. Click the Record tab.
3. Enter the file name, select the file location, and click Save.
4. The position is continuously saved to the file until the Record Tab [Stop Recording] is clicked again.
Broadcom
Magnetic Encoder IC Programming Kit Evaluation Board
X-Y mechanical degree chart
HEDS-9922-UG101
8
