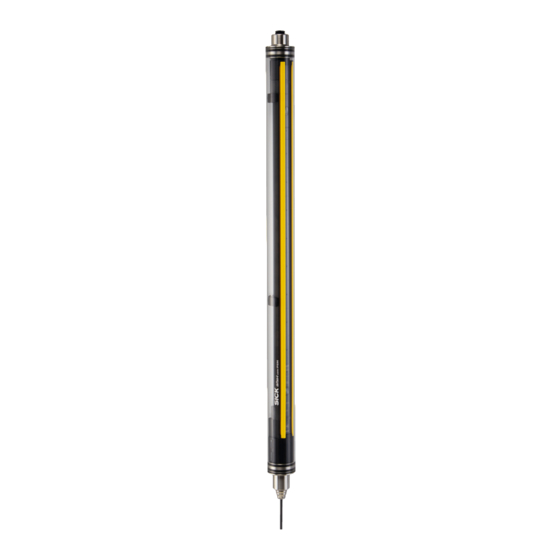

- Page 1 O P E R A T I N G I N S T R U C T I O N S deTem4 Core IP69K Safety multibeam sensor...
- Page 2 Original document This document is an original document of SICK AG. O P E R A T I N G I N S T R U C T I O N S | deTem4 Core IP69K 8021559/1DAL/2022-10-27 | SICK Subject to change without notice...
-
Page 3: Table Of Contents
5.3.3 Mounting the stainless steel supporting bracket....8021559/1DAL/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTem4 Core IP69K Subject to change without notice... - Page 4 14.1 Protective housing..................Accessories..................53 15.1 Brackets....................15.2 Connectivity....................O P E R A T I N G I N S T R U C T I O N S | deTem4 Core IP69K 8021559/1DAL/2022-10-27 | SICK Subject to change without notice...
- Page 5 List of figures..................61 List of tables..................62 8021559/1DAL/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTem4 Core IP69K Subject to change without notice...
-
Page 6: About This Document
The following information is available on the Internet: O P E R A T I N G I N S T R U C T I O N S | deTem4 Core IP69K 8021559/1DAL/2022-10-27 | SICK Subject to change without notice... -
Page 7: Symbols And Document Conventions
The symbol indicates the sender. The symbol indicates the receiver. 8021559/1DAL/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTem4 Core IP69K Subject to change without notice... -
Page 8: Safety Information
Outdoors • Underwater • In explosion-hazardous areas O P E R A T I N G I N S T R U C T I O N S | deTem4 Core IP69K 8021559/1DAL/2022-10-27 | SICK Subject to change without notice... -
Page 9: Requirements For The Qualification Of Personnel
For maintenance, you must be able to assess if the machine is operating safely. 8021559/1DAL/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTem4 Core IP69K Subject to change without notice... -
Page 10: Product Description
The beam separation and number of beams depend on the device variant. O P E R A T I N G I N S T R U C T I O N S | deTem4 Core IP69K 8021559/1DAL/2022-10-27 | SICK... -
Page 11: Product Characteristics
The safety multibeam sensor is mounted in an IP69K protective housing. 8021559/1DAL/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTem4 Core IP69K Subject to change without notice... -
Page 12: Status Indicators
Labeling Yellow Status indicator Fault indicator " O P E R A T I N G I N S T R U C T I O N S | deTem4 Core IP69K 8021559/1DAL/2022-10-27 | SICK Subject to change without notice... - Page 13 Further topics • "Diagnostic LEDs", page 43 8021559/1DAL/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTem4 Core IP69K Subject to change without notice...
-
Page 14: Example Applications
Figure 5: Single-sided access protection Figure 6: Multi-sided access protection O P E R A T I N G I N S T R U C T I O N S | deTem4 Core IP69K 8021559/1DAL/2022-10-27 | SICK Subject to change without notice... -
Page 15: Project Planning
This chapter contains important information about the design. 8021559/1DAL/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTem4 Core IP69K Subject to change without notice... -
Page 16: Minimum Distance From The Hazardous Point
Further topics • "Technical data", page 47 O P E R A T I N G I N S T R U C T I O N S | deTem4 Core IP69K 8021559/1DAL/2022-10-27 | SICK Subject to change without notice... - Page 17 Depending on the application and distance, persons must be prevented from standing § behind the protective device. 8021559/1DAL/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTem4 Core IP69K Subject to change without notice...
-
Page 18: Minimum Distance From Reflective Surfaces
Read the minimum distance a in millimeters (mm) in the graph or calculate using the respective formula to determine the minimum distance to reflective surfaces: O P E R A T I N G I N S T R U C T I O N S | deTem4 Core IP69K 8021559/1DAL/2022-10-27 | SICK... -
Page 19: Protection Against Interference From Systems In Close Proximity To Each Other
Use suitable measures to prevent interference between systems in close proximity to each other. 8021559/1DAL/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTem4 Core IP69K Subject to change without notice... -
Page 20: Integrating Into The Electrical Control
In the machine controller, the signals of both OSSDs must be processed sepa‐ rately. O P E R A T I N G I N S T R U C T I O N S | deTem4 Core IP69K 8021559/1DAL/2022-10-27 | SICK... - Page 21 8021559/1DAL/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTem4 Core IP69K Subject to change without notice...
-
Page 22: Restart Interlock
External device monitoring (EDM) monitors the status of downstream contactors. O P E R A T I N G I N S T R U C T I O N S | deTem4 Core IP69K 8021559/1DAL/2022-10-27 | SICK... -
Page 23: Connection Diagrams
RLY3-OSSD2 off. Contactors K1 and K2 are switched off. 8021559/1DAL/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTem4 Core IP69K Subject to change without notice... -
Page 24: Testing Plan
Define all guidelines for the check. O P E R A T I N G I N S T R U C T I O N S | deTem4 Core IP69K 8021559/1DAL/2022-10-27 | SICK Subject to change without notice... -
Page 25: Test Rod Check
The OSSD LED on the receiver lights up red. Enable the light beam. 8021559/1DAL/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTem4 Core IP69K Subject to change without notice... -
Page 26: Visual Check Of The Machine And The Protective Device
O P E R A T I N G I N S T R U C T I O N S | deTem4 Core IP69K 8021559/1DAL/2022-10-27 | SICK... -
Page 27: Mounting
8021559/1DAL/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTem4 Core IP69K Subject to change without notice... - Page 28 • "Minimum distance from reflective surfaces", page 18 O P E R A T I N G I N S T R U C T I O N S | deTem4 Core IP69K 8021559/1DAL/2022-10-27 | SICK Subject to change without notice...
-
Page 29: Mounting The Reinforced Stainless Steel Bracket
Use the two M5 screws to fix the position of the sender/receiver in the reinforced stainless steel bracket. 8021559/1DAL/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTem4 Core IP69K Subject to change without notice... -
Page 30: Mounting The Stainless Steel Bracket
In the event of vibratory/impact loads according to IEC 61496, devices must be fitted with additional stainless steel supporting brackets. O P E R A T I N G I N S T R U C T I O N S | deTem4 Core IP69K 8021559/1DAL/2022-10-27 | SICK... - Page 31 M8 screws right at the end of the mounting process. 8021559/1DAL/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTem4 Core IP69K Subject to change without notice...
-
Page 32: Electrical Installation
Example: Isolated connection of OSSD1 and OSSD2 Figure 19: Dual-channel and isolated connection of OSSD1 and OSSD2 O P E R A T I N G I N S T R U C T I O N S | deTem4 Core IP69K 8021559/1DAL/2022-10-27 | SICK... -
Page 33: System Connection (Flying Leads, 5-Wire)
"Integrating into the electrical control", page 20 8021559/1DAL/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTem4 Core IP69K Subject to change without notice... -
Page 34: Commissioning
"Mounting", page 27 • "Electrical installation", page 32 O P E R A T I N G I N S T R U C T I O N S | deTem4 Core IP69K 8021559/1DAL/2022-10-27 | SICK Subject to change without notice... -
Page 35: Switching On
8021559/1DAL/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTem4 Core IP69K Subject to change without notice... -
Page 36: Alignment With The Reinforced Stainless Steel Bracket
Figure 21: Rotating the sender or receiver in the reinforced stainless steel bracket O P E R A T I N G I N S T R U C T I O N S | deTem4 Core IP69K 8021559/1DAL/2022-10-27 | SICK... -
Page 37: Alignment With The Stainless Steel Bracket
Remove all objects from this area to allow the alignment quality to be assessed. 8021559/1DAL/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTem4 Core IP69K Subject to change without notice... -
Page 38: Check During Commissioning And Modifications
Carry out the checks specified in the test plan of the manufacturer of the machine and the operating entity. O P E R A T I N G I N S T R U C T I O N S | deTem4 Core IP69K 8021559/1DAL/2022-10-27 | SICK... -
Page 39: Operation
Carry out the checks specified in the test plan of the manufacturer of the machine and the operating entity. 8021559/1DAL/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTem4 Core IP69K Subject to change without notice... -
Page 40: Maintenance
We recommend the use of anti-static plastic cleaner (SICK part number 5600006) and the SICK lens cloth (SICK part number 4003353). O P E R A T I N G I N S T R U C T I O N S | deTem4 Core IP69K 8021559/1DAL/2022-10-27 | SICK... -
Page 41: Replacing The Protective Housing
"Spare parts", page 52 • "Commissioning", page 34 8021559/1DAL/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTem4 Core IP69K Subject to change without notice... -
Page 42: Regular Thorough Check
Carry out the checks specified in the test plan of the manufacturer of the machine and the operating entity. O P E R A T I N G I N S T R U C T I O N S | deTem4 Core IP69K 8021559/1DAL/2022-10-27 | SICK... -
Page 43: Troubleshooting
Replace the sender, see "Ordering information", page 8021559/1DAL/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTem4 Core IP69K Subject to change without notice... -
Page 44: Fault Indicator On The Receiver
O P E R A T I N G I N S T R U C T I O N S | deTem4 Core IP69K 8021559/1DAL/2022-10-27 | SICK Subject to change without notice... - Page 45 LED off. Ö LED flashes. O LED illuminates. 8021559/1DAL/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTem4 Core IP69K Subject to change without notice...
-
Page 46: Decommissioning
SICK will be glad to help you dispose of these devices on request. O P E R A T I N G I N S T R U C T I O N S | deTem4 Core IP69K 8021559/1DAL/2022-10-27 | SICK... -
Page 47: Technical Data
Maximum Wavelength of sender Near-infrared (NIR), invisible 8021559/1DAL/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTem4 Core IP69K Subject to change without notice... -
Page 48: Technical Data For Receiver
Storage temperature –30 °C … +70 °C Housing cross-section ø 50 mm O P E R A T I N G I N S T R U C T I O N S | deTem4 Core IP69K 8021559/1DAL/2022-10-27 | SICK Subject to change without notice... -
Page 49: Table Of Weights
1660 2290 2300 1750 1760 Tolerance: ± 50 g 8021559/1DAL/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTem4 Core IP69K Subject to change without notice... -
Page 50: Dimensional Drawings
S in mm 1131 1116 1231 1216 O P E R A T I N G I N S T R U C T I O N S | deTem4 Core IP69K 8021559/1DAL/2022-10-27 | SICK Subject to change without notice... -
Page 51: Ordering Information
M4C-SB0340LA10 1089980 M4C-EB03400A10 1089981 M4C-SB0430LA10 1089982 M4C-EB04300A10 8021559/1DAL/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTem4 Core IP69K Subject to change without notice... -
Page 52: Spare Parts
Protective housing spare part, deTem IP69K 2096395 2096396 2096397 O P E R A T I N G I N S T R U C T I O N S | deTem4 Core IP69K 8021559/1DAL/2022-10-27 | SICK Subject to change without notice... -
Page 53: Accessories
Figure 24: Dimensional drawing of the reinforced stainless steel bracket, rotatable (2026850) 8021559/1DAL/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTem4 Core IP69K Subject to change without notice... - Page 54 Stainless steel bracket, rotatable Figure 25: Dimensional drawing of the stainless steel bracket, rotatable (2023708) O P E R A T I N G I N S T R U C T I O N S | deTem4 Core IP69K 8021559/1DAL/2022-10-27 | SICK...
-
Page 55: Connectivity
8021559/1DAL/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTem4 Core IP69K Subject to change without notice... -
Page 56: Change In Scanning Range Using Deflector Mirrors
Further topics • "Deflector mirrors", page 55 O P E R A T I N G I N S T R U C T I O N S | deTem4 Core IP69K 8021559/1DAL/2022-10-27 | SICK Subject to change without notice... -
Page 57: Device Columns
Test rod 30 mm 2022602 Test rod holder 2052249 8021559/1DAL/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTem4 Core IP69K Subject to change without notice... -
Page 58: Annex
IEC 61496-3 GB 19436.3 IEC 61508 GB/T 20438 O P E R A T I N G I N S T R U C T I O N S | deTem4 Core IP69K 8021559/1DAL/2022-10-27 | SICK Subject to change without notice... - Page 59 ISO 13849-1 GB/T 16855.1 ISO 13855 GB/T 19876 8021559/1DAL/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTem4 Core IP69K Subject to change without notice...
-
Page 60: Checklist For Initial Commissioning And Commissioning
O P E R A T I N G I N S T R U C T I O N S | deTem4 Core IP69K 8021559/1DAL/2022-10-27 | SICK... -
Page 61: List Of Figures
26. Dimensional drawing of the stainless steel supporting bracket (2026849)..55 8021559/1DAL/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTem4 Core IP69K Subject to change without notice... -
Page 62: List Of Tables
26. Ordering information, test rods..................57 27. Note on standards...................... 58 O P E R A T I N G I N S T R U C T I O N S | deTem4 Core IP69K 8021559/1DAL/2022-10-27 | SICK Subject to change without notice... - Page 63 LIST OF TABLES 8021559/1DAL/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTem4 Core IP69K Subject to change without notice...
