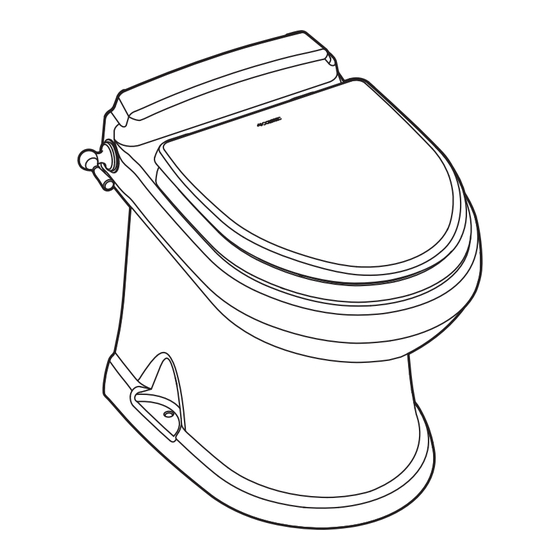

- Page 1 SANITATION TOILETS 9300/9400/9500 9000 Series Installation Manual...
-
Page 2: Table Of Contents
18 13128 St. Rte. 226 Big Prairie, OH 44611 Form No. 600347473 06/18 | ©2018 Dometic Corporation Read these instructions carefully. These instructions MUST stay with this product. CONTENTS Explanation of symbols and safety instructions........3 General information . -
Page 3: Explanation Of Symbols And Safety Instructions
Toilets EXPLANATION OF SYMBOLS AND SAFETY INSTRUCTIONS This manual has safety information and instructions to help you eliminate or reduce the risk of accidents and injuries. Recognize safety information This is the safety alert symbol. It is used to alert you to potential physical injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death. -
Page 4: General Information
Toilets – Valves must be full-bore valves of marine sanitation quality. Do not use screw-to-close gate valves. – Flexible hoses must be of marine sanitation quality and must be secured to any fittings with two stainless steel, worm-drive, hose-band clamps at each connection. Check connections frequently for integrity. -
Page 5: Intended Use
Toilets INTENDED USE The 9000 Series RushFlush toilets are designed and intended for use inside the boat for which it is supplied. RushFlush toilets are not intended for use with a raw water or seawater flush system. Use the instructions to ensure correct operation of the toilet. Dometic accepts no liability for damage in the following cases: •... - Page 6 Potable water pressure tank** 150 PSI (1034 kPa) working pressure rating Electric flush switch Dometic model *Horizontal discharge plumbing must drop a minimum of 1/8" (3 mm) per foot (30.5 cm) of horizontal run. ** Purchased separately. Water pump may be part of vessel’s potable water system.
- Page 7 Toilets Dimensions 9300 Series 9400 Series 9500 Series Reference 9300 Series 9400 Series 9500 Series 19" 19" 19" 16.5"* 14" 14.75" 21.5" 21.5" 22" 17.5" 17.5" 17.5" 17" 17" 17.5" 10.5" 10.5" 10.5" 33.5" 33.5" 37" *Width measurement includes flush handle...
-
Page 8: Prepare For Installation
Toilets OK TO FLUSH DO NOT FLUSH Touch Panel Flush Switch (DFS) Touchpad (DFT) Reference (DFSHW) (Figure 7) (Figure 8) (Figure 9) 3" 2" 3" 3.4" 3.25" 3.4" .4" 0.4375" .4” PREPARE FOR INSTALLATION Failure to obey the following warnings could result in property damage, serious injury, or death: •... - Page 9 Toilets Understanding requirements for the fresh-water system 5-Gallon Switch/Status Panel Potable Water Pressure Pressure Tank Rim Water (30/50 PSI) Gauge Supply Line Toilet 1" Pump (0–100 PSI) Inlet Strainer (40 mesh) Check Electric High-flow Lower Bowl Water High-flow Maintenance Valve Water Jet Valve Supply Line Water Pump...
- Page 10 Toilets Electric rim wash valve guidelines (inside toilet) • 1/2" NPT connection • 1/2" plumbing to the toilet. If using a single water supply line, this 1/2" branch must intersect with the main 1" distribution line prior to the electric high-flow water valve. Electric high-flow water jet valve guidelines •...
- Page 11 Toilets Planning the electrical connections (Models 9400 and 9500) Plan the switch/status panel location, if applicable, so that the wiring cable and connections are installed in locations that always remain dry. Use the length of the provided wiring cable to help space the electrical connections at the proper distance from the toilet.
- Page 12 Toilets Overall Bowl Width Wall 2" Rear Corner of Bowl 6" 4" 3.25" 1.5" 10.5" 1.5" 14" (Floor) Floor 4.25" Reference Name Discharge flange access hole Upper rim water supply line and electrical wire access hole Lower bowl water supply line access hole Primary centerline Secondary centerline Through-the-wall method...
- Page 13 Toilets Marking the locations (applicable to both methods) ➤ Position the bowl in the designated toilet location. ➤ Confirm that adequate clearance exists for the seat and lid to open freely and (for 9300 series only) the flush handle to operate easily on the left side of the toilet. ➤...
-
Page 14: Installation
Toilets INSTALLATION Installing the toilet with through-the-floor connections Toilet (Rear) #14 x 1-1/2" Mounting Screw Bolt Location Washer Discharge Outlet Discharge Sealing Floor Flange Grommet Sealing Grommet ➤ Carefully lower the toilet, keeping it level, ➤ Turn the electrical power OFF. until the toilet discharge outlet slides into ➤... - Page 15 Toilets Finalizing the installation Lower Bowl Water Supply Line Flush Touchpad Switch Wiring Upper Rim Water Supply Line Ethernet Ethernet Cable Cable Flush switch (9400/9500)/system status ➤ Route a 1/2" ID upper rim water supply panel (optional 9300) installation line through the access hole. Use a 1/2"...
- Page 16 Toilets Control Toilet Module (Rear) Toilet (Rear) Lower Bowl Water Supply Line Upper Wiring Switch Rim Water Connector Supply Line Sealing Grommet ➤ Connect the discharge plumbing ➤ Remove the control module from the from the holding tank to the discharge inside and back of the toilet.
- Page 17 Toilets Adjusting the water consumption settings Toilet (Rear) Control Module – – ➤ Locate the water control module at the inside and rear of the toilet. ➤ Turn the rim and/or lower water jet control knobs to adjust the flow time for each area.
-
Page 18: Disposal
For the Authorized Service Center near you, call between 8:00 a.m. and 5:00 p.m. (ET), Monday through Friday, or contact the nearest Parts Distributor. Telephone: 1 800-321-9886 U.S.A. and Canada 330-439-5550 International 330-496-3097 U.S.A. and Canada Fax: 330-439-5567 International Website: www.dometic.com...
