Dometic 9500 Installation Instructions Manual
  1. Manuals
  2. Brands
  3. Dometic Manuals
  4. Automobile Accessories
  5. 9500 Series
  6. Installation instructions manual

Dometic 9500 Installation Instructions Manual

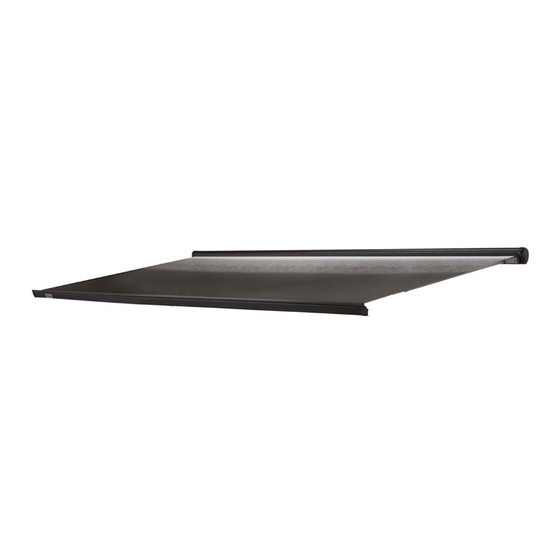

Cassette awning
Hide thumbs Also See for 9500:
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

USA
SERVICE OFFICE
Dometic, LLC
2320 Industrial Parkway
Elkhart, IN 46516
574-294-2511
CANADA
Dometic, LLC
46 Zatonski, Unit 3
Brantford, ON N3T 5L8
CANADA
519-720-9578
For Service Center
Assistance Call:
800-544-4881
INSTALLATION
INSTRUCTIONS
3313873.048
REVISION
Form No. 3313873.048 04/11
(Replaces 3313873.030)
(French 3313874.012)
©2011 Dometic, LLC
LaGrange, IN 46761
This manual must be read and
understood before installation,
adjustment, service, or mainte-
nance is performed. This unit must
be installed by a qualified service
technician. Modification of this
product can be extremely hazard-
ous and could result in personal
injury or property damage.
Important:
stay with unit. Owner read carefully.
RECORD THIS INFORMATION FOR FUTURE
REFERENCE:
Model Number
Serial Number
Date Purchased
Retailer / Qualified Installer
9500
CASSETTE
AWNING
AVERTISSEMENT
!
Lire et comprendre ce manuel avant de
procéder à l'installation, à des réglages,
de l'entretien ou des réparations.
L'installation de ce produit doit être
effectuée par un réparateur qualifié.
Toute modification de ce produit peut
être extrêmement dangereuse et
entraîner des blessures ou dommages
matériels.
20008(XX).000(#)
20010(XX).000(#)
20012(XX).000(#)
20013(XX).000(#)
20015(XX).000(#)
20016(XX).000(#)
These Instructions must
MODEL
