Summary of Contents for Mountup MU0006

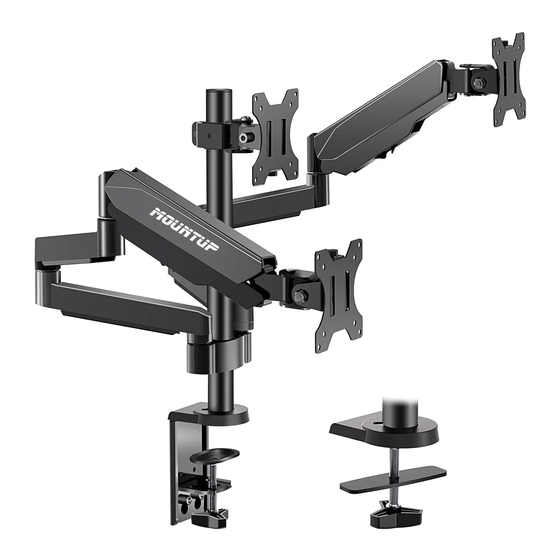

- Page 1 Triple Monitor Counterbalance Desk Mount Instruction Manual MU0006 75x75 27" 100x100 (1~8kg)x3 (2.2~17.6lbs)x3 If you have any questions , please contact us. V9.0...
-
Page 2: Package Contents
WARNING! If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product, please contact us. Before starting assembly, verify all parts are included and undamaged. Improper installation may cause damage or weight capacity. -
Page 3: Assembly Steps
ASSEMBLY STEPS STEP 1: Clamp Installation OR Grommet Base Installation OPTION A: Clamp Installation Loosen Bolts (B5) by using 6mm Allen Key (N), then lift clip plate (B2), bottom plate (B3), and bolt Y (B4) a little to release them from bracket (B1). Mount bracket (B1) to pole(F) using bolts (I). - Page 4 STEP 1: (Continued) OPTION B: Grommet Base Installation Use 6mm allen key(N) to detach the bolt(B5), clip plate(B2),bottom plate(B3) and bolt Y(B4) from clamp(B). Install the grommet base plate(K) to the pole (F) using bolt (I). Install pole(F) with bolt Y(B4) and support plate(J). Tighten bolt Y (B4) or by using 6mm allen key (N).
-
Page 5: Step 2 : Arm Installation
STEP 2 : Arm Installation Install the middle head(E), wire clip(G) and swivel arm(A) to the pole. Fasten the bolt with supplied 6mm Allen key (N) Just tighten the bolt, do not over tighten it in case the cast aluminum part could be damaged. - Page 6 STEP 3 : Attach Monitor OPTION A: Flat Back Monitor Attach the VESA plate (D) to back of monitor and secure with screws(M-A)or(M-C) with washers(M-E) using 6 mm Allen Key (N). Avoid excessive tightening screws damage the monitor. OPTION B: Curved Back Monitor Attach the VESA plate (D) to back of monitor and secure with screws (M-B) or (M-D) with washers (M-E)and washers(M-F)using 6 mm Allen Key (N).
- Page 7 STEP 4 : Hang Monitor Slide the monitors onto the head of swivel arm.Install the security bolt (H). Make sure the security bolt is installed before you rotate the monitor. Important Notice: The gas spring tension is pre-set to the weakest level by default, please hold your monitor by both hands and do not let go so soon after the VESA plate is attached to the swivel arm.
-
Page 8: Step 5 : Adjust Tension
STEP 5 : Adjust Tension tension in gas spring arm (A) using 6 mm Allen Key (N). CAUTION Note1: Be sure to keep the arm in horizontal position during adjustment. After being attached to the arm, the monitor falls down and can not stay at the desired height by itself. -
Page 9: Step 6 : Cable Management
STEP 6 : Cable Management Remove bottom plastic covers from gas spring arm (A) .Run cables from monitor through bottom of gas spring arm (A). Reattach plastic covers as shown in diagram. - Page 10 Adjust as Desired ±90° ±90° ±180° +35° -35° Note: The total length of 3 monitors after arrayed can not be longer than 183cm. If necessary, refer to above illustrations to adjust the level of tightness of the arms. DESK DESK Pay attention while clamp install !
-
Page 11: Product Dimensions
Product Dimensions ±90° ±180° ±180° ±90°... - Page 12 CAUTION AND MAINTENANCE: • Never allow children to climb, stand, hang, or play on any part of monitor or stand. • This product is intended for indoor use only. Using this product outdoors could lead to product failure and personal injury. •...
