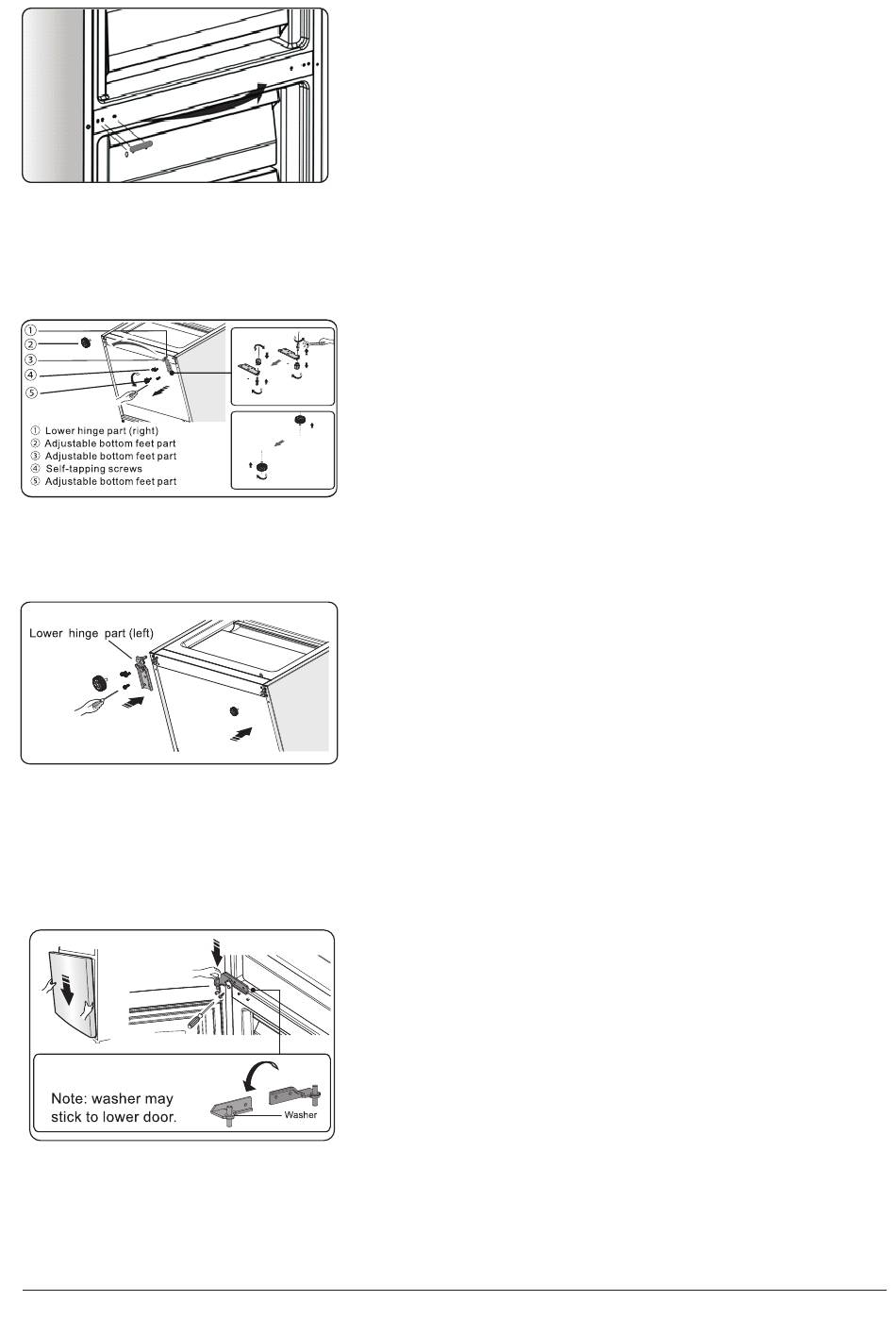

10. Move the screw hole covers located on the middle
plate from left to right (as shown in the picture
below).
11. Place the refrigerator on foam packing material or
similar material.
12. Remove the fitting (3) from the bottom hinge, loosen
the bottom hinge, change it to the reverse position
and then tighten it in place, then install the fitting (3)
from the bottom hinge.
13. Replace the items you reinstalled in step 11, install
the bottom hinge fitting (1) on the left side and
secure it with the special screws (4).
Insert the fitting (2) last.
14. Carefully slide the lower door onto the pin of the
lower hinge and hold it in place. Turn the middle
hinge 180°, change the washer on the shaft on the
underside, adjust the middle hinge to the proper
position, and then install it ensuring the bottom
door is properly positioned.
