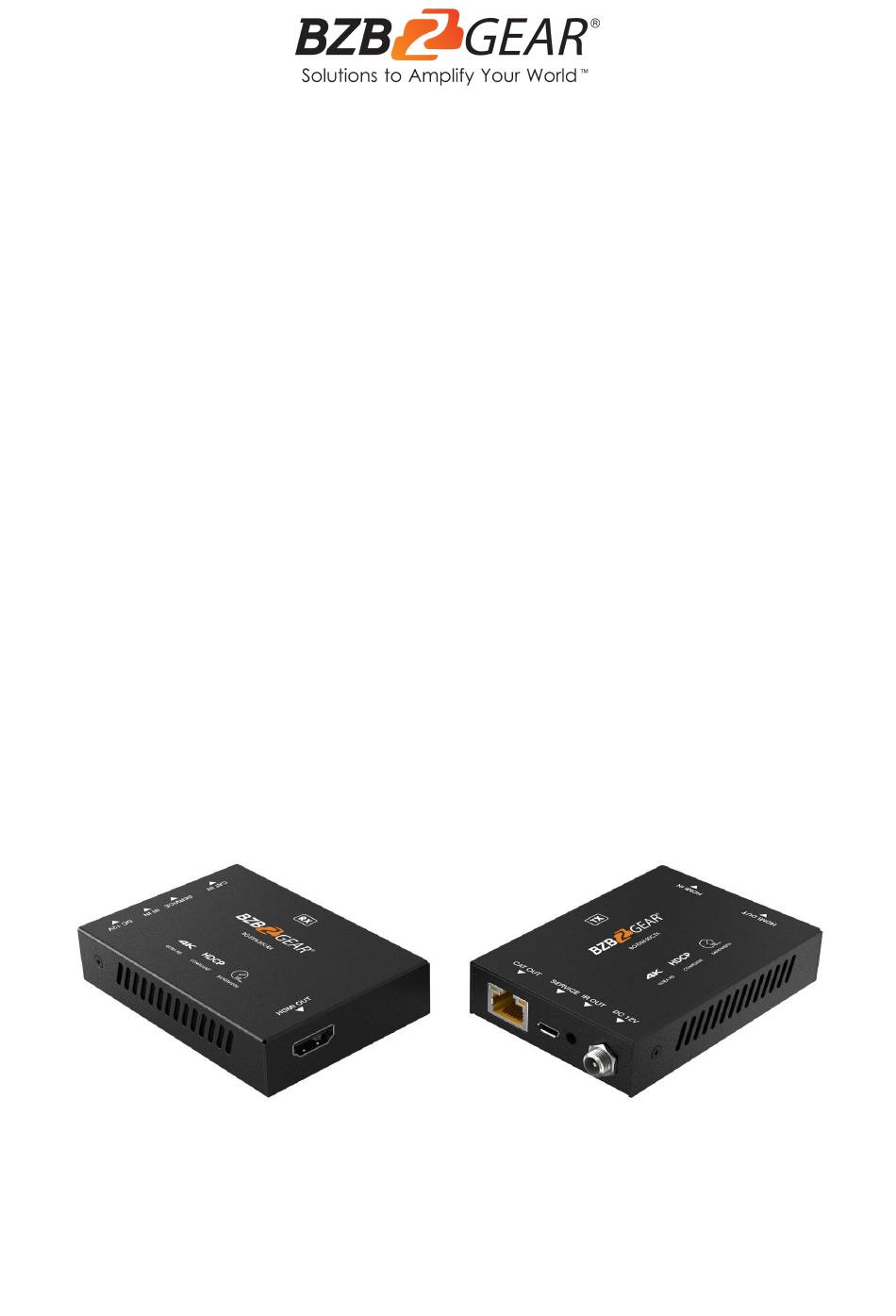

- Page 1 BG-EXH-50C 4K 18Gbps UHD HDMI Extender Over Category 5e/6/7 Cable with Single Directional IR up to 165ft User Manual...
- Page 2 BZBGEAR BG-EXH-50C PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 3: Table Of Contents
BZBGEAR BG-EXH-50C PRODUCT MANUAL TABLE OF CONTENTS Statement Safety Precaution Introduction Features Packing List Technical Specifications Operation Controls and Functions IR Cable Pin Assignment Application Example Tech Support Warranty Mission Statement Copyright · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 4: Statement
● This product does not contain parts that can be maintained or repaired by users. Damage caused by dismantling the product without authorization from BZBGEAR is not covered under the warranty policy. ● Installation and use of this product must strictly comply with local electrical safety standards. -
Page 5: Introduction
BZBGEAR BG-EXH-50C PRODUCT MANUAL Introduction The BZB-EXH-50C can extend high definition video / audio signal and one-way IR, and the distance is up to 164ft / 50 meters between transmitter and receiver over a single Cat5e/6/7 cable. It supports resolution up to 4K2K@60Hz 4:4:4, 18Gbps and HDCP 2.2. In addition, the extender is equipped with one-way IR pass-through which allows for source control and one HDMI loop output. -
Page 6: Technical Specifications
BZBGEAR BG-EXH-50C PRODUCT MANUAL Technical Specifications Technical HDMI Compliance HDMI 2.0 HDCP Compliance HDCP 2.2 / HDCP 1.4 Video Bandwidth 18Gbps Video Resolution Up to 4K@60Hz 4:4:4 Color Space RGB / YCbCr 4:4:4, YCbCr 4:2:2/4:2:0, YUV 4:4:4 Color Depth 8/10/12-bit (1080P@60Hz, 4K@30Hz, 4K@60Hz YCbCr 4:2:2/4:2:0) -
Page 7: Operation Controls And Functions
BZBGEAR BG-EXH-50C PRODUCT MANUAL Operation Controls and Functions Transmitter Panel Number Name Function description CAT OUT Connect to CAT IN port on the receiving end with a CAT6 cable. SERVICE port For firmware updated use. IR OUT Connect to wideband IR Blaster cable. The IR signal is from the IR IN port of the receiver. - Page 8 BZBGEAR BG-EXH-50C PRODUCT MANUAL Receiver Panel Number Name Function description CAT IN Connect to CAT OUT port on the transmitter end with a CAT6 cable. SERVICE port For firmware updated use. Connect to wideband IR Receiver cable. The IR signal will send to the IR OUT port of the IR IN transmitter.
-
Page 9: Ir Cable Pin Assignment
BZBGEAR BG-EXH-50C PRODUCT MANUAL IR Cable Pin Assignment IR Receiver and Blaster pin’s definition as below: The following is IR system diagram about IR cable use method. Note: IR remote sends signal distance for 0~5 meters / 0~8 meters, and angle is plus-minus 45 degrees / vertical direction. -
Page 10: Application Example
BZBGEAR BG-EXH-50C PRODUCT MANUAL Application Example · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 11: Tech Support
1.888.499.9906 support@bzbgear.com bzbgear.com Warranty BZBGEAR Pro AV products and cameras come with a three-year warranty. An extended two-year warranty is available for our cameras upon registration for a total of five years. For complete warranty information, please visit bzbgear.com/warranty. For questions, please call 1.888.499.9906 or email support@bzbgear.com. -
Page 12: Copyright
PRODUCT MANUAL Copyright All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual contains no guarantee, standpoint expression or other implies in any form. Product specification and information in this manual is for reference only and subject to change...
