BG-EXH-8KF
48Gbps HDMI 2.1 over FIBER Extender (300m)
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BG-EXH-8KF and is the answer not in the manual?

Questions and answers

Related Manuals for BZBGEAR BG-EXH-8KF

Summary of Contents for BZBGEAR BG-EXH-8KF

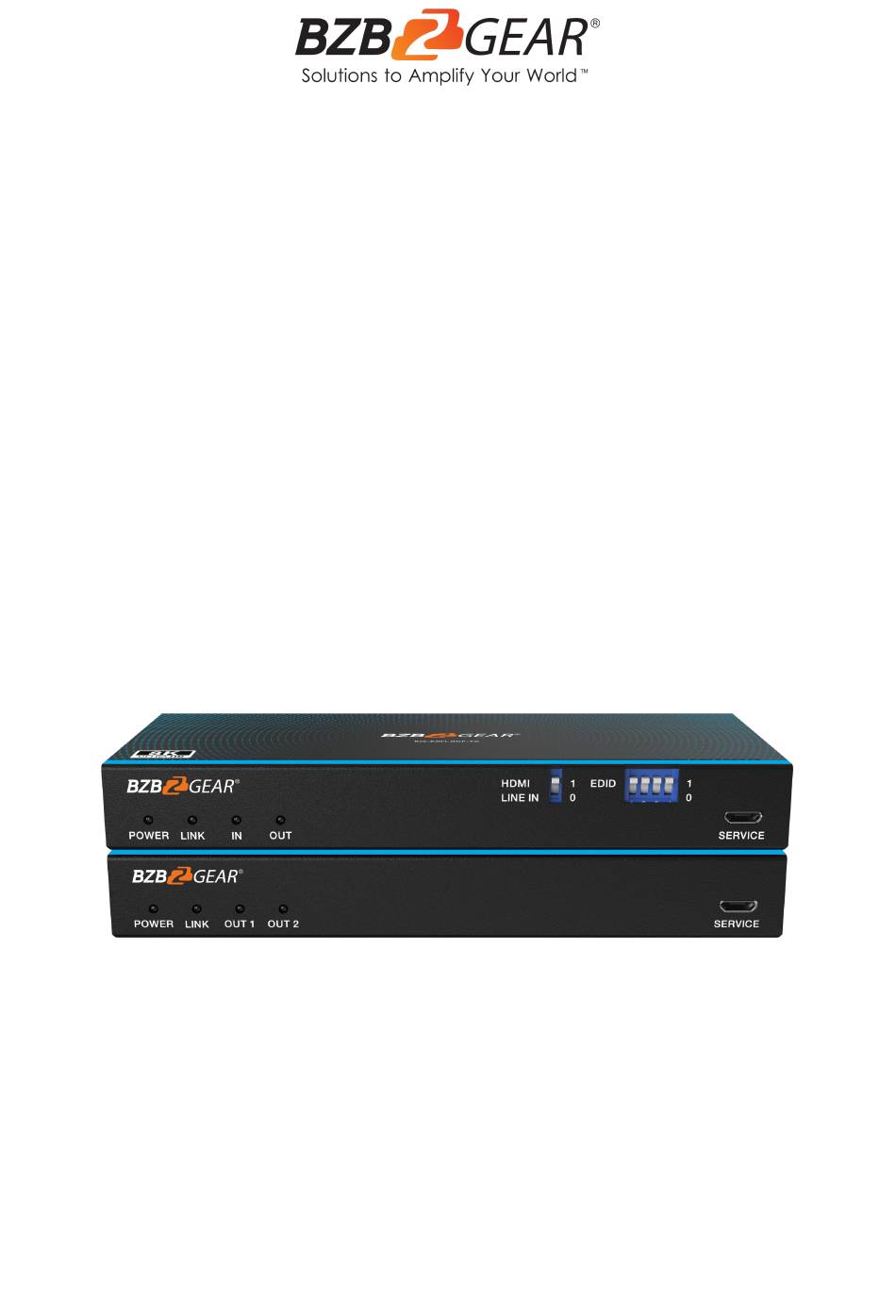

  • Page 1 BG-EXH-8KF 48Gbps HDMI 2.1 over FIBER Extender (300m) User Manual...
  • Page 2 BZBGEAR BG-EXH-8KF PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...

  • Page 3: Table Of Contents

    BZBGEAR BG-EXH-8KF PRODUCT MANUAL Statement Safety Precaution Surge protection device recommended Introduction Features Packing List Specifications Operation Controls and Functions IR PIN Definition Connection Diagram Troubleshooting Tech Support Warranty Mission Statement Copyright · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...

  • Page 4: Statement

    ● This product does not contain parts that can be maintained or repaired by users. Damage caused by dismantling the product without authorization from BZBGEAR is not covered under the warranty policy. ● Installation and use of this product must strictly comply with local electrical safety standards.

  • Page 5: Introduction

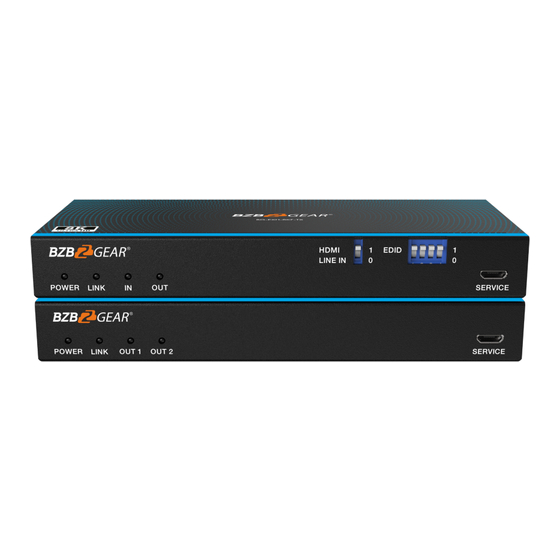

    PRODUCT MANUAL Introduction The BG-EXH-8KF consists of transmitter and receiver modules that can extend HDMI 2.1 video and audio signals up to 300m/984ft using an OM4 fiber optic cable. It supports video resolutions up to 8K@60Hz 4:2:0 or 4K@120Hz 4:4:4. Additionally, it features Auto Low Latency and Variable Refresh Rate, along with 16 EDID presets.

  • Page 6: Specifications

    BZBGEAR BG-EXH-8KF PRODUCT MANUAL Specifications Technical HDMI Compliance HDMI 2.1 HDCP Compliance HDCP 2.3 Video Bandwidth 48Gbps FRL and 18Gbps TMDS Video Resolution Up to 8K@60 4:2:0 12-bit, 4K@120Hz 4:4:4 12-bit Color Space RGB 4:4:4, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0 Color Depth...
  • Page 7 BZBGEAR BG-EXH-8KF PRODUCT MANUAL Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F Relative Humidity 20~90% RH (non-condensing) Recommended HDMI Cable Video 4K60 4K24 1080P Resolution HDMI Cable 3m/10ft 8m/26ft 12m/39ft 15m/49ft Length (Ultra HDMI (HDMI in / 2.1) out) The use of “Premium High-Speed HDMI”...

  • Page 8: Operation Controls And Functions

    BZBGEAR BG-EXH-8KF PRODUCT MANUAL Operation Controls and Functions Front and Rear Panel Name Function POWER LED The red LED is on when the transmitter is powered on. Connection signal indicator ● On: Transmitter and Receiver are connected and the LINK LED signal is detected.
  • Page 9 BZBGEAR BG-EXH-8KF PRODUCT MANUAL [DIP]=1111: Copy sink EDID from HDMI OUT1 port on RX (default) [DIP]=1110: 1080P, 2.0CH [DIP]=1101: 1080P, 5.1CH [DIP]=1100: 1080P, 7.1CH [DIP]=1011: 4K60(444)_HDR, 2.0CH [DIP]=1010: 4K60(444)_HDR, 5.1CH [DIP]=1001: 4K60(444)_HDR, 7.1CH [DIP]=1000: 4K120(420)_HDR, 2.0CH [DIP]=0111: 4K120(420)_HDR, 5.1CH [DIP]=0110: 4K120(420)_HDR, 7.1CH [DIP]=0101: FRL10G_8K_HDR, 2.0CH...
  • Page 10 BZBGEAR BG-EXH-8KF PRODUCT MANUAL Name Function Description POWER LED The red LED is on when the receiver is powered on. Connection signal indicator. LINK LED On: Transmitter and Receiver are connected and the signal is ▪ detected. Blinking: Transmitter and Receiver are connected but no signal ▪...

  • Page 11: Ir Pin Definition

    BZBGEAR BG-EXH-8KF PRODUCT MANUAL IR PIN Definition · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...

  • Page 12: Connection Diagram

    BZBGEAR BG-EXH-8KF PRODUCT MANUAL Connection Diagram · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...

  • Page 13: Troubleshooting

    BZBGEAR BG-EXH-8KF PRODUCT MANUAL Troubleshooting Problems Causes Solutions No Power / All LED off Power supply not connected, Check if the power supply is connected fully, or wrong power connected correctly and the supply. output voltage value is within recommended specifications.

  • Page 14: Tech Support

    1.888.499.9906 support@bzbgear.com bzbgear.com Warranty BZBGEAR Pro AV products and cameras come with a three-year warranty. An extended two-year warranty is available for our cameras upon registration for a total of five years. For complete warranty information, please visit bzbgear.com/warranty. For questions, please call 1.888.499.9906 or email support@bzbgear.com.

  • Page 15: Mission Statement

    AVoIP, professional broadcasting, conferencing, home theater, to live streaming solutions. We pride ourselves on unparalleled customer support and services. Our team offers system design consultation, and highly reviewed technical support for all the products in our catalog. BZBGEAR delivers quality products designed with users in mind. ·...

  • Page 16: Copyright

    PRODUCT MANUAL Copyright All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual contains no guarantee, standpoint expression or other implies in any form. Product specification and information in this manual is for reference only and subject to change...
