Summary of Contents for BZBGEAR BG-USB-MR80

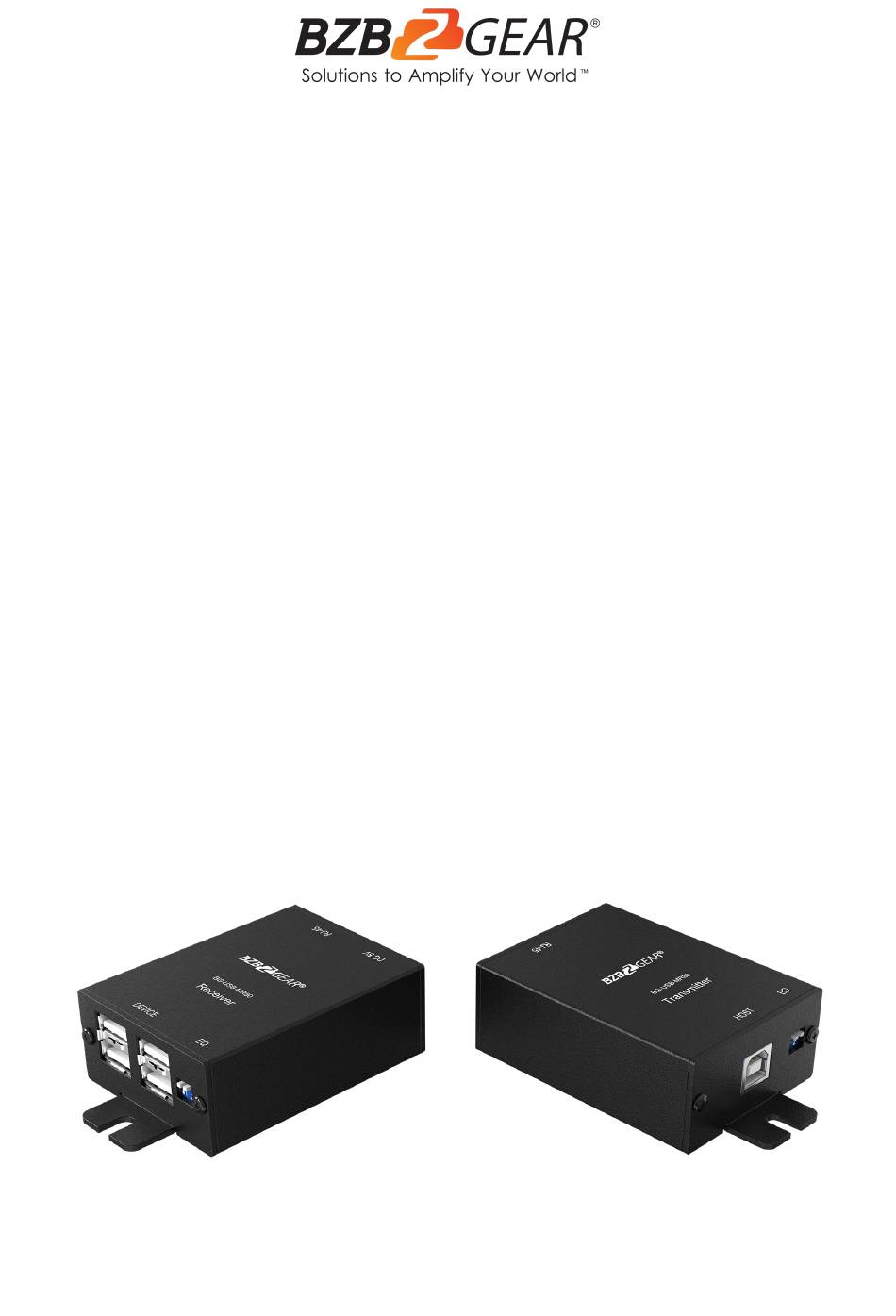

- Page 1 BG-USB-MR80 4-Port USB 2.0 Extender up to 260ft User Manual...
- Page 2 BZBGEAR BG-USB-MR80 PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 3: Table Of Contents
BZBGEAR BG-USB-MR80 PRODUCT MANUAL TABLE OF CONTENTS Statement Safety Precaution Introduction Features Packing List Technical Specifications Operation Controls and Functions Application Example Tech Support Warranty Mission Statement Copyright · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906... -
Page 4: Statement
● This product does not contain parts that can be maintained or repaired by users. Damage caused by dismantling the product without authorization from BZBGEAR is not covered under the warranty policy. ● Installation and use of this product must strictly comply with local electrical safety standards. -
Page 5: Introduction
PRODUCT MANUAL Introduction The BG-USB-MR80 is a USB 2.0 that extends USB devices up to 264 feet (80 meters) over a single category cable. The extender consists of two units, a transmitter and a receiver. The transmitter connects to the PC and the receiver connects to the peripheral device, such as USB printers, cameras, Storage devices, Card-Readers, and more. -
Page 6: Technical Specifications
BZBGEAR BG-USB-MR80 PRODUCT MANUAL Technical Specifications Technical Transmitter Receiver USB compliance USB 2.0 high speed compliant Bandwidth Up to 480 Mbit/s USB over UTP Up to 264 feet (80 meters) transmission Signal Equalization 2-pin dip switch at TX & RX ESD protection [1] Human body model —... -
Page 7: Operation Controls And Functions
BZBGEAR BG-USB-MR80 PRODUCT MANUAL Operation Controls and Functions Transmitter Panel 1. USB Type-B: Connect to a USB host device. 2. 2-Pin Dip Switch: Use the dip switch to adjust equalization level to control transmission distances EQ1(strongest) - EQ3(weakest). DIP Switch Position Description ON [⬇]... -
Page 8: Application Example
BZBGEAR BG-USB-MR80 PRODUCT MANUAL Receiver Panel 3. USB 2.0 Type-A x2: Connect to USB 2.0 Devices. 4. USB 2.0 Type-A x2: Connect to USB 2.0 Devices. 5. 2-Pin Dip Switch: Use the dip switch to adjust equalization level to control transmission distances EQ1(strongest) - EQ3(weakest). -
Page 9: Tech Support
Tech Support Have technical questions? We may have answered them already! Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and tips regarding our products. Here you will find our Knowledge Base (bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step troubleshooting instructions. -
Page 10: Warranty
BZBGEAR BG-USB-MR80 PRODUCT MANUAL Warranty BZBGEAR Pro AV products and cameras come with a three-year warranty. An extended two-year warranty is available for our cameras upon registration for a total of five years. For complete warranty information, please visit bzbgear.com/warranty. -
Page 11: Mission Statement
AVoIP, professional broadcasting, conferencing, home theater, to live streaming solutions. We pride ourselves on unparalleled customer support and services. Our team offers system design consultation, and highly reviewed technical support for all the products in our catalog. BZBGEAR delivers quality products designed with users in mind. ·... -
Page 12: Copyright
PRODUCT MANUAL Copyright All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual contains no guarantee, standpoint expression or other implies in any form. Product specification and information in this manual is for reference only and subject to change...
