Summary of Contents for BZBGEAR BG-EXH-70C3

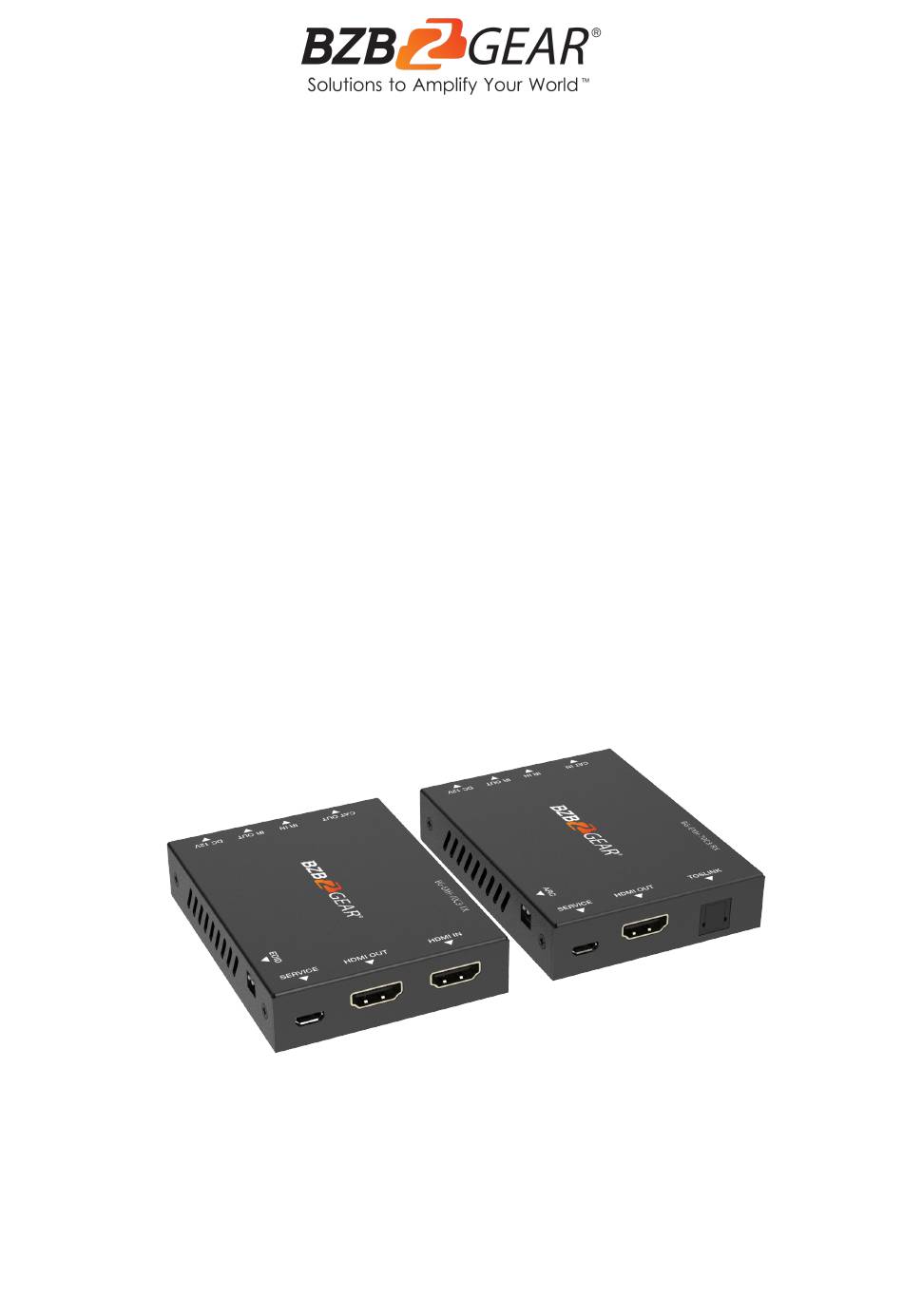

- Page 1 BG-EXH-70C3 18Gbps HDMI Extender (70m) with PoC User Manual...
- Page 2 BZBGEAR BG-EXH-70C3 PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 3: Table Of Contents
BZBGEAR BG-EXH-70C3 PRODUCT MANUAL TABLE OF CONTENTS Statement Safety Precaution Introduction Features Packing List Specifications Operation Controls and Functions Transmitter Panel Receiver Panel IR Pin Definition Application Example Tech Support Warranty Mission Statement Copyright · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 4: Statement
● This product does not contain parts that can be maintained or repaired by users. Damage caused by dismantling the product without authorization from BZBGEAR is not covered under the warranty policy. ● Installation and use of this product must strictly comply with local electrical safety standards. -
Page 5: Introduction
PRODUCT MANUAL Introduction The BG-EXH-70C3 is an 18Gbps HDMI extender that extends HDMI HD, and IR control signals to a distance of up to 230ft / 70m via a single CAT6/6a cable. The uncompressed, long-distance transmission between the transmitter and receiver is achieved with zero-delay. -
Page 6: Specifications
BZBGEAR BG-EXH-70C3 PRODUCT MANUAL Specifications Technical HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2 Video Bandwidth 18Gbps Video Resolution Up to 4K2K@60Hz RGB/YCBCR 4:4:4 IR Level 5Vp-p IR Frequency Wideband 20K-60KHz Transmission Distance 4K2K@60Hz 4:4:4--70m, 1080P--70m (CAT6/6a cable) Color Space... -
Page 7: Operation Controls And Functions
BZBGEAR BG-EXH-70C3 PRODUCT MANUAL Operation Controls and Functions RANSMITTER ANEL Name Function Description SERVICE Firmware update port. HDMI OUT HDMI signal loop output port. Connect to the HDMI display devices using an HDMI cable. HDMI IN HDMI signal input port. Connect to the HDMI source device using an HDMI cable. -
Page 8: Receiver Panel
BZBGEAR BG-EXH-70C3 PRODUCT MANUAL ECEIVER ANEL Name Function Description SERVICE Firmware update port. HDMI OUT HDMI signal output port. Connect to the HDMI display devices using an HDMI cable. TOSLINK Optical fiber audio output port. Connect to the amplifier, receiver, or speaker with an optical cable. -
Page 9: Ir Pin Definition
BZBGEAR BG-EXH-70C3 PRODUCT MANUAL IR P EFINITION IR Receiver and Blaster Descriptions: Note: When the angle between the IR receiver and the remote control is ± 45 °, the transmission distance is 0-5 meters. When the angle between the IR receiver and the remote control is ± 90 °, the transmission distance is 0-8 meters. -
Page 10: Application Example
BZBGEAR BG-EXH-70C3 PRODUCT MANUAL Application Example · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 11: Tech Support
Warranty BZBGEAR Pro AV products and cameras come with a three-year warranty. An extended two-year warranty is available for our cameras upon registration for a total of five years. For complete warranty information, please visit BZBGEAR.com/warranty. For questions, please call 1.888.499.9906 or email support@bzbgear.com. -
Page 12: Copyright
PRODUCT MANUAL Copyright All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual contains no guarantee, standpoint expression or other implies in any form. Product specification and information in this manual is for reference only and subject to change without notice.
