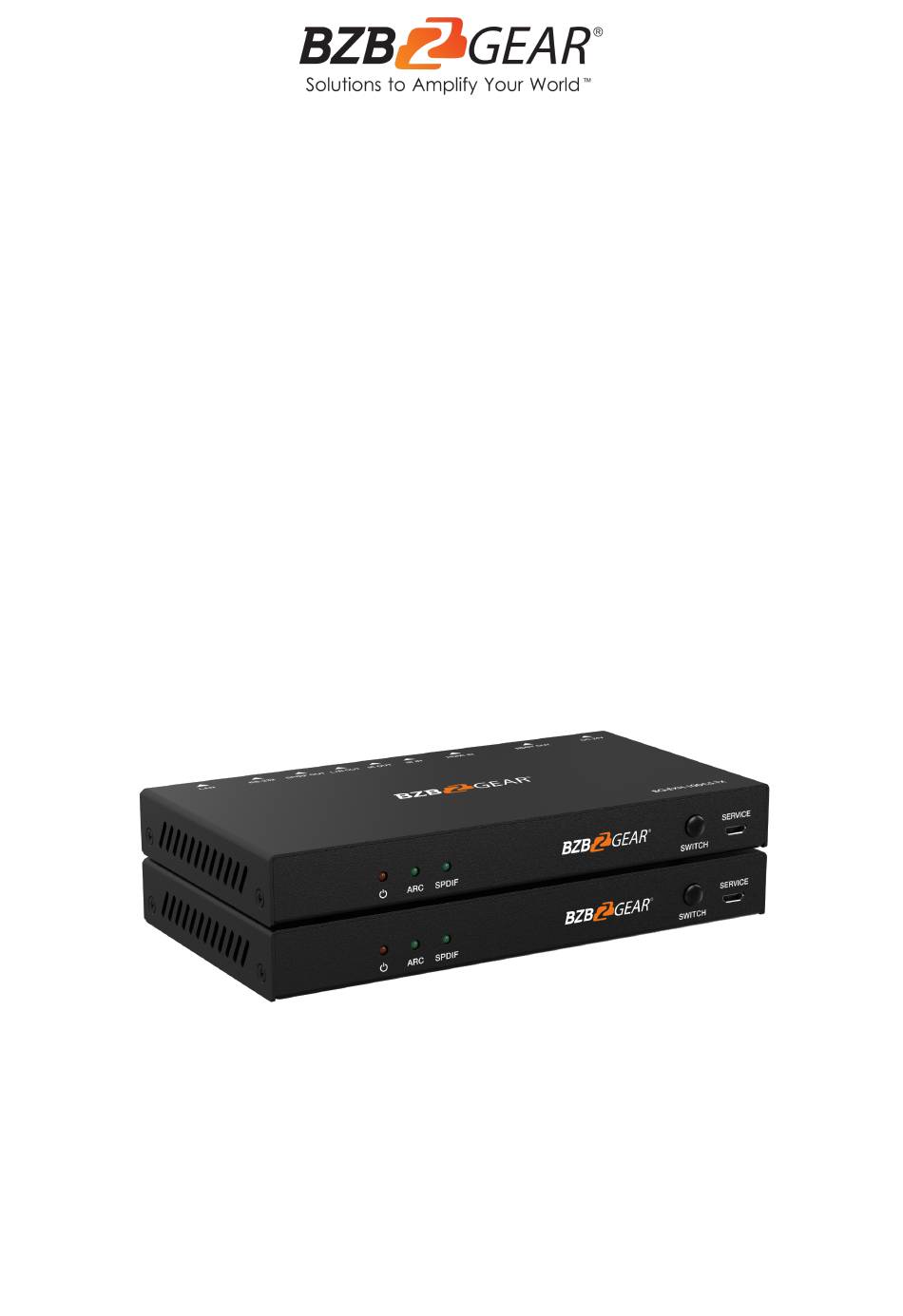

- Page 1 BG-EXH-100C5 18Gbps HDMI over HDBaseT Extender with Bi-directional IR (100M) User Manual...
- Page 2 BZBGEAR BG-EXH-100C5 PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 3: Table Of Contents
BZBGEAR BG-EXH-100C5 PRODUCT MANUAL TABLE OF CONTENTS Statement Safety Precaution Introduction Features Packing List Specifications Operation Controls and Functions Transmitter Panel Receiver Panel Audio Signal Output Switching IR and Blaster Pin Definition IR System Diagram Regarding IR Cable use Method... -
Page 4: Statement
● This product does not contain parts that can be maintained or repaired by users. Damage caused by dismantling the product without authorization from BZBGEAR is not covered under the warranty policy. ● Installation and use of this product must strictly comply with local electrical safety standards. -
Page 5: Introduction

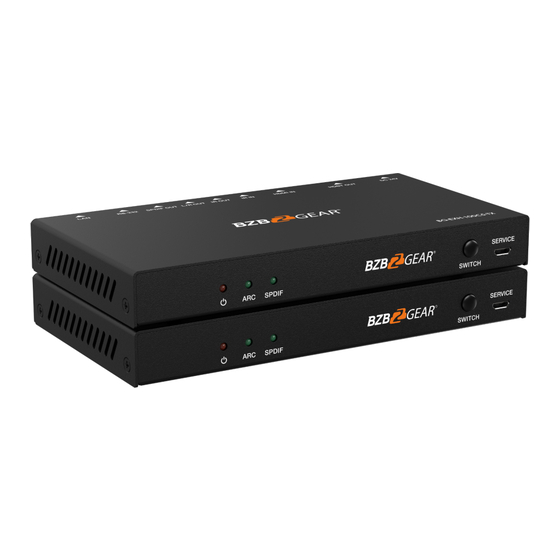

PRODUCT MANUAL Introduction The BG-EXH-100C5 is an 18Gbps HDMI extender that extends high-definition audio / video, RS-232, bi-directional IR, and internet signals to a distance of up to 328ft / 100 meters between the transmitter and receiver using a single CAT6/6a cable. Featuring video resolution up to 4K2K@60Hz 4:4:4 and Power over Cable. -
Page 6: Specifications
BZBGEAR BG-EXH-100C5 PRODUCT MANUAL Specifications Technical HDCP Compliance HDCP 2.2 / 1.x Video Bandwidth 18Gbps 4K2K 50/60Hz 4:4:4 4K2K 50/60Hz 4:2:2 4K2K 50/60Hz 4:2:0 Video Resolution 4K2K 30Hz 4:4:4 1080p, 1080i, 720p, 720i, 480p, 480i All PC resolutions including 1920 x 1200... - Page 7 BZBGEAR BG-EXH-100C5 PRODUCT MANUAL Technical HDCP Compliance HDCP 2.2 / 1.x Video Bandwidth 18Gbps 4K2K 50/60Hz 4:4:4 4K2K 50/60Hz 4:2:2 4K2K 50/60Hz 4:2:0 Video Resolution 4K2K 30Hz 4:4:4 1080p, 1080i, 720p, 720i, 480p, 480i All PC resolutions including 1920 x 1200 Storage Temperature -4 - 140°F / -20 - 60°C...
-
Page 8: Operation Controls And Functions
BZBGEAR BG-EXH-100C5 PRODUCT MANUAL Operation Controls and Functions Transmitter Panel Name Function Description The red LED will illuminate when the transmitter is on. The LED will be off when the transmitter is Power LED on standby. ARC LED The green LED will illuminate when the ARC function is turned on. -
Page 9: Receiver Panel
BZBGEAR BG-EXH-100C5 PRODUCT MANUAL Receiver Panel Name Function Description The red LED will illuminate when the receiver is on. The LED will be off when the receiver is on Power LED standby. ARC LED The green LED will illuminate when the ARC function is turned on. -
Page 10: Audio Signal Output Switching
BZBGEAR BG-EXH-100C5 PRODUCT MANUAL Audio Signal Output Switching Switch the output audio signal source for SPDIF OUT and L/R OUT port via the “SWITCH” button on the panel. The corresponding LED will illuminate. The ARC and SPDIF LED lights indicate the specific output audio signal source as shown in... -
Page 11: Ir And Blaster Pin Definition
BZBGEAR BG-EXH-100C5 PRODUCT MANUAL IR and Blaster Pin Definition Note: IR remote sends signal at a distance of 0~5 meters / 0~8 meters with an angle of ± 45° in vertical direction. · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 12: Ir System Diagram Regarding Ir Cable Use Method
BZBGEAR BG-EXH-100C5 PRODUCT MANUAL IR System Diagram Regarding IR Cable use Method Note: When the angle between the IR receiver and the remote control is ± 45 °, the transmission distance is 0-5 meters. When the angle between the IR receiver and the remote control is ± 90 °, the transmission distance is 0-8 meters. -
Page 13: Application Example
BZBGEAR BG-EXH-100C5 PRODUCT MANUAL Application Example · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 14: Tech Support
1.888.499.9906 support@bzbgear.com bzbgear.com Warranty BZBGEAR Pro AV products and cameras come with a three-year warranty. An extended two-year warranty is available for our cameras upon registration for a total of five years. For complete warranty information, please visit bzbgear.com/warranty. For questions, please call 1.888.499.9906 or email support@bzbgear.com. -
Page 15: Mission Statement
AVoIP, professional broadcasting, conferencing, home theater, to live streaming solutions. We pride ourselves on unparalleled customer support and services. Our team offers system design consultation, and highly reviewed technical support for all the products in our catalog. BZBGEAR delivers quality products designed with users in mind. ·... -
Page 16: Copyright
PRODUCT MANUAL Copyright All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual contains no guarantee, standpoint expression or other implies in any form. Product specification and information in this manual is for reference only and subject to change...
