BZBGEAR BG-HDKVM-50 User Manual

Hdmi/usb kvm extender over cat5e/6
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
BG-HDKVM-50
HDMI/USB KVM Extender
Over Cat5e/6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BG-HDKVM-50 and is the answer not in the manual?

Questions and answers

Related Manuals for BZBGEAR BG-HDKVM-50

Summary of Contents for BZBGEAR BG-HDKVM-50

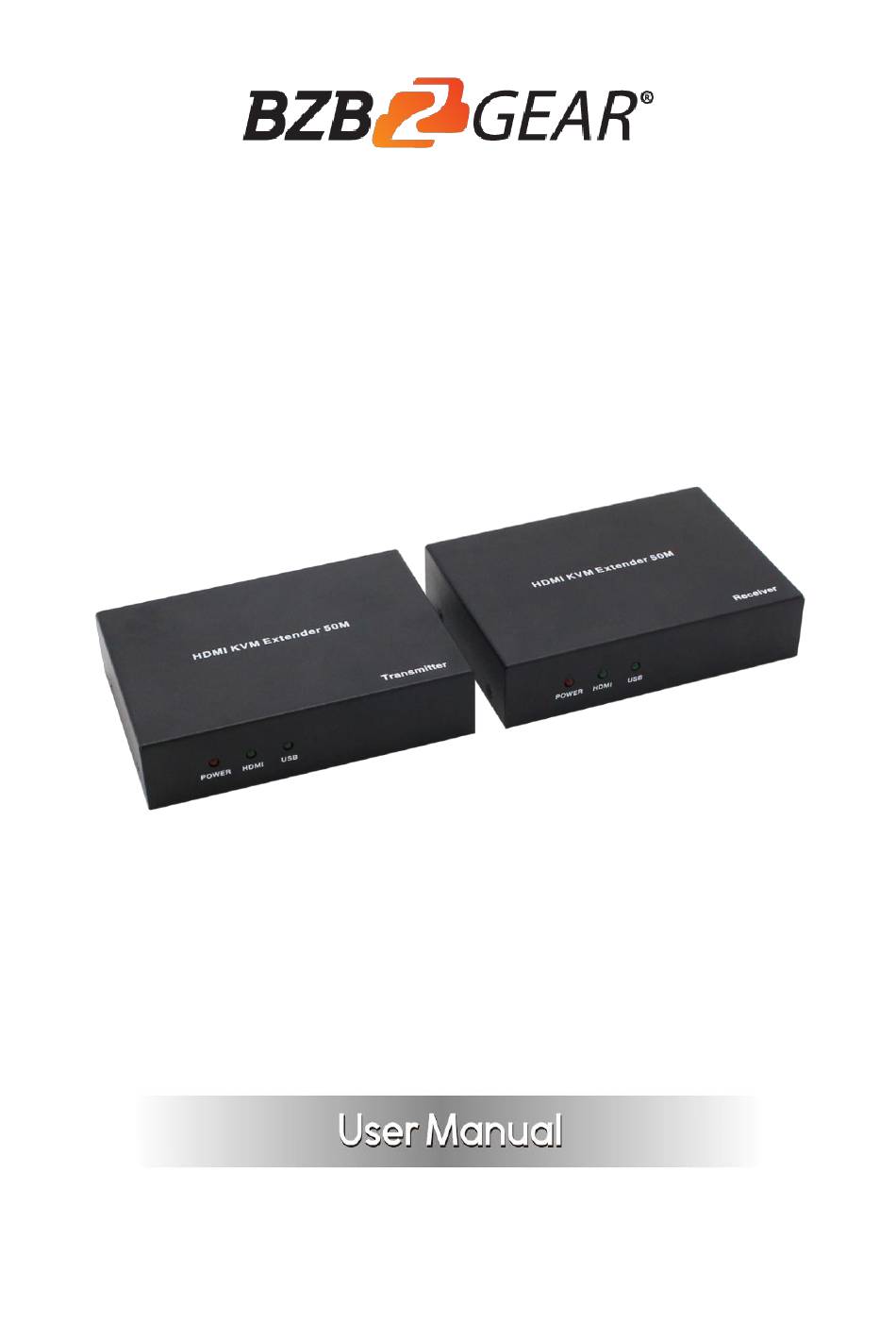

  • Page 1 BG-HDKVM-50 HDMI/USB KVM Extender Over Cat5e/6...

  • Page 2: Table Of Contents

    Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc.

  • Page 3: Introduction

    1. Introduction The BG-HDKVM-50 HDMI/USB KVM Extender can extend high definition HDMI and USB signals up to 164ft/50m over a single Cat5e/6 cable with zero latency. It supports HDMI 1.4b and USB 2.0 standards. Two-way power over cat5e/6/7 function allows either TX or RX be powered by a single 12V@1A power supply.

  • Page 4: Specifications

    4. Specifications Technical HDMI Compliance HDMI 1.4b HDCP Compliance HDCP 1.4 USB Compliance USB 2.0 720x576p50,720x480p60,640x480p60/75,800x600p60/75, Video Resolutions 1024x768p60/75,1280x1024p60,1680x1050p60,1280x720p25/30/ 50/60,1920x1080p25/30/50/60 Transmission Range: HD [1080p@60Hz 24-bit color] up to 50m [164ft] Color Depth 8-bit HDMI Audio Formats LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+ Human body model —...

  • Page 5: Operation Controls And Functions

    5. Operation Controls and Functions 5.1 Transmitter Panel 1) POWER: System power indicator. 2) HDMI: Input HDMI signal indicator LED. On means there is an active signal. 3) USB: USB status indicator LED, no USB signal being transmitted will show slow flashing, when USB signal being transmitted will show quick flashing.
  • Page 6 USB: USB status indicator LED, no USB signal being transmitted will show slow flashing, when USB signal being transmitted shows quick flashing. 4) DC 12V: Connect to a 12V DC power supply. No needs to connect another power supply if your transmitter box is powered by an external 12V DC power supply.

  • Page 7: Connection Diagram

    6. Connection Diagram...

  • Page 8: Second Year Assurance

    2. Complete the registration form. Provide all necessary proof of purchase details, including serial number and a copy of your sales receipt. For questions, please call 1.888.660.2962 or email support@bzbgear.com. For complete warranty information, please visit BZBGear.com/warranty or scan the QR code below.

  • Page 9: Mission Statement

    8. Mission Statement BZB Gear manifests from the competitive nature of the audiovisual industry to innovate while keeping the customer in mind. AV solutions can cost a pretty penny, and new technology only adds to it. We believe everyone deserves to see, hear, and feel the advancements made in today’s AV world without having to break the bank.
