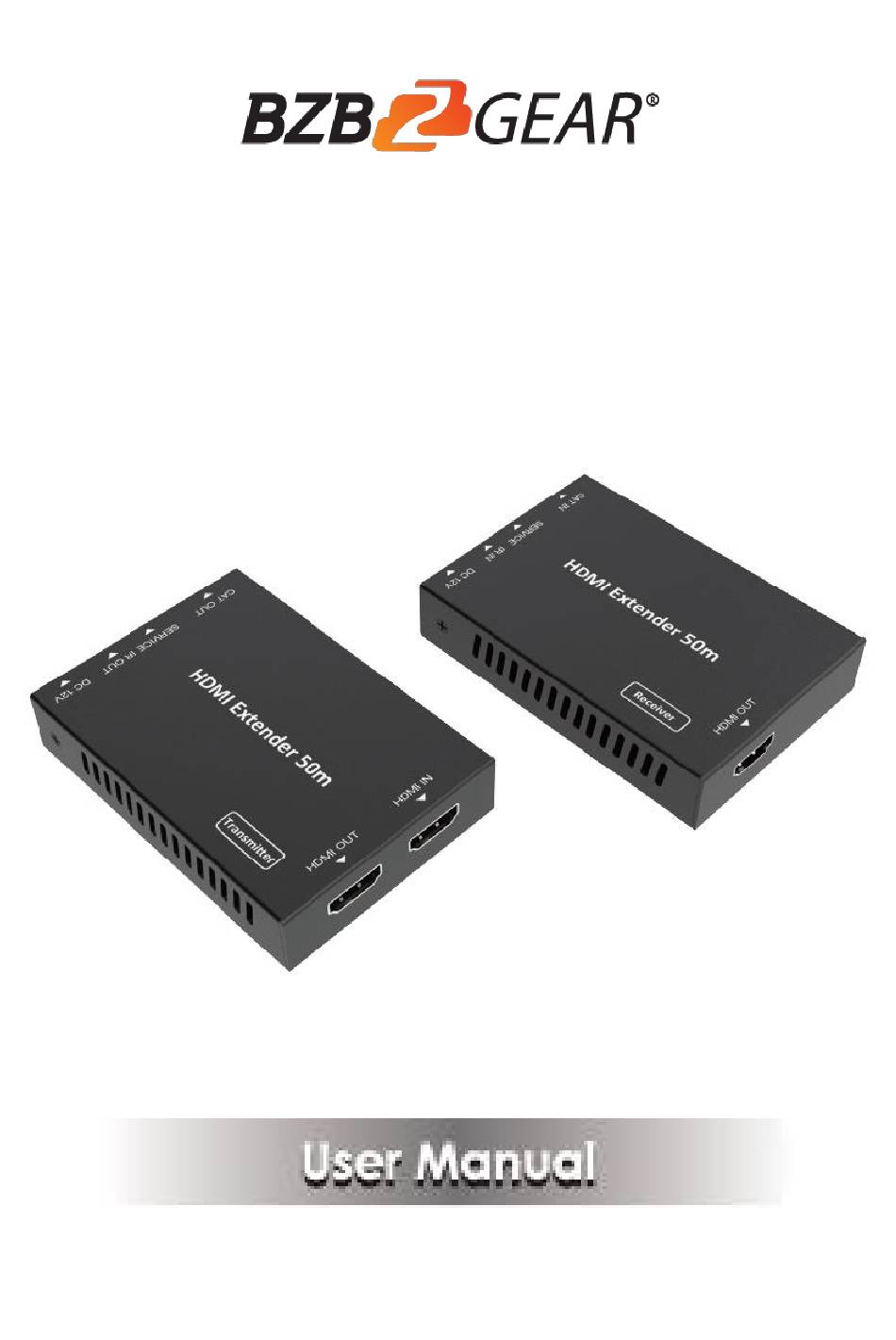

  • Page 1 BG-EXH-50POC HDMI 18Gbps Extender with one-way IR (50M)

  • Page 2: Table Of Contents

    Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc.

  • Page 3: Introduction

    1. Introduction The BZB-EXH-50POC can extend high definition video / audio signal and one-way IR, and the distance is up to 164ft / 50 meters between transmitter and receiver over a single Cat5e/6 cable. It supports resolution up to 4K2K@60Hz 4:4:4, 18Gbps and HDCP 2.2. In addition, the extender is equipped with one-way IR pass-through which allows for source control and one HDMI loop output.

  • Page 4: Features

    2. Features ☆ HDMI 2.0, HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant ☆ Supports 18Gbps bandwidth ☆ Supports input and output video resolution up to 4k2k@60Hz 4:4:4, extends distance up to 164ft / 50 meters ☆ Supports one HDMI loop output ☆...

  • Page 5: Specifications

    4. Specifications Technical HDMI Compliance HDMI 2.0 HDCP Compliance HDCP 2.2 / HDCP 1.4 Video Bandwidth 18Gbps Video Resolution Up to 4K60Hz 4:4:4 Color Space RGB / YCbCr 4:4:4, YCbCr 4:2:2/4:2:0, YUV 4:4:4 Color Depth 8/10/12-bit (1080P60Hz, 4K30Hz, 4K60Hz YCbCr 4:2:2/4:2:0) 8-bit (4K60Hz 4:4:4) HDMI Audio Formats...

  • Page 6: Operation Controls And Functions

    5. Operation Controls and Functions 5.1 Transmitter Panel Number Name Function description HDMI OUT HDMI loop output port, connect to HDMI display device such as TV or Projector with an HDMI cable. HDMI IN HDMI input port, connect to HDMI source device such as DVD or PS4 player with an HDMI cable.

  • Page 7: Receiver Panel

    5.2 Receiver Panel Number Name Function description HDMI OUT HDMI output port, connect to HDMI display device such as TV or Projector with an HDMI cable. CAT IN Connect to CAT OUT port on the transmitter end with a CAT6 cable.

  • Page 8: Ir Pin Definition

    5.3 IR Pin Definition IR Receiver and Blaster pin’s definition as below: The following is IR system diagram about IR cable use method.

  • Page 9: Application Example

    6. Application Example...

  • Page 10: Mission Statement

    7. Mission Statement BZB Gear manifests from the competitive nature of the audiovisual industry to innovate while keeping the customer in mind. AV solutions can cost a pretty penny, and new technology only adds to it. We believe everyone deserves to see, hear, and feel the advancements made in today’s AV world without having to break the bank.

  • Page 11: Warranty Information

    2. Complete the registration form. Provide all necessary proof of purchase details, including serial number and a copy of your sales receipt. For questions, please call 1.888.660.2962 or email support@bzbgear.com. For complete warranty information, please visit BZBGear.com/warranty or scan the QR code below. *Terms and conditions apply. Registration is required.
