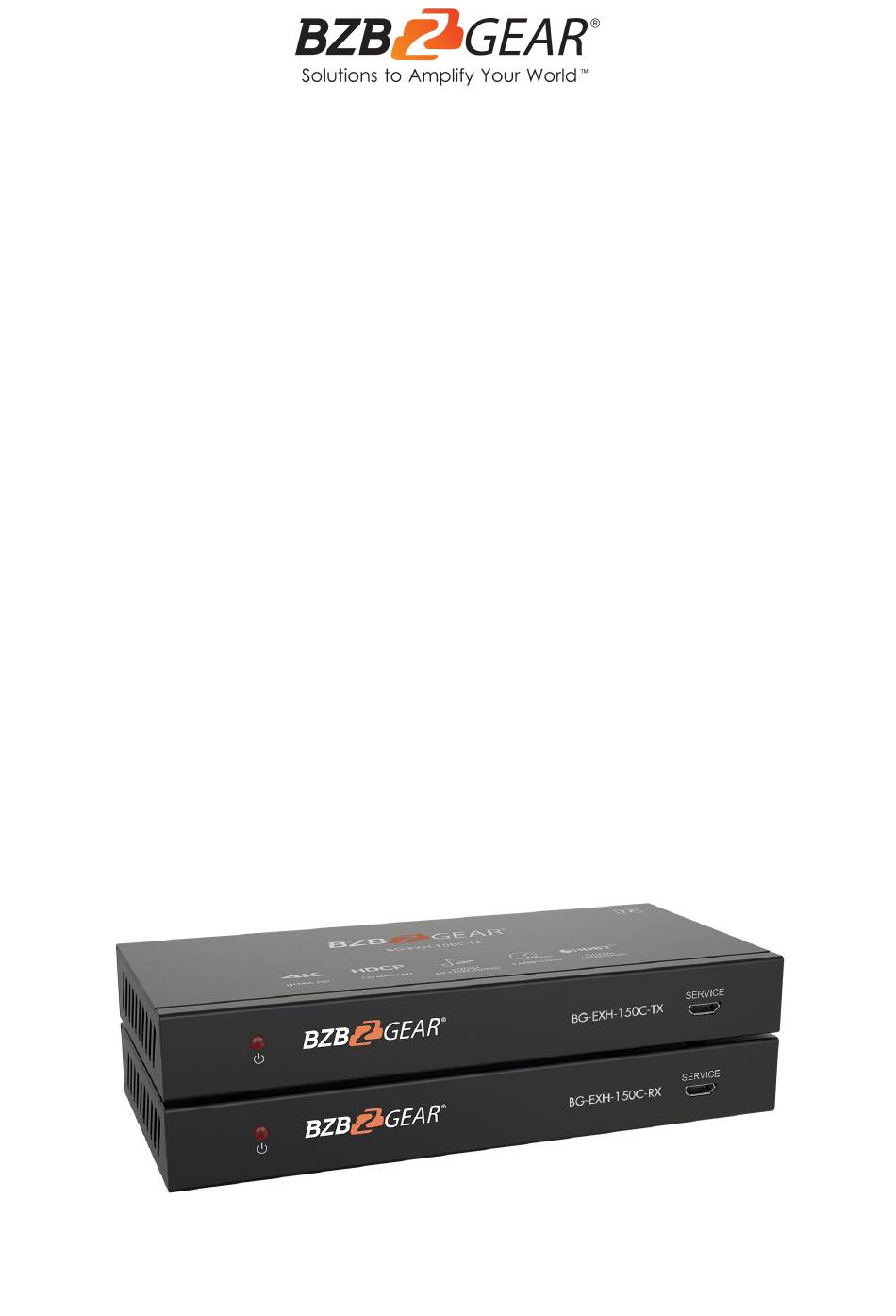

- Page 1 BG-EXH-150C 4K 18Gbps UHD HDMI HDBaseT Extender Over Category 5e/6/7 Cable up to 495ft with 2-Way IR/CEC/PoC/RS-232 User Manual...
- Page 2 BZBGEAR BG-EXH-150C PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 3: Table Of Contents
BZBGEAR BG-EXH-150C PRODUCT MANUAL TABLE OF CONTENTS Statement Safety Precaution Introduction Features Packing List Technical Specifications Operation Controls and Functions IR Cable Pin Assignment Application Example Tech Support Warranty Mission Statement Copyright · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 4: Statement
● This product does not contain parts that can be maintained or repaired by users. Damage caused by dismantling the product without authorization from BZBGEAR is not covered under the warranty policy. ● Installation and use of this product must strictly comply with local electrical safety standards. -
Page 5: Introduction
RS-232, bi-directional IR, up to 492ft / 150 meters between transmitter and receiver via a single CAT cable. The BG-EXH-150C also features power over cable (PoC) capabilities meaning only one of the units, transmitter or receiver, needs to be plugged into power. -
Page 6: Technical Specifications
BZBGEAR BG-EXH-150C PRODUCT MANUAL Technical Specifications Technical HDCP Compliance HDCP 2.2 / HDCP 1.4 Video Bandwidth 18Gbps Video Resolution 4K2K@50/60Hz 4:4:4 4K2K@50/60Hz 4:2:2 4K2K@50/60Hz 4:2:0 4K2K@30Hz 4:4:4 1080p, 1080i, 720p, 720i, 480p, 480i All HDMI 3D TV formats All PC resolutions including 1920 x 1200... -
Page 7: Operation Controls And Functions
BZBGEAR BG-EXH-150C PRODUCT MANUAL Operation Controls and Functions Transmitter Panel 1. Power LED: Red LED indicates that the transmitter is powered on. 2. SERVICE port: Micro USB firmware update port. 3. DC 24V: DC 24V/1A power supply input port. 4. Connection Indicator lamp: ➢... -
Page 8: Ir Cable Pin Assignment
BZBGEAR BG-EXH-150C PRODUCT MANUAL Receiver Panel 12. Power LED: Red LED indicates that the receiver is powered on. 13. SERVICE port: Micro USB firmware update port. 14. DC 24V: DC 24V/1A power supply input port. 15. Connection Indicator lamp: ➢ Solid: Transmitter and Receiver are in good connection status. -
Page 9: Application Example
BZBGEAR BG-EXH-150C PRODUCT MANUAL Application Example · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 10: Tech Support
1.888.499.9906 support@bzbgear.com bzbgear.com Warranty BZBGEAR Pro AV products and cameras come with a three-year warranty. An extended two-year warranty is available for our cameras upon registration for a total of five years. For complete warranty information, please visit bzbgear.com/warranty. For questions, please call 1.888.499.9906 or email support@bzbgear.com. -
Page 11: Mission Statement
AVoIP, professional broadcasting, conferencing, home theater, to live streaming solutions. We pride ourselves on unparalleled customer support and services. Our team offers system design consultation, and highly reviewed technical support for all the products in our catalog. BZBGEAR delivers quality products designed with users in mind. ·... -
Page 12: Copyright
PRODUCT MANUAL Copyright All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual contains no guarantee, standpoint expression or other implies in any form. Product specification and information in this manual is for reference only and subject to change...
