Summary of Contents for BZBGEAR BG-USB3-LR100

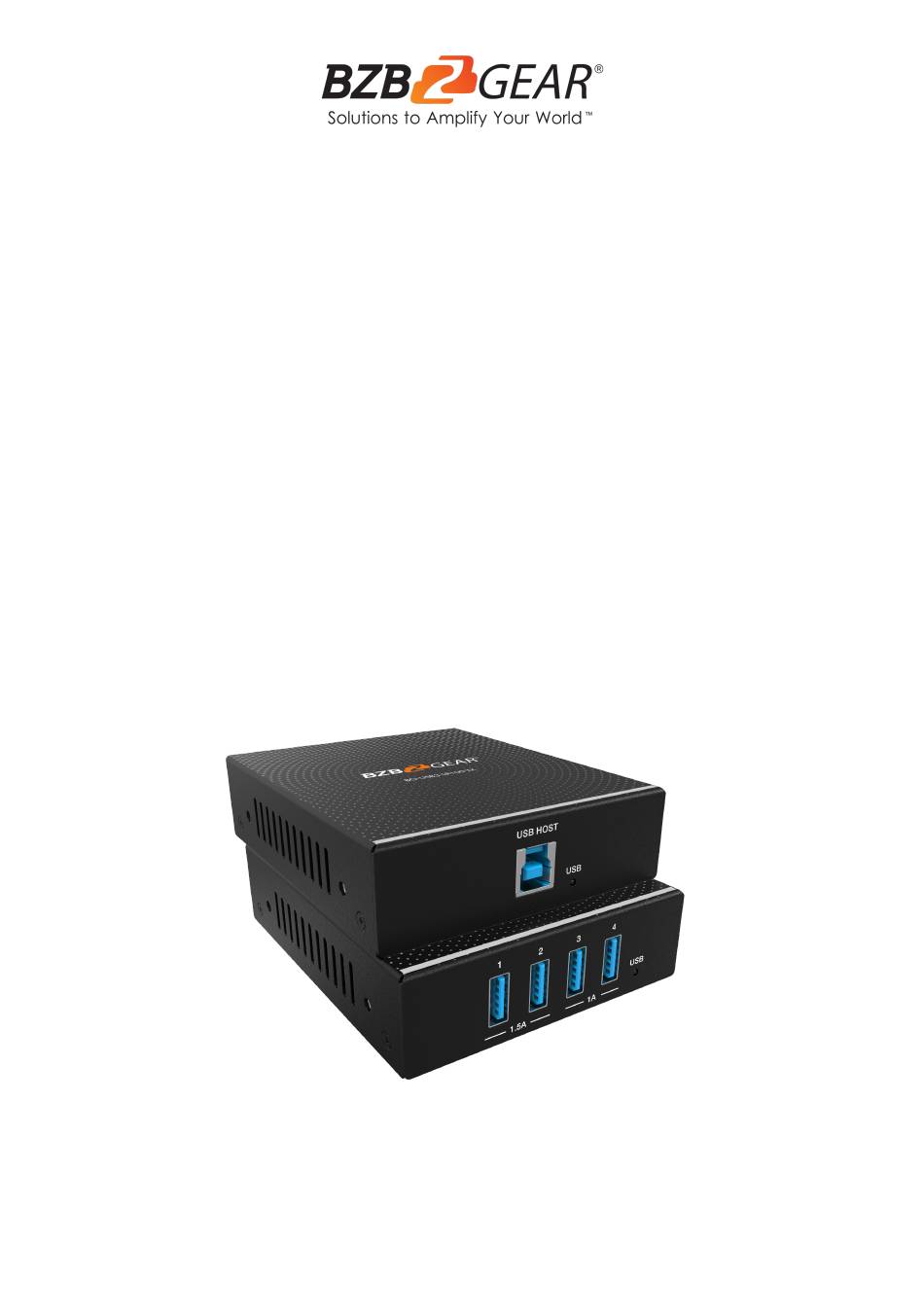

- Page 1 BG-USB3-LR100 USB 3.0 Extender (100M) User Manual...
- Page 2 BZBGEAR BG-USB3-LR100 PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 3: Table Of Contents
BZBGEAR BG-USB3-LR100 PRODUCT MANUAL Statement Safety Precaution Surge protection device recommended Caution - UTP Connectors Introduction Features Packing List Specifications Operation Controls and Functions Transmitter Panel Receiver Panel Connection Diagram Troubleshooting Tech Support Warranty Mission Statement Copyright · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 4: Statement
● This product does not contain parts that can be maintained or repaired by users. Damage caused by dismantling the product without authorization from BZBGEAR is not covered under the warranty policy. ● Installation and use of this product must strictly comply with local electrical safety standards. - Page 5 BZBGEAR BG-USB3-LR100 PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 6: Introduction
PRODUCT MANUAL Introduction The BG-USB3-LR100 USB 3.0 Extender can extend USB signals up to 100 meters (328 feet) using a single CAT6a cable. The transmitter features one USB 3.0 Type B input, one FSYNC GPIO input, and one RS-232 pass-through. The receiver has four USB 3.0 Type A outputs, one FSYNC GPIO output, and one RS-232 pass-through. -
Page 7: Specifications
BZBGEAR BG-USB3-LR100 PRODUCT MANUAL Specifications Technical USB Protocol USB 3.0 Transmission Rate Up to 5Gbps Network Bandwidth Transmission Distance 100m/328ft over CAT6a (F/FTP) cable IEC 61000-4-2: ESD Protection ±8kV (Air-gap discharge), ±4kV (Contact discharge) Connections Input: 1 × USB HOST [USB-B, 9pin Female]... -
Page 8: Operation Controls And Functions
BZBGEAR BG-USB3-LR100 PRODUCT MANUAL Operation Controls and Functions Transmitter Panel Name Function Description Host port, supporting USB 3.0. Connects to a PC or host. USB HOST USB signal indicator. USB LED ▪On: USB signal is detected. ▪Off: USB signal is not detected. -
Page 9: Receiver Panel
BZBGEAR BG-USB3-LR100 PRODUCT MANUAL Receiver Panel Name Function Description USB 1/2 Connect to USB devices, and max output power is up to 5V/1.5A. Connect to USB devices, and max output power is up to 5V/1A. USB 3/4 USB signal indicator. -
Page 10: Connection Diagram
BZBGEAR BG-USB3-LR100 PRODUCT MANUAL Connection Diagram · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 11: Troubleshooting
BZBGEAR BG-USB3-LR100 PRODUCT MANUAL Troubleshooting Problems Causes Solutions No Power / All LED off Power supply not connected, Check if the power supply is connected fully, or wrong power connected correctly and the supply. output voltage value is within recommended specifications. -
Page 12: Tech Support
1.888.499.9906 support@bzbgear.com bzbgear.com Warranty BZBGEAR Pro AV products and cameras come with a three-year warranty. An extended two-year warranty is available for our cameras upon registration for a total of five years. For complete warranty information, please visit bzbgear.com/warranty. For questions, please call 1.888.499.9906 or email support@bzbgear.com. -
Page 13: Mission Statement
AVoIP, professional broadcasting, conferencing, home theater, to live streaming solutions. We pride ourselves on unparalleled customer support and services. Our team offers system design consultation, and highly reviewed technical support for all the products in our catalog. BZBGEAR delivers quality products designed with users in mind. ·... -
Page 14: Copyright
PRODUCT MANUAL Copyright All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual contains no guarantee, standpoint expression or other implies in any form. Product specifications and information in this manual are for reference only and are subject to...
