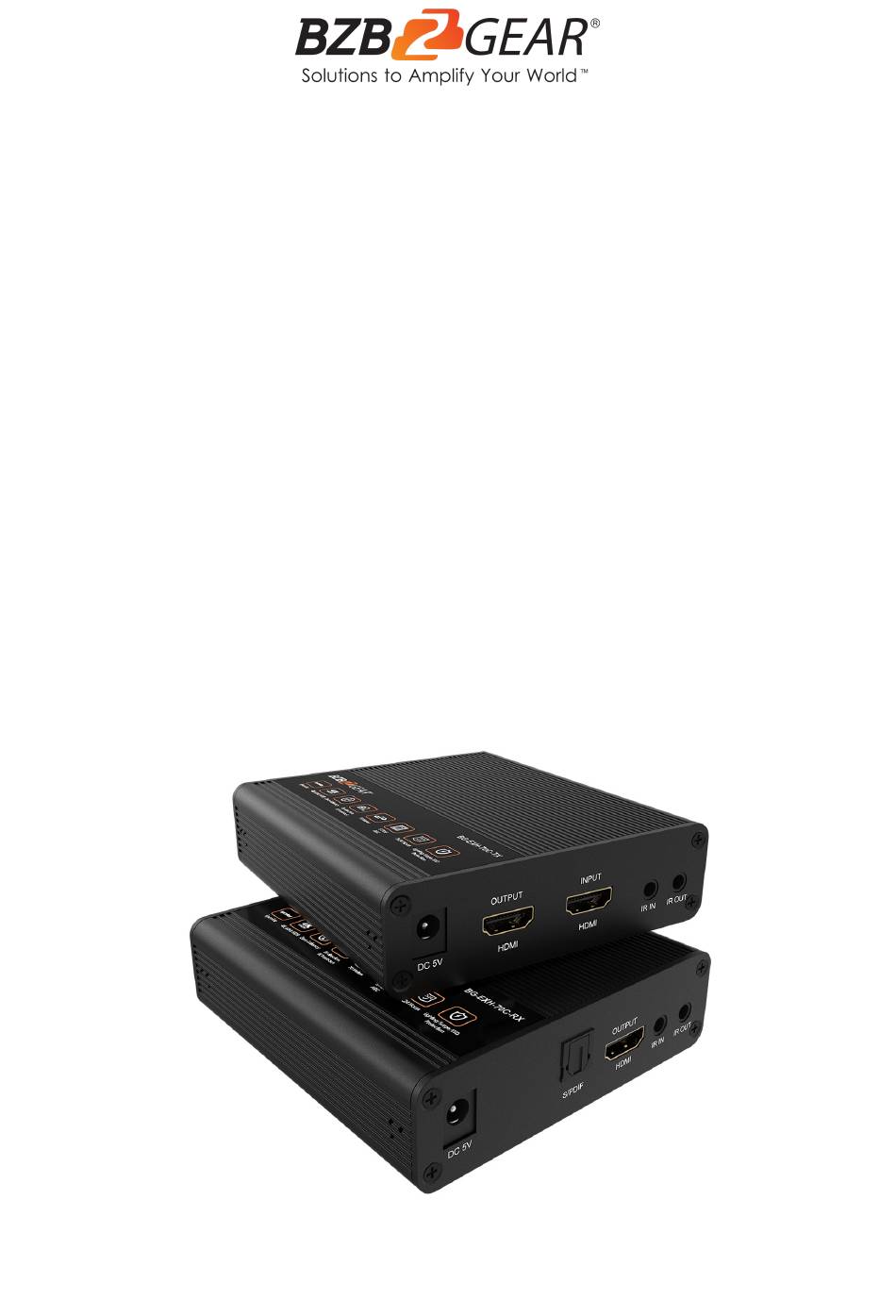

- Page 1 BG-EXH-70C 4K 18Gbps UHD HDMI Extender Over Category 5e/6/7 Cable up to 230 ft also with 2-Way IR & Audio Extraction User Manual...
- Page 2 BZBGEAR BG-EXH-70C PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 3: Table Of Contents
BZBGEAR BG-EXH-70C PRODUCT MANUAL TABLE OF CONTENTS Statement Safety Precaution Introduction Features Packing List Technical Specifications Operation Controls and Functions Installation Requirements Installation Procedures IR Cable Pin Assignment Application Example Tech Support Warranty Mission Statement Copyright · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 4: Statement
● This product does not contain parts that can be maintained or repaired by users. Damage caused by dismantling the product without authorization from BZBGEAR is not covered under the warranty policy. ● Installation and use of this product must strictly comply with local electrical safety standards. -
Page 5: Introduction
BZBGEAR BG-EXH-70C PRODUCT MANUAL Introduction The BG-EXH-70 HDMI extender includes a transmitter unit and a receiver unit which allows 4K HDMI signals to be transmitted up to 70m (230ft) using a CAT6/6A/7 network cable. It is perfect for outdoor advertising, monitoring systems, home entertainment, conference room... -
Page 6: Technical Specifications
BZBGEAR BG-EXH-70C PRODUCT MANUAL Technical Specifications Technical Transmitter Receiver HDMI compliance HDMI 2.0, compatible HDMI1.4 HDCP compliance HDCP2.2, compatible HDCP1.4 Transmission medium CAT6/CAT6A/CAT7 Transmission distance CAT6/6A/7 Transmission 70 meters Video bandwidth 18Gbps Resolution support 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz,... -
Page 7: Operation Controls And Functions
BZBGEAR BG-EXH-70C PRODUCT MANUAL Operation Controls and Functions Transmitter Panel 1. Reset button: Press to restart the device. 2. RJ45 signal output: Connect with a network cable to the receiver. 3. Power/Signal indicator: When power is connected and there is no HDMI signal, the indicator will flash, when there is HDMI signal, the indicator will light solid blue. -
Page 8: Installation Requirements
BZBGEAR BG-EXH-70C PRODUCT MANUAL Data Signal Connection Signal Indicator Lamp Indicator Lamp ● Solid: HDMI signal with HDCP. ● Solid: Tx & Rx are in good connection status. ● Flashing: HDMI signal without HDCP. ● Flashing: Tx & Rx are in poor connection status. -
Page 9: Ir Cable Pin Assignment
BZBGEAR BG-EXH-70C PRODUCT MANUAL 2. Connection instruction 1) Connect the source device to the HDMI in port of the transmitter with an HDMI cable, and connect the HDMI out port of the receiver to the display device with another HDMI cable. -
Page 10: Application Example
BZBGEAR BG-EXH-70C PRODUCT MANUAL Application Example · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 11: Tech Support
1.888.499.9906 support@bzbgear.com bzbgear.com Warranty BZBGEAR Pro AV products and cameras come with a three-year warranty. An extended two-year warranty is available for our cameras upon registration for a total of five years. For complete warranty information, please visit bzbgear.com/warranty. For questions, please call 1.888.499.9906 or email support@bzbgear.com. -
Page 12: Copyright
PRODUCT MANUAL Copyright All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual contains no guarantee, standpoint expression or other implies in any form. Product specification and information in this manual is for reference only and subject to change...
