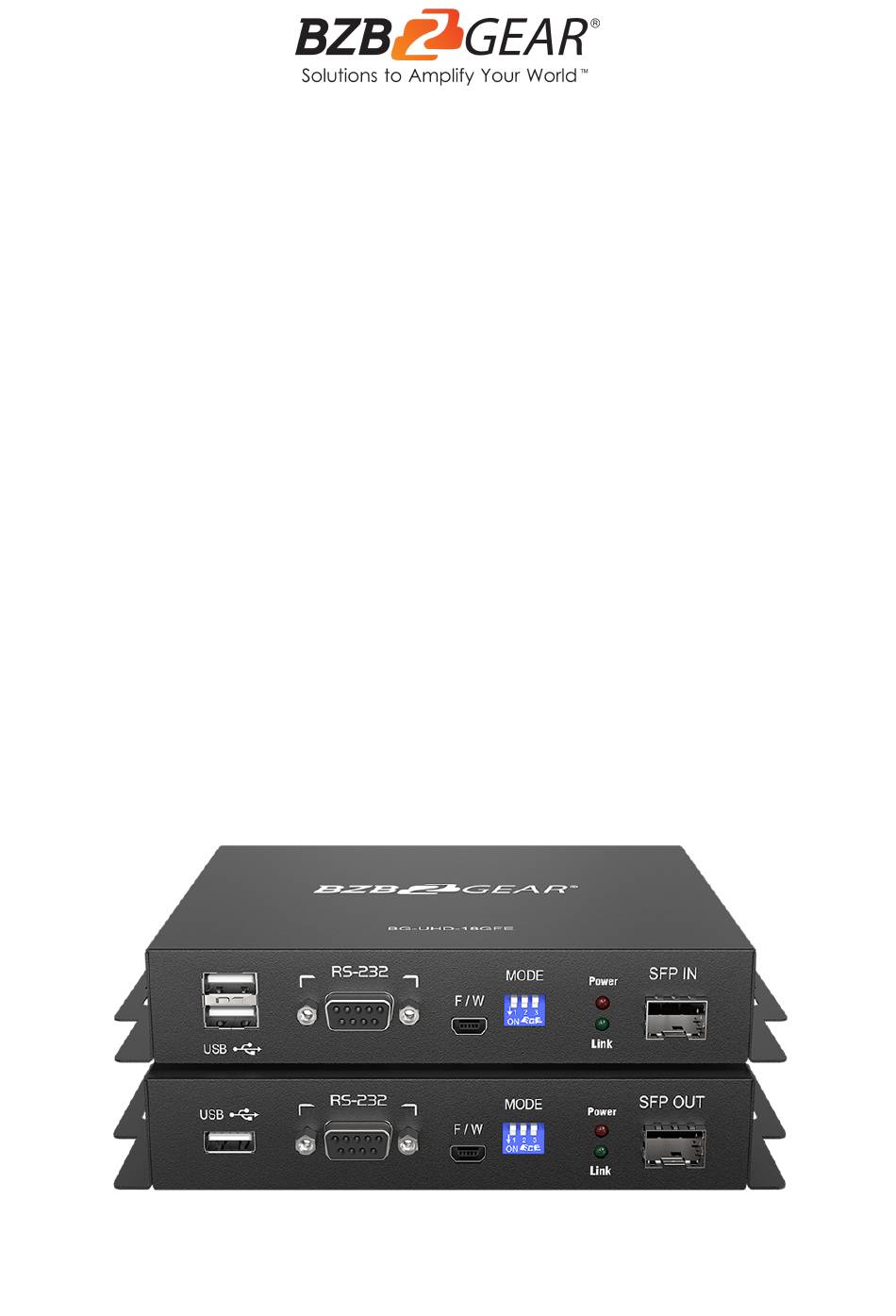

- Page 1 BG-UHD-18GFE 4K 18Gbps UHD HDMI USB KVM Extender Kit over Fiber w/HDR, 2-Way IR & RS-232 User Manual...
- Page 2 BZBGEAR BG-UHD-18GFE PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 3: Table Of Contents
BZBGEAR BG-UHD-18GFE PRODUCT MANUAL TABLE OF CONTENTS Statement Safety Precaution Introduction Features Packing List Specifications Operation Controls and Functions Application Diagram IR Pass-Through HDMI Pin Definition Tech Support Warranty Mission Statement Copyright · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 4: Statement
● This product does not contain parts that can be maintained or repaired by users. Damage caused by dismantling the product without authorization from BZBGEAR is not covered under the warranty policy. ● Installation and use of this product must strictly comply with local electrical safety standards. -
Page 5: Introduction
Ultra-HD 4K2K@60. Users can easily extend Ultra-HD sources from DVD/Blu-ray Disc players, game consoles, PCs, and any other HDMI sources broadcasting to distant displays. The BG-UHD-18GFE is also HDCP compliant and supports IR & RS-232 pass-through as well as keyboard/mouse USB signal transmission. -
Page 6: Specifications
BZBGEAR BG-UHD-18GFE PRODUCT MANUAL Specifications Technical Role of usage Transmitter [TX] Receiver [RX] HDMI compliance HDMI 2.0a HDCP compliance HDCP2.2 Video bandwidth Single-link 600MHz [18Gbps] Video support HDR 4K2K@60 (4:2:0 10 bits) / 4K2K@60 (4:4:4 8 bits) HDMI over fiber Audio support Surround sound [up to 7.1ch] or stereo audio... -
Page 7: Operation Controls And Functions

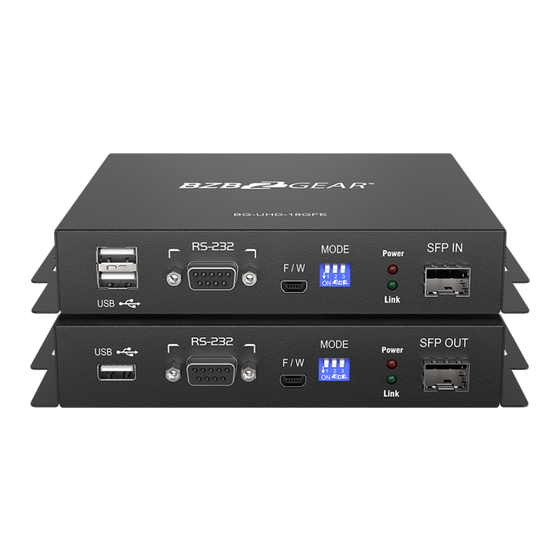

BZBGEAR BG-UHD-18GFE PRODUCT MANUAL Operation Controls and Functions Transmitter Front Panel 1. USB[Host]: Connect to a USB port from the computer for keyboard & mouse control 2. RS-232: Connect to serial port device with a DSUB-9 male-male or male-female cable here 3. - Page 8 BZBGEAR BG-UHD-18GFE PRODUCT MANUAL Transmitter Rear Panel 7. HDMI IN: Connect to a HDMI source with a HDMI male-male cable 8. IR Receiver: Infrared 3.5mm socket for plugging in the extension cable of IR receiver 9. IR Blaster: Infrared 3.5mm socket for plugging in the extension cable of IR blaster 10.
-
Page 9: Application Diagram
BZBGEAR BG-UHD-18GFE PRODUCT MANUAL 15. LED indicator [Red]: Power LED indicator [Green]: Link LED indicator 16. SFP IN: plug in single mode fiber optic cables that needs to be linked to the transmitting unit Receiver Rear Panel 17. HDMI OUT: Connect to a HDMI display with a HDMI male-male cable 18. -
Page 10: Ir Pass-Through
BZBGEAR BG-UHD-18GFE PRODUCT MANUAL IR Pass-Through IR Extenders IR Blaster IR Receiver IR Sockets ● IR BLASTER: plug in the IR blaster to emit all IR command signals received from the IR receiver from the other end to control the devices corresponding to the IR signals. -
Page 11: Hdmi Pin Definition
1.888.499.9906 support@bzbgear.com bzbgear.com Warranty BZBGEAR Pro AV products and cameras come with a three-year warranty. An extended two-year warranty is available for our cameras upon registration for a total of five years. · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 12: Mission Statement
Copyright All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual contains no guarantee, standpoint expression or other implies in any form. Product specification and information in this manual is for reference only and subject to change...
