Summary of Contents for BZBGEAR BG-EXH-100C6

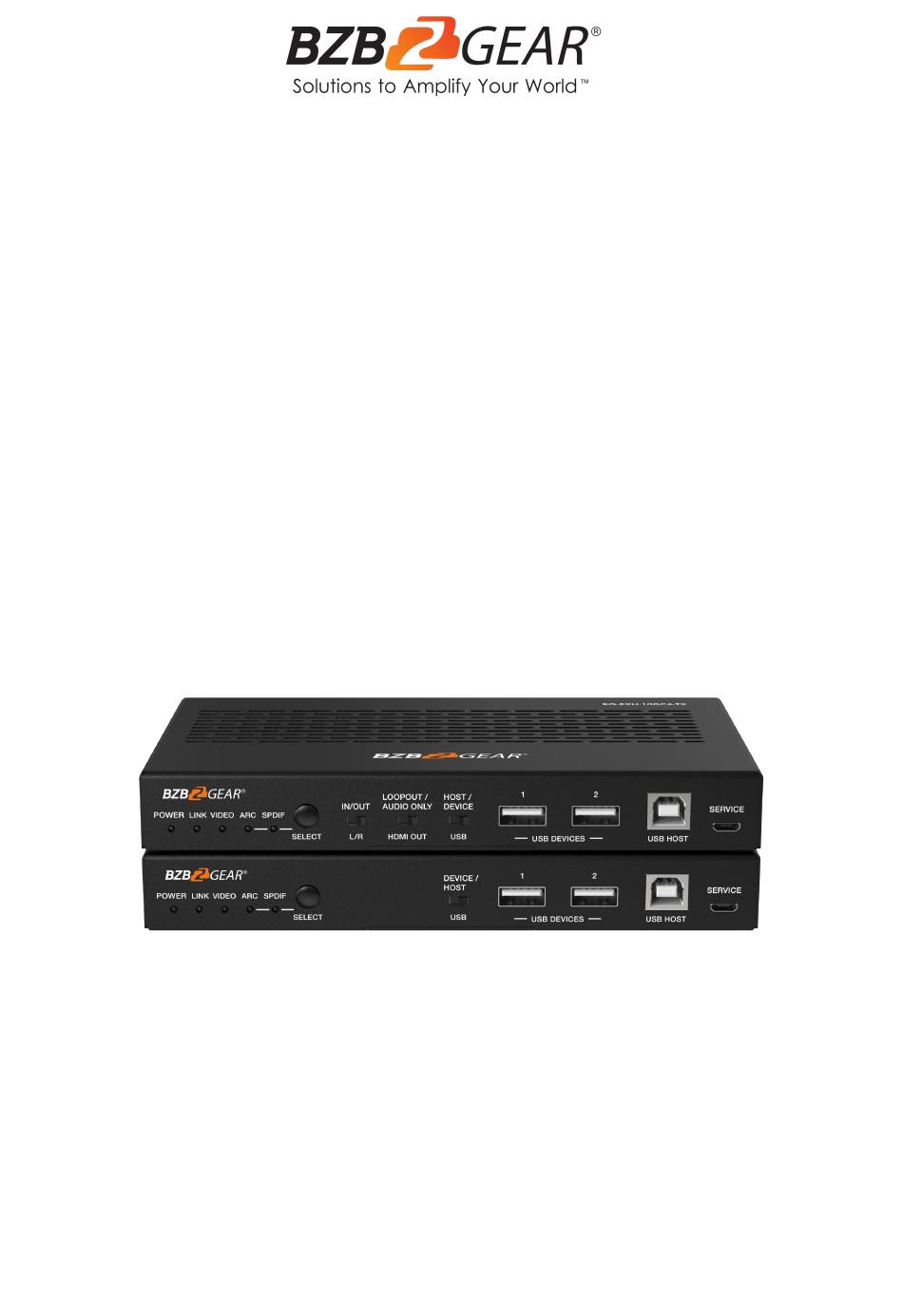

- Page 1 BG-EXH-100C6 HDBaseT 3.0 Extender with eARC/ARC (100m) User Manual...
- Page 2 BZBGEAR BG-EXH-100C6 PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 3: Table Of Contents
BZBGEAR BG-EXH-100C6 PRODUCT MANUAL TABLE OF CONTENTS Statement Safety Precaution Introduction Features Packing List Specifications Operation Controls and Functions Transmitter Panel Receiver Panel Input & Output Switching Audio Embedding and De-embedding USB Mode Applications IR Pin Definition Application Example Tech Support... -
Page 4: Statement
● This product does not contain parts that can be maintained or repaired by users. Damage caused by dismantling the product without authorization from BZBGEAR is not covered under the warranty policy. ● Installation and use of this product must strictly comply with local electrical safety standards. -
Page 5: Introduction
PRODUCT MANUAL Introduction The BG-EXH-100C6 is an HDBaseT 3.0 extender that extends uncompressed HD/UHD audio / video, eARC/ARC, RS-232, bi-directional IR, 1GbE Ethernet, and USB 2.0 signals up to a distance of up to 100m/328ft using a single CAT6A/7 cable. Featuring USB 2.0 (host/device configurability), and bi-directional PoC. -
Page 6: Specifications
BZBGEAR BG-EXH-100C6 PRODUCT MANUAL Specifications Technical HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2 Video Bandwidth 18Gbps Video Resolution Up to 4K@60Hz 4:4:4 HDBaseT Bandwidth 16Gbps on main and 2Gbps on return link HDR, HDR10, HDR10+, Dolby Vision, HLG Color Space... -
Page 7: Operation Controls And Functions
BZBGEAR BG-EXH-100C6 PRODUCT MANUAL Mechanical Housing Metal Enclosure Color Black Dimensions Transmitter / Receiver: 170mm [W] x 102mm [D] x 22mm [H] Weight Transmitter: 425g, Receiver: 437g Input: AC 100 - 240V 50/60Hz Power Supply Output: DC 24V/1A (US/EU standard, CE/FCC/UL certified) Power Consumption 15.36W (P0C) - Page 8 BZBGEAR BG-EXH-100C6 PRODUCT MANUAL Name Function Description Switch to the left: The L/R IN/OUT port is the audio embedding port. L/R IN/OUT switch Switch to the right: The L/R IN/OUT port is the audio de-embedding port. Switch to the left (LOOPOUT): The HDMI OUT port is the loop-out port for the HDMI IN port.
-
Page 9: Receiver Panel
BZBGEAR BG-EXH-100C6 PRODUCT MANUAL Receiver Panel Name Function Description Power LED The red LED will illuminate when the receiver is powered on. Light on: The transmitter and receiver have a good connection status. LINK LED Light flashing: The transmitter and receiver are in ‘Low Power Mode’. -
Page 10: Input & Output Switching
BZBGEAR BG-EXH-100C6 PRODUCT MANUAL Name Function Description 18 SPDIF IN Optical input port. 19 IR IN IR signal input port: Connect to the IR Receiver cable. 20 IR OUT IR signal output port. Connect to the IR Blaster cable. 21 RS-232 RS-232 serial port: Used for serial port command transmission. - Page 11 BZBGEAR BG-EXH-100C6 PRODUCT MANUAL Example 3: Set the extender to ARC mode, then toggle the LOOP-OUT/ AUDIO ONLY switch to the right. The HDMI OUT port of the transmitter is now set to AUDIO ONLY. Example 4: Set the extender to ARC mode, then toggle the LOOP-OUT/ AUDIO ONLY switch to the left.
-
Page 12: Audio Embedding And De-Embedding
HDMI IN port. USB Mode Applications The BG-EXH-100C6 supports USB 2.0 transmission and the Host/Device is also configurable. Mode 1: USB forward from TX to RX Toggle the HOST/DEVICE USB switch to the left, then power off and reboot the transmitter to set to USB Host mode. -
Page 13: Ir Pin Definition
BZBGEAR BG-EXH-100C6 PRODUCT MANUAL Mode 2: USB reverse from RX to TX Toggle the HOST/DEVICE USB switch to right, then power off and reboot the transmitter to set to USB Device mode. Meanwhile, toggle the DEVICE/HOST USB switch to right, then power off and reboot the receiver to set to USB Host mode. -
Page 14: Application Example
BZBGEAR BG-EXH-100C6 PRODUCT MANUAL Application Example · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 15: Tech Support
1.888.499.9906 support@bzbgear.com bzbgear.com Warranty BZBGEAR Pro AV products and cameras come with a three-year warranty. An extended two-year warranty is available for our cameras upon registration for a total of five years. For complete warranty information, please visit bzbgear.com/warranty. For questions, please call 1.888.499.9906 or email support@bzbgear.com. -
Page 16: Copyright
PRODUCT MANUAL Copyright All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual contains no guarantee, standpoint expression or other implies in any form. Product specification and information in this manual is for reference only and subject to change without notice.
