Summary of Contents for BZBGEAR BG-EXH-70C4

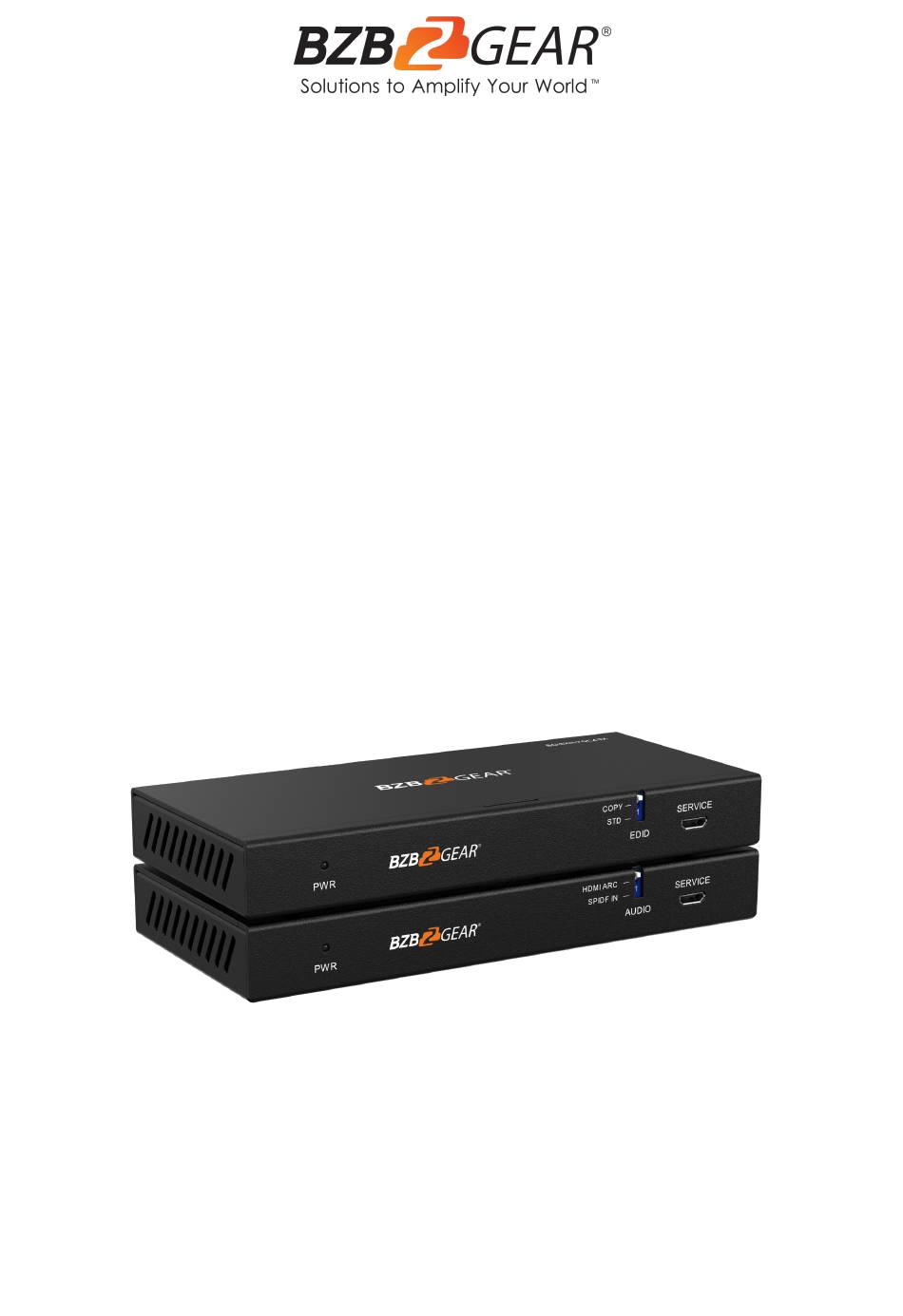

- Page 1 BG-EXH-70C4 18Gbps HDBaseT Extender (70m) with ARC User Manual...
- Page 2 BZBGEAR BG-EXH-70C4 PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 3: Table Of Contents
BZBGEAR BG-EXH-70C4 PRODUCT MANUAL TABLE OF CONTENTS Statement Safety Precaution Introduction Features Packing List Specifications Operation Controls and Functions Transmitter Panel Receiver Panel IR Pin Definition Application Example Tech Support Warranty Mission Statement Copyright · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 4: Statement
● This product does not contain parts that can be maintained or repaired by users. Damage caused by dismantling the product without authorization from BZBGEAR is not covered under the warranty policy. ● Installation and use of this product must strictly comply with local electrical safety standards. -
Page 5: Introduction
PRODUCT MANUAL Introduction The BG-EXH-70C4 is an 18Gbps HDBaseT extender that extends HDMI, bi-directional IR control, ARC, and RS-232 control signals to a distance of up to 70m / 230ft over a single CAT5e/6 cable. The HDMI signal is converted to standard HDBaseT, and transmitted using a LAN cable. -
Page 6: Specifications
BZBGEAR BG-EXH-70C4 PRODUCT MANUAL Specifications Technical HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2 Video Bandwidth 18Gbps Video Resolution Up to 4K2K@60Hz RGB/YCBCR 4:4:4 IR Level 5Vp-p IR Frequency Wideband 20K-60KHz Transmission Distance 70m via a single CAT5e/6 cable Color Space... -
Page 7: Operation Controls And Functions
BZBGEAR BG-EXH-70C4 PRODUCT MANUAL Operation Controls and Functions RANSMITTER ANEL Name Function Description Power LED The red LED will illuminate when the transmitter is powered on. Used for audio EDID setting (COPY on by default). EDID DIP COPY: Copy the EDID of the HDMI OUT port of Receiver. -
Page 8: Receiver Panel
BZBGEAR BG-EXH-70C4 PRODUCT MANUAL ECEIVER ANEL Name Function Description Power LED The red LED will illuminate when the transmitter is powered on. The extender's ARC function is automatically enabled when the HDMI OUT port is connected to a source device with ARC functionality (e.g. amplifier or soundbar): Switch to “HDMI ARC”: The audio returned from the HDMI OUT port of the receiver will be output... -
Page 9: Ir Pin Definition
BZBGEAR BG-EXH-70C4 PRODUCT MANUAL IR P EFINITION IR Receiver and Blaster Descriptions: Note: When the angle between the IR receiver and the remote control is ± 45 °, the transmission distance is 0-5 meters. When the angle between the IR receiver and the remote control is ± 90 °, the transmission distance is 0-8 meters. -
Page 10: Application Example
BZBGEAR BG-EXH-70C4 PRODUCT MANUAL Application Example · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 11: Tech Support
Warranty BZBGEAR Pro AV products and cameras come with a three-year warranty. An extended two-year warranty is available for our cameras upon registration for a total of five years. For complete warranty information, please visit BZBGEAR.com/warranty. For questions, please call 1.888.499.9906 or email support@bzbgear.com. -
Page 12: Copyright
PRODUCT MANUAL Copyright All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual contains no guarantee, standpoint expression or other implies in any form. Product specification and information in this manual is for reference only and subject to change without notice.
