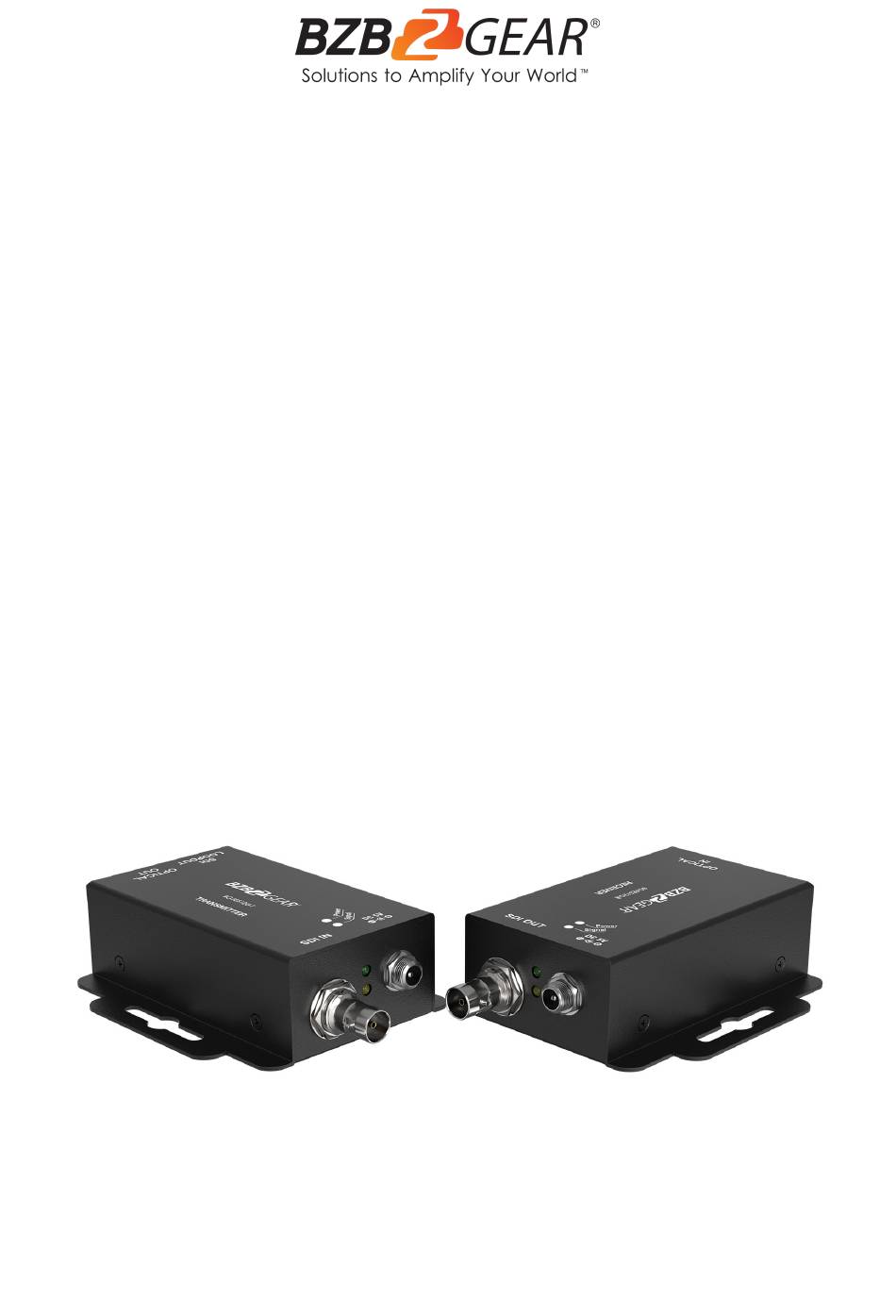

- Page 1 BG-FES12G 4K/1080P 12G/6G/3G/HD/SD-SDI Extender over Single Mode SFP-Type Fiber Optic User Manual...
- Page 2 BZBGEAR BG-FES12G PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 3: Table Of Contents
BZBGEAR BG-FES12G PRODUCT MANUAL TABLE OF CONTENTS Statement Safety Precaution Introduction Features Packing List Technical Specifications Operation Controls and Functions Connection Diagram Application Example Tech Support Warranty Mission Statement Copyright · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 4: Statement
● This product does not contain parts that can be maintained or repaired by users. Damage caused by dismantling the product without authorization from BZBGEAR is not covered under the warranty policy. ● Installation and use of this product must strictly comply with local electrical safety standards. -
Page 5: Introduction
PRODUCT MANUAL Introduction The BG-FES12G is a 12G/6G/3G/HD/SD-SDI SFP single mode fiber optic extender that is an economical solution. It is designed for transmission of multi-rate SDI video with embedded audio and metadata over single-mode fiber optic cables. The transmitter module... -
Page 6: Packing List
BZBGEAR BG-FES12G PRODUCT MANUAL Packing List 1x BG-FES12G 1x User Manual ● ● 2x 5V power adapter 1х Quick Start Guide ● ● Technical Specifications Technical SDI standard SD-SDI/ HD-SDI/ 3G-SDI/ 6G-SDI/12G-SDI Auto HD/SD-SDI detection Supported protocols SMPTE 259M (270Mbps / 360Mbps), DVB ASI (270Mbps) SMPTE 292M / HDTV (1.485Gbps and 1.485/1.001Gbps) -
Page 7: Operation Controls And Functions
BZBGEAR BG-FES12G PRODUCT MANUAL Operation Controls and Functions Receiver Panel 1. SDI OUT: 12G/6G/3G/HD/SD-SDI output. 2. Power LED: The LED illuminates green when the device is powered. 3. Signal LED: Signal indicator illuminates yellow when the receiver establishes a connection to the transmitter. -
Page 8: Connection Diagram
BZBGEAR BG-FES12G PRODUCT MANUAL Connection Diagram · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 9: Application Example
BZBGEAR BG-FES12G PRODUCT MANUAL Application Example · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 10: Tech Support
1.888.499.9906 support@bzbgear.com bzbgear.com Warranty BZBGEAR Pro AV products and cameras come with a three-year warranty. An extended two-year warranty is available for our cameras upon registration for a total of five years. For complete warranty information, please visit bzbgear.com/warranty. For questions, please call 1.888.499.9906 or email support@bzbgear.com. -
Page 11: Mission Statement
AVoIP, professional broadcasting, conferencing, home theater, to live streaming solutions. We pride ourselves on unparalleled customer support and services. Our team offers system design consultation, and highly reviewed technical support for all the products in our catalog. BZBGEAR delivers quality products designed with users in mind. ·... -
Page 12: Copyright
PRODUCT MANUAL Copyright All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual contains no guarantee, standpoint expression or other implies in any form. Product specification and information in this manual is for reference only and subject to change...
