Summary of Contents for BZBGEAR BG-Air4Kast

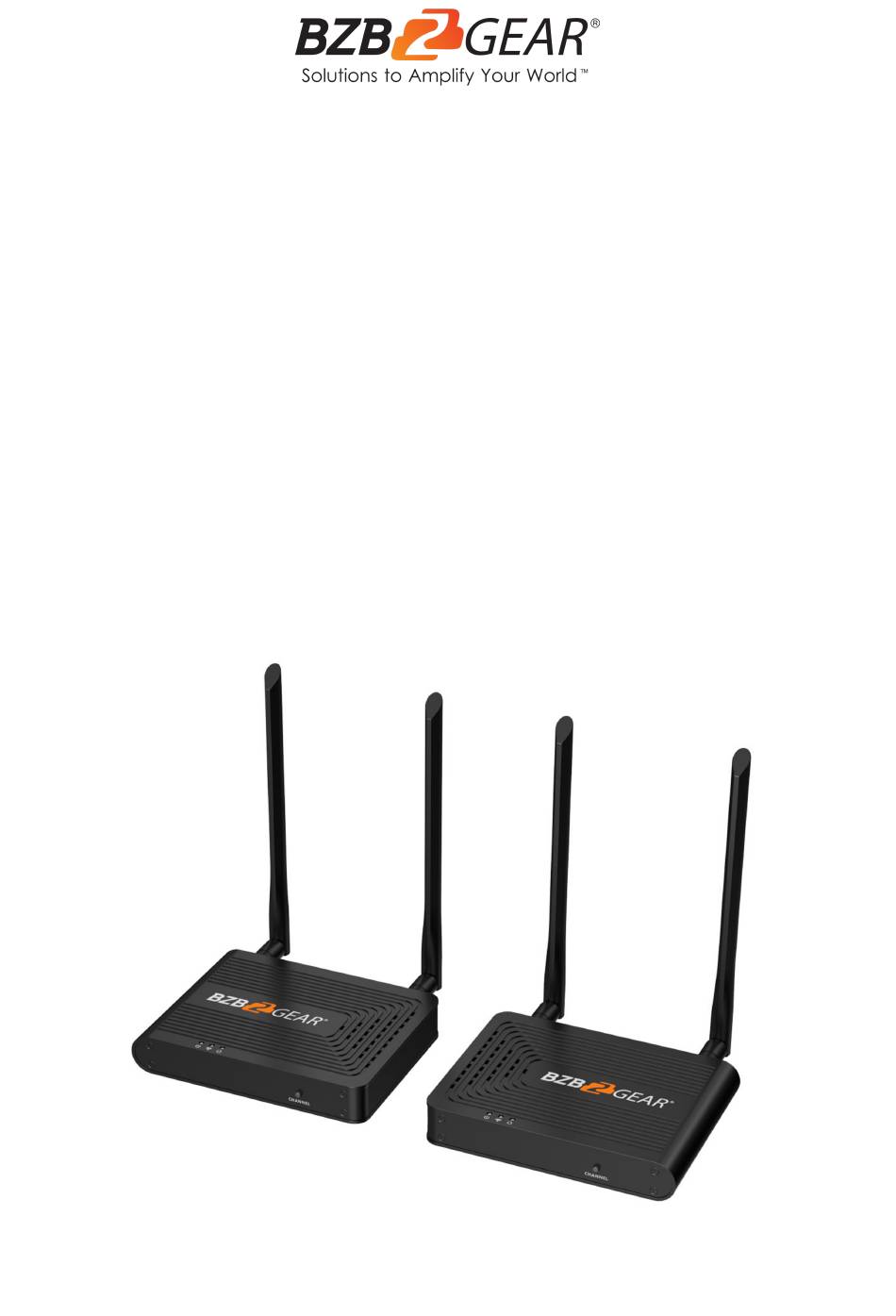

- Page 1 BG-Air4Kast 4K60 UHD HDMI 2.0 Wireless Extender Kit up to 164ft (50m) User Manual...
- Page 2 BZBGEAR BG-Air4Kast PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 3: Table Of Contents
BZBGEAR BG-Air4Kast PRODUCT MANUAL TABLE OF CONTENTS Statement Safety Precaution Introduction Features Package Contents Specifications Panel Descriptions Connection Diagram Connection Instructions SSID Pairing Instructions Troubleshooting Tech Support Limited Product Warranty Terms Mission Statement Copyright FCC Radiation Exposure Statement · ·... -
Page 4: Statement
● This product does not contain parts that can be maintained or repaired by users. Damage caused by dismantling the product without authorization from BZBGEAR is not covered under the warranty policy. ● Installation and use of this product must strictly comply with local electrical safety standards. -
Page 5: Introduction
BZBGEAR BG-Air4Kast PRODUCT MANUAL Introduction The BG-Air4Kast is an advanced 4K@60Hz HDMI wireless extender solution consisting of a transmitter and a receiver. It leverages ipcolor STREAM technology for high-definition and low-latency video transmission. Operating on the 5G wireless frequency band, it delivers stability, anti-interference capabilities, and increased performance. -
Page 6: Specifications
BZBGEAR BG-Air4Kast PRODUCT MANUAL Specifications Technical Specifications Power Supply DC 5V/2A (TX ≤ 6W, RX ≤ 4W) HDMI Version HDMI 2.0 HDCP Version HDCP 1.4 / HDCP 2.2 Maximum Transfer Rate 18Gbps 3840x2160@24/30/50/60Hz, Supported Resolutions 1080P@50/60Hz, 720P@50/60Hz, 1920x1200, 2560x1440, 2560x1600... -
Page 7: Panel Descriptions
BZBGEAR BG-Air4Kast PRODUCT MANUAL Panel Descriptions Transmitter (TX) Power Indicator The LED will illuminate blue when the device is powered on. WiFi Indicator Slow Flash: Waiting for connection Solid: Connection established Rapid Flash: SSID Pairing Mode Signal Indicator Off: No HDMI signal detected... - Page 8 BZBGEAR BG-Air4Kast PRODUCT MANUAL Receiver (RX) Power Indicator The LED will illuminate blue when the device is powered on. WiFi Indicator Slow Flash: Waiting for connection Solid: Connection established Rapid Flash: SSID Pairing Mode Signal Indicator Off: No HDMI signal detected...
-
Page 9: Connection Diagram
3. Plug the included power supplies into the devices to turn them on. 4. If multiple sets of BG-Air4Kast are being used at the same time and in the same area, in order to prevent interference switch each set of transmitters and receivers to a different channel after they have been manually paired using the SSID function. -
Page 10: Ssid Pairing Instructions
BZBGEAR BG-Air4Kast PRODUCT MANUAL SSID Pairing Instructions 1. Enter SSID pairing mode by holding the transmitter and receiver's channel switch buttons for five seconds. Both WiFi connection indicators will rapidly flash yellow. 2. When the SSID pairing is successful, the WiFi indicators on the transmitter and receiver will change from quick flashing to a slow flashing or steady on. -
Page 11: Tech Support
Copyright All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual contains no guarantee, standpoint expression or other implies in any form. Product specification and information in this manual is for reference only and subject to change... -
Page 12: Fcc Radiation Exposure Statement
BZBGEAR BG-Air4Kast PRODUCT MANUAL FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. FCC Warning This device complies with Part 15 of the FCC Rules.
