74 Procedures for installation of the switch
5

Connecting an AC cord to switch

This procedure describes the steps used to connect an AC power cord
to the switch.
Prerequisites
To connect AC power to the switch an appropriate AC power cord is
required.

Procedure Steps

Step
1
Copyright © 2008–2009 Nortel Networks

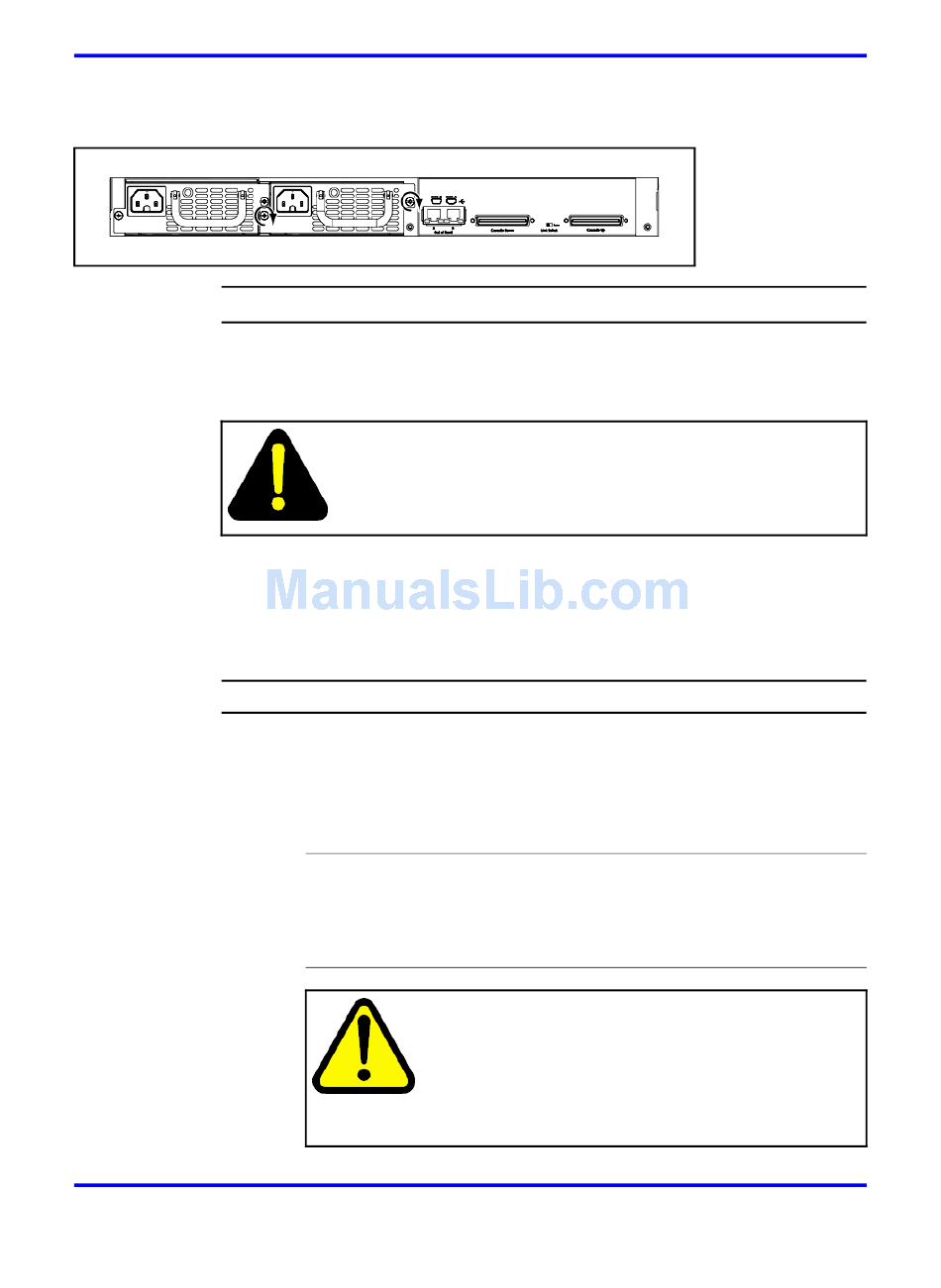

Secure the power supply module in the chassis by tightening
the two retaining screws. The following figure shows the captive
screws.
DANGER
Use only power cords that have a grounding path. Without a
proper ground, a person who touches the switch is in danger of
receiving an electrical shock. Lack of a grounding path to the
switch may result in excessive emissions.
Action
Connect the AC power cord to the back of the switch and then
connect the cord to an AC power outlet. The following figure
illustrates connecting the AC power cord to the switch back
panel.
Attention: The 5000 Series switches do not have an AC power
switch. When the power cord is connected to a suitable AC
power outlet, the switch powers up immediately.
WARNING
Disconnecting the AC power cord is the only way
to turn off AC power to the 5000 Series switches.
Always connect the AC power cord in a location
that can be reached quickly and safely in case of an
emergency. For a translation of this statement, see
"Translations of safety messages" (page

ERS 5000 Series Installation

NN47200-300 04.03
13 April 2009
--End--
13).
