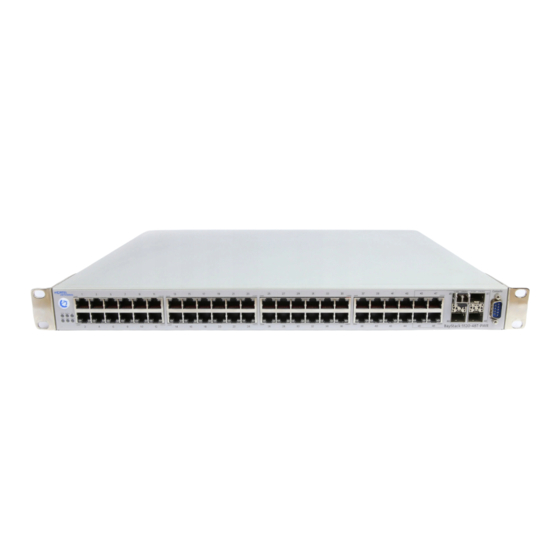

Nortel 5510 Installation Manual

Ethernet routing switch 5500 series
Hide thumbs Also See for 5510:
Table of Contents

Advertisement

Quick Links

See also: Engineering Manual
Nortel Ethernet Routing Switch 5500 Series
Installation — SFPs
NN47200-302 (323850-A)
.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5510 and is the answer not in the manual?

Questions and answers

Related Manuals for Nortel 5510

Summary of Contents for Nortel 5510

  • Page 1 Nortel Ethernet Routing Switch 5500 Series Installation — SFPs NN47200-302 (323850-A)
  • Page 2 Document status: Standard Document version: 03.01 Document date: 19 July 2007 Copyright © 2007, Nortel Networks All Rights Reserved. Sourced in Canada and the United States of America...

  • Page 3: Table Of Contents

    1000BASE-SX (LC) SFP specifications 25 1000BASE-SX (MT-RJ) SFP specifications 26 1000BASE-LX SFP specifications 26 1000BASE-XD CWDM SFP specifications 27 Copyright © 2007, Nortel Networks Nortel Ethernet Routing Switch 5500 Series Installation — SFPs NN47200-302 03.01 Standard 5.1 27 August 2007...
  • Page 4 4 Contents 1000BASE-ZX CWDM SFP specifications 28 1000BASE-BX DDI SFP specifications 28 Index Copyright © 2007, Nortel Networks Nortel Ethernet Routing Switch 5500 Series Installation — SFPs NN47200-302 03.01 Standard 5.1 27 August 2007...

  • Page 5: New In This Release

    New in this release The following sections detail what’s new in Nortel Ethernet Routing Switch 5500 Series Installation — SFPs for release 5.1. Features See the following sections for information about feature changes. 1000BASE-BX support The Ethernet Routing Switch 5500 Series supports the 1000BASE-BX SFP.
  • Page 6 6 New in this release Nortel Ethernet Routing Switch 5500 Series Installation — SFPs NN47200-302 03.01 Standard 5.1 27 August 2007 Copyright © 2007, Nortel Networks...

  • Page 7: Introduction

    "Safety and regulatory information" (page 9) • "Small form factor pluggable tranceivers" (page 17) • "SFP specifications" (page 23) Copyright © 2007, Nortel Networks Nortel Ethernet Routing Switch 5500 Series Installation — SFPs NN47200-302 03.01 Standard 5.1 27 August 2007...
  • Page 8 8 Introduction Nortel Ethernet Routing Switch 5500 Series Installation — SFPs NN47200-302 03.01 Standard 5.1 27 August 2007 Copyright © 2007, Nortel Networks...

  • Page 9: Safety And Regulatory Information

    Leave all components in their ESD-safe packaging until installation, and use only a static-shielding bag for all storage, transport, and handling. Copyright © 2007, Nortel Networks "Electrostatic discharge prevention" (page Nortel Ethernet Routing Switch 5500 Series Installation — SFPs NN47200-302 03.01 Standard 5.1 27 August 2007...

  • Page 10: Care Of Fiber Optic Equipment

    If the high error rate appears in the other direction, replace the cable. Copyright © 2007, Nortel Networks Nortel Ethernet Routing Switch 5500 Series Installation — SFPs NN47200-302 03.01 Standard...

  • Page 11: Fiber Optic Connector Care

    To avoid the transfer of oil or other contaminants from your fingers to the end face of the ferrule, handle connectors with care. Nortel Ethernet Routing Switch 5500 Series Installation — SFPs NN47200-302 03.01 Standard 5.1 27 August 2007...

  • Page 12: Cleaning Single Sc And Fc Connectors

    Do not allow the air extension tube to touch the bottom of the optical port. —End— Nortel Ethernet Routing Switch 5500 Series Installation — SFPs NN47200-302 03.01 Standard 5.1 27 August 2007...

  • Page 13: Cleaning Receptacles

    Do not discard the shroud. On retractable shroud connectors, hold the shroud in its retracted position. —End— —End— Nortel Ethernet Routing Switch 5500 Series Installation — SFPs NN47200-302 03.01 Standard 5.1 27 August 2007...
  • Page 14 Never look into an optical fiber or connector port. Always assume that fiber optic cables are connected to a light source. ATTENTION ATTENTION ATTENTION Nortel Ethernet Routing Switch 5500 Series Installation — SFPs NN47200-302 03.01 Standard 5.1 27 August 2007...
  • Page 15 Nortel Ethernet Routing Switch 5500 Series Installation — SFPs NN47200-302 03.01 Standard...
  • Page 16 16 Safety and regulatory information Nortel Ethernet Routing Switch 5500 Series Installation — SFPs NN47200-302 03.01 Standard 5.1 27 August 2007 Copyright © 2007, Nortel Networks...

  • Page 17: Small Form Factor Pluggable Transceivers

    Fiber optic cable is required for any reach over 100 m. Possible media include CAT5, single mode fiber, and multimode fiber. Possible connectors include LC, MT-RJ, and RJ-45. Copyright © 2007, Nortel Networks Nortel Ethernet Routing Switch 5500 Series Installation — SFPs NN47200-302 03.01 Standard 5.1 27 August 2007...

  • Page 18: Procedure Job Aid: Sfps And Common Applications

    Procedure job aid: SFP models without DDI support SFPs are hot-swappable input/output enhancement components designed for use with Nortel products to allow Gigabit Ethernet ports to link with other Gigabit Ethernet ports over various media types. The SFPs described in this section do not have Digital Diagnostic Interface capability, and are RoHS -E5 compliant.

  • Page 19: Procedure Job Aid: Sfp Models With Ddi

    Procedure job aid: SFP models with DDI Any Digital Diagnostic Indicating (DDI) SFP can be used in any Ethernet Routing Switch module that supports SFPs. The optical functions of the SFP are supported. Access to the DDI information will be provided in a future release.

  • Page 20: Installing An Sfp

    20 Small form factor pluggable transceivers The following table lists and describes the Nortel SFP models with DDI capability. All these SFPs use LC connectors. SFP models with DDI capability Model 1000BASE-T (RJ-45) 1000BASE-BX (LC type) For specifications for these SFPs, see...

  • Page 21: Procedure Job Aid: Locking And Extractor Mechanisms

    SFP transceivers; other locking/extractor mechanisms exist, although they are not shown here. SFP locking and extractor mechanisms: MT-RJ, dual LC Copyright © 2007, Nortel Networks —End— Nortel Ethernet Routing Switch 5500 Series Installation — SFPs NN47200-302 03.01 Standard 5.1 27 August 2007 Installing an SFP 21...

  • Page 22: Removing An Sfp

    If you discard the SFP, be sure to dispose of it according to all national laws and regulations. Copyright © 2007, Nortel Networks ATTENTION —End— Nortel Ethernet Routing Switch 5500 Series Installation — SFPs NN47200-302 03.01 Standard 5.1 27 August 2007...

  • Page 23: Sfp Specifications

    • "1000BASE-BX DDI SFP specifications" (page 28) SFP labels The Nortel label on a typical SFP contains a Nortel serial number, a bar code, a manufacturer’s code, an interface type, and a part number. Copyright © 2007, Nortel Networks Nortel Ethernet Routing Switch 5500 Series Installation —...

  • Page 24: General Sfp Specifications

    11.6 x 15.3 x 55.43 mm -5 to +85 C -40 to +85 C 300 mA unless otherwise stated 1.0 W unless otherwise stated ATTENTION Nortel Ethernet Routing Switch 5500 Series Installation — SFPs NN47200-302 03.01 Standard 5.1 27 August 2007...

  • Page 25: 1000Base-Sx (Lc) Sfp Specifications

    275 m using 62.5 µm MMF optic cable • up to 550 m using 50 µm MMF optic cable 850 nm 7.0 dB -10 to -4.0 dBm -17 dBm 0 dBm Nortel Ethernet Routing Switch 5500 Series Installation — SFPs NN47200-302 03.01 Standard 5.1 27 August 2007...

  • Page 26: 1000Base-Sx (Mt-Rj) Sfp Specifications

    62.5 µm multimode fiber • 9 µm single mode fiber (SMF) • Up to 550 meters (m) using MMF • Up to 10 kilometers (km) using SMF Nortel Ethernet Routing Switch 5500 Series Installation — SFPs NN47200-302 03.01 Standard 5.1 27 August 2007...

  • Page 27: 1000Base-Xd Cwdm Sfp Specifications

    fiber with no intermediate CWDM OADM or CWDM OMUX. To determine the expected signal loss for an optical add drop multiplexer (OADM), an optical multiplexer (OMUX), or fiber length, see Nortel Ethernet Routing Switch 8600 Planning and Engineering—Network Design (NN46205-200).
  • Page 28 Duplex LC SMF, 9 µm 1.0 Gbit/s 1.25 Gbit/s 0 C to 60 C 20 dB -3.0 to 2.0 dBm -23 dBm -3.0 dBm Nortel Ethernet Routing Switch 5500 Series Installation — SFPs NN47200-302 03.01 Standard 5.1 27 August 2007...
  • Page 29 1.0 Gbit/s 1.25 Gbit/s Up to 10 km 1310 nm and 1490 nm 11.0 dB 3.3 dB -3.0 dBm -9.0 dBm -19.5 dBm -3.0 dBm Nortel Ethernet Routing Switch 5500 Series Installation — SFPs NN47200-302 03.01 Standard 5.1 27 August 2007...
  • Page 30 SC connectors, cleaning 12 1000BASE-BX 28 1000BASE-LX 26 1000BASE-SX 25, 26 1000BASE-T 24 models SFP physical specifications 24 Nortel Ethernet Routing Switch 5500 Series Installation — SFPs NN47200-302 03.01 Standard 5.1 27 August 2007 digital diagnostic monitoring 19 digital diagnostic monitoring 19...
  • Page 32 Document date: 27 August 2007 To provide feedback or report a problem in this document, go to www.nortel.com/documentfeedback. Nortel, the Nortel logo, and the Globemark are trademarks of Nortel Networks. IEEE is a trademark of the Institute of Electrical and Electronics Engineers, Inc.
