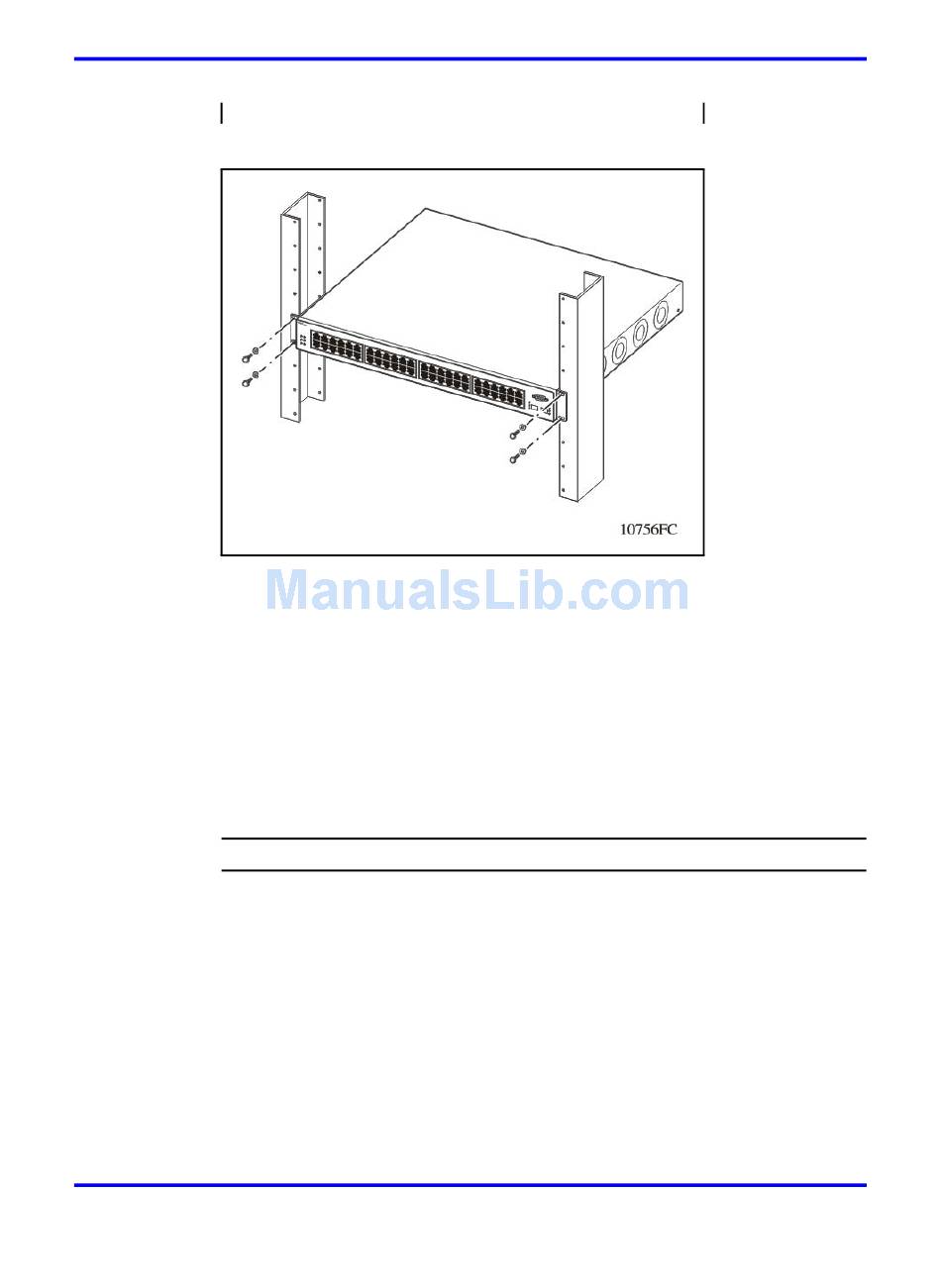

Figure 14
Rack mount
Installing a rear mounted switch in an equipment rack
The Ethernet Routing Switch 5530-24TFD and 5600 Series switches offer
the option of installing the switch in a rear mounted configuration. This
option allows the switch to be installed with the back panel facing forward.
This procedure describes how to install a rear-mounted switch.
Prerequisites
•
#2 Phillips screwdriver
Procedure Steps
Step
1
Copyright © 2008–2009 Nortel Networks
Action
Attach a bracket to each side of the switch using a #2 Phillips
screwdriver as shown in
switch brackets" (page
goes on the right side of the switch where the round fan vents
are located.
ERS 5000 Series Installation
NN47200-300 04.03
13 April 2009
Figure 15 "Attaching rear mounted
72). The bracket with the round holes
Switch placement 71
