Installing a front mounted switch in an equipment rack

This procedure describes how to install a front mounted switch in a rack.
Prerequisites
•
#2 Phillips screwdriver
Procedure Steps
Step
1
2

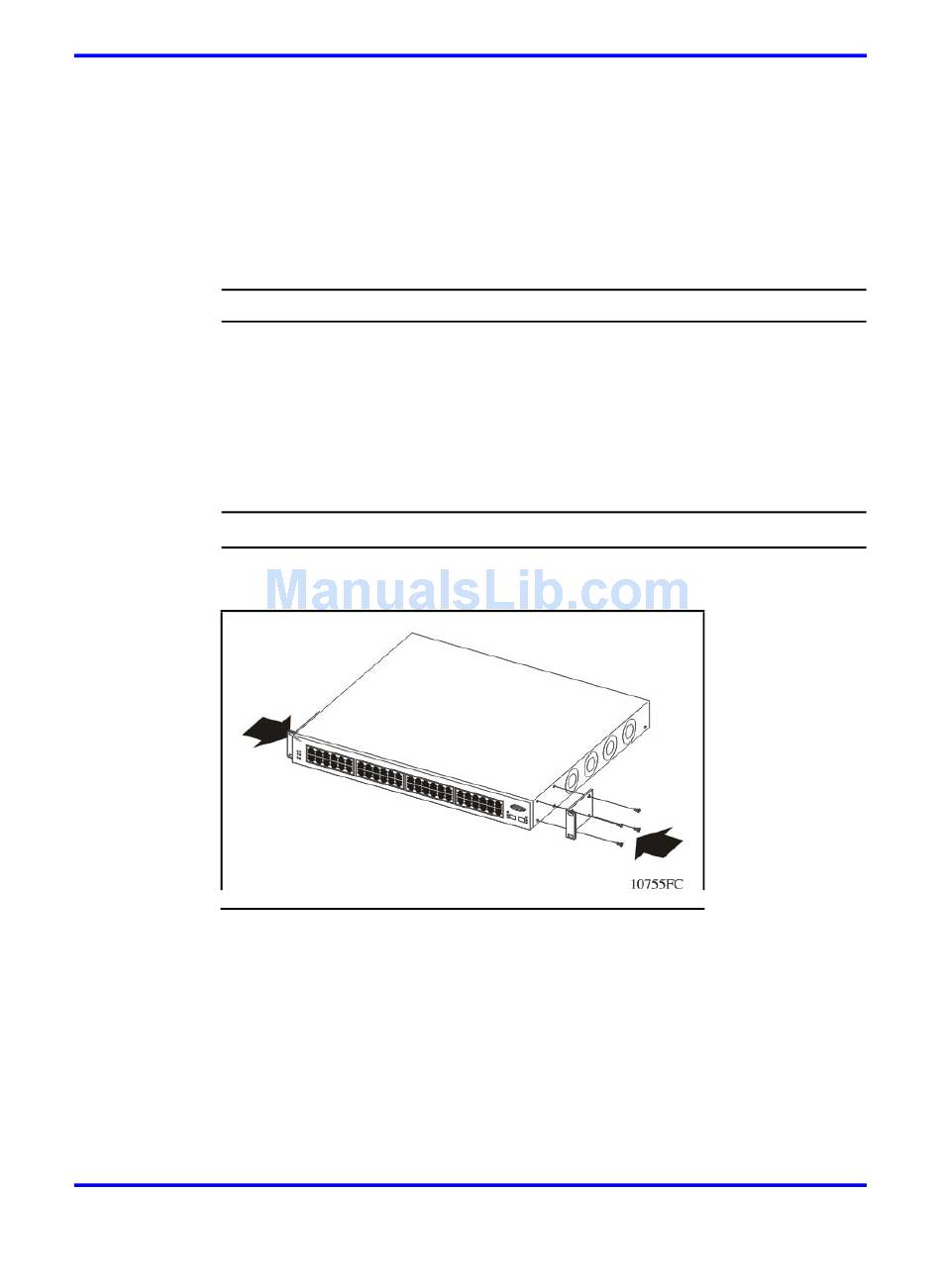

Figure 13
Bracket installation
Copyright © 2008–2009 Nortel Networks
Action
Attach a bracket to each side of the switch using a #2 Phillips
screwdriver as illustrated in
70). The bracket with the round holes goes on the right side of
the switch, where the round fan vents are located.
Slide the switch into the rack as illustrated in
mount" (page 71). Insert and tighten the rack-mount screws with
a #2 Phillips screwdriver.

ERS 5000 Series Installation

NN47200-300 04.03
13 April 2009
Figure 13 "Bracket installation" (page
Figure 14 "Rack
--End--
