Switch placement 67

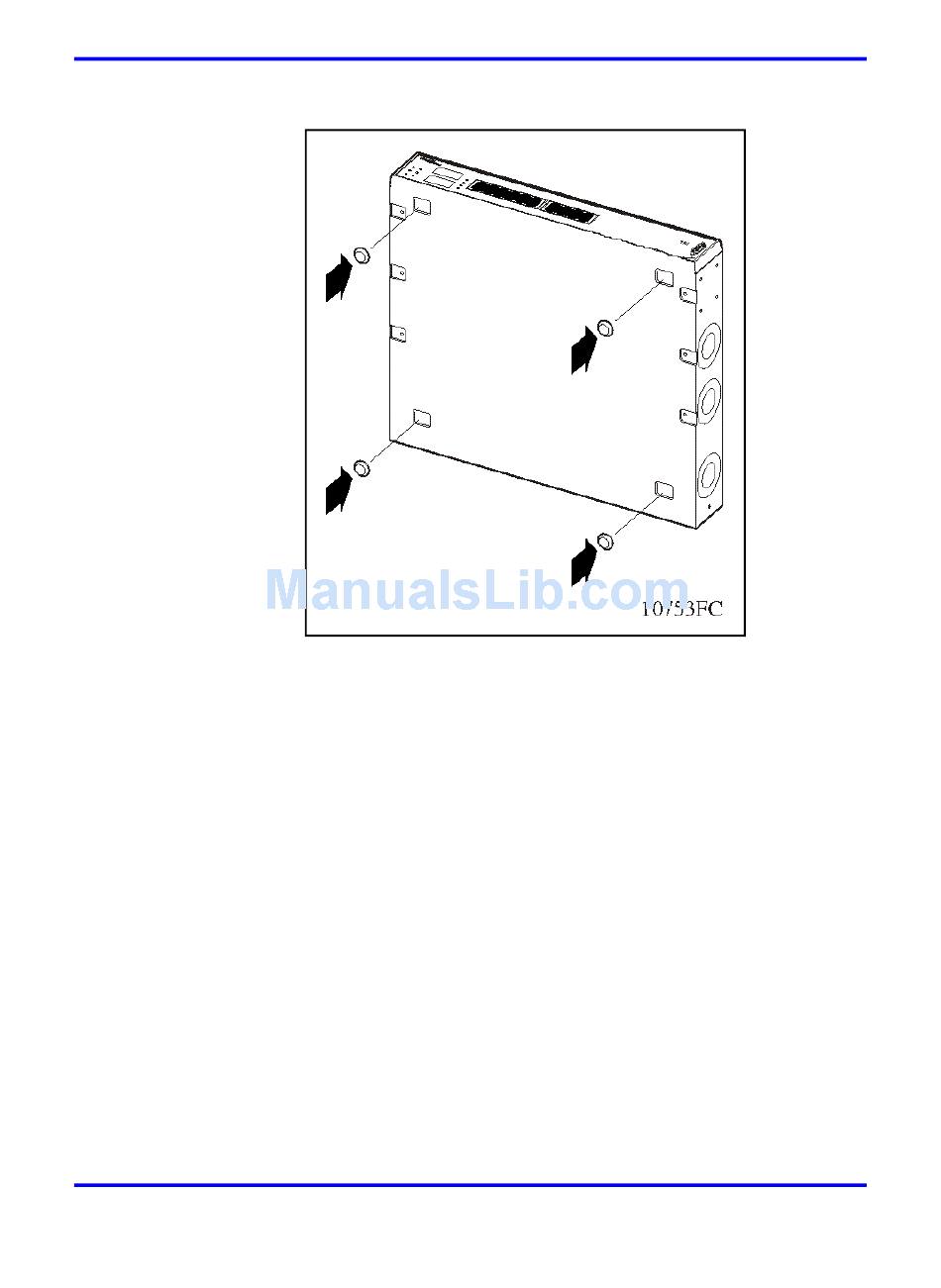

Figure 9
Attaching rubber footpads to a 5500 Series switch
Set the switch on a table or shelf as shown in
Figure 10
2
"Ethernet Routing Switch 5000 Series on a table or shelf" (page
68). Allow at least 2 inches (5.1 centimeters) on each side for
proper ventilation and at least 5 inches (12.7 centimeters) at the
back for power cord clearance.
ERS 5000 Series Installation
NN47200-300 04.03
13 April 2009
Copyright © 2008–2009 Nortel Networks
