54 Installing the switch

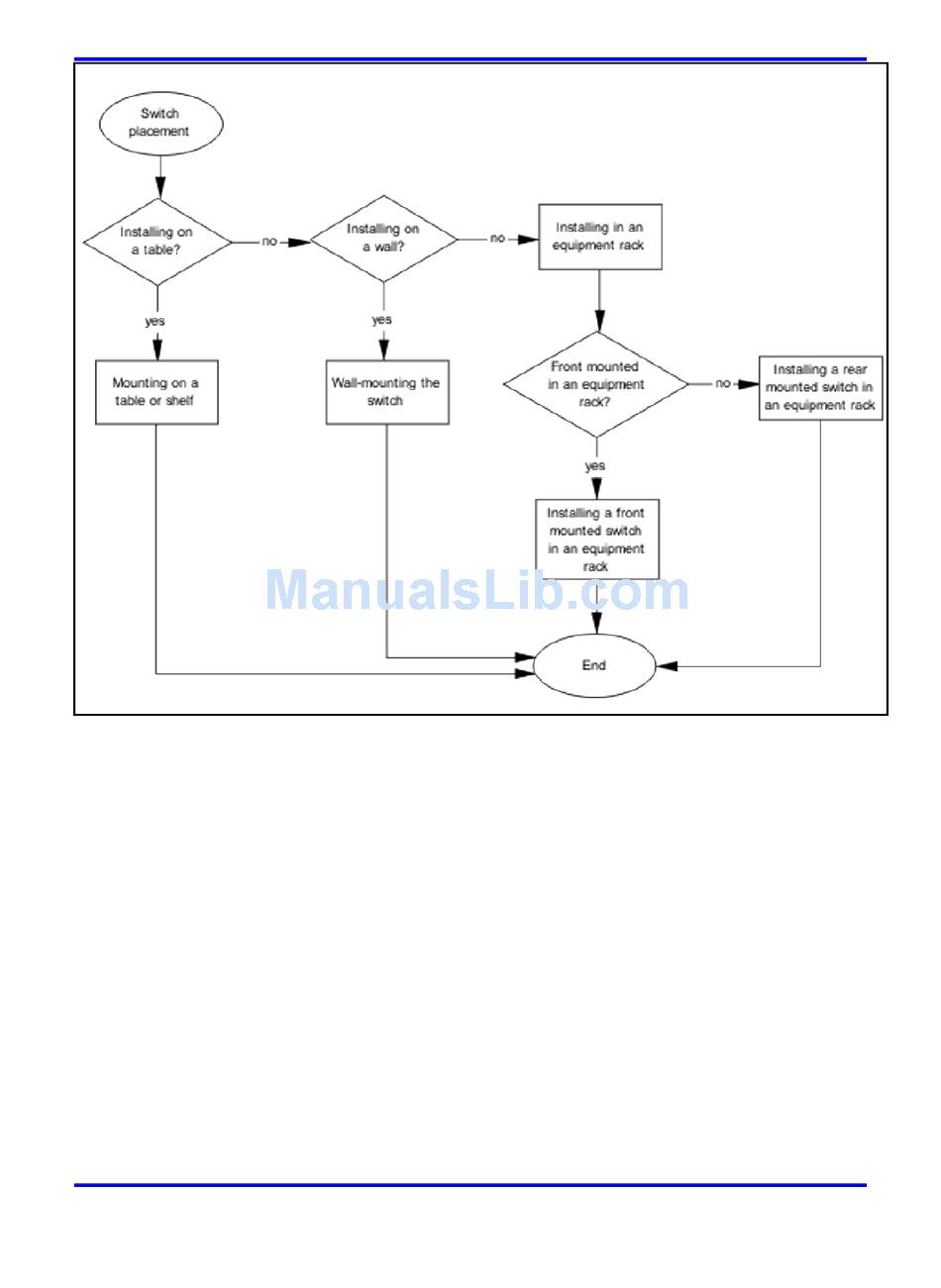

Navigation
•
"Mounting on a table or shelf" (page 66)
•
"Mounting on a wall" (page 68)
•
"Installing a front mounted switch in an equipment rack" (page 70)
•
"Installing a rear mounted switch in an equipment rack" (page 71)
Power connection
This task flow shows the sequence of procedures you perform to connect
power.
Copyright © 2008–2009 Nortel Networks
ERS 5000 Series Installation
NN47200-300 04.03
13 April 2009
