2.4
Connecting Power
The RUGGEDCOM RMC40 supports a single integrated high AC/DC or low DC power
supply
Note
•
•
•
RUGGEDCOM RMC40
Installation Manual, 11/2022, C79000-G8976-1009-10
1
RUGGEDCOM RMC40
1
Panel Adapter
2
Mounting Holes
3
Screw
4
Metal Clips
5

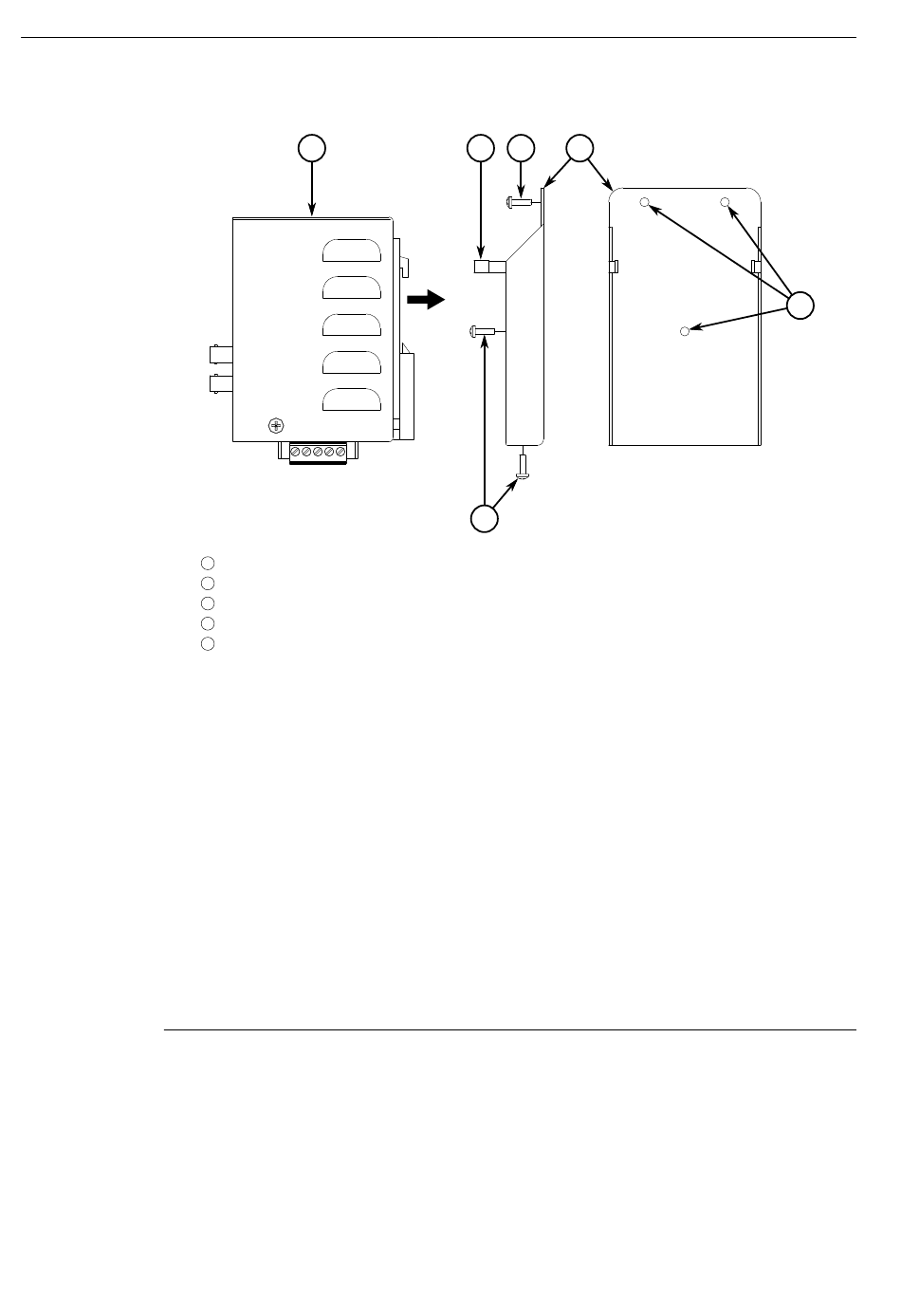

Figure 2.3
Panel Mounting
Place the panel adapter against the panel and align the adapater with the
mounting holes.
Secure the panel adapter using three #6-32 screws.
Insert the device into the adapter. Make sure the device is secured between the
two metal clips.
Install the screw previously removed from the bottom of the panel adapter.
For 110/230 VAC rated equipment, an appropriately rated AC circuit breaker
must be installed.
For 125/250 VDC rated equipment, an appropriately rated DC circuit breaker
must be installed.
Use minimum #16 gage copper wiring when connecting terminal blocks.
5
4
2
4
Installing the Device
2.4 Connecting Power
3
9
