For more information, refer to the "RUGGEDCOM RS900G User Guide" for the
RUGGEDCOM RS900G.

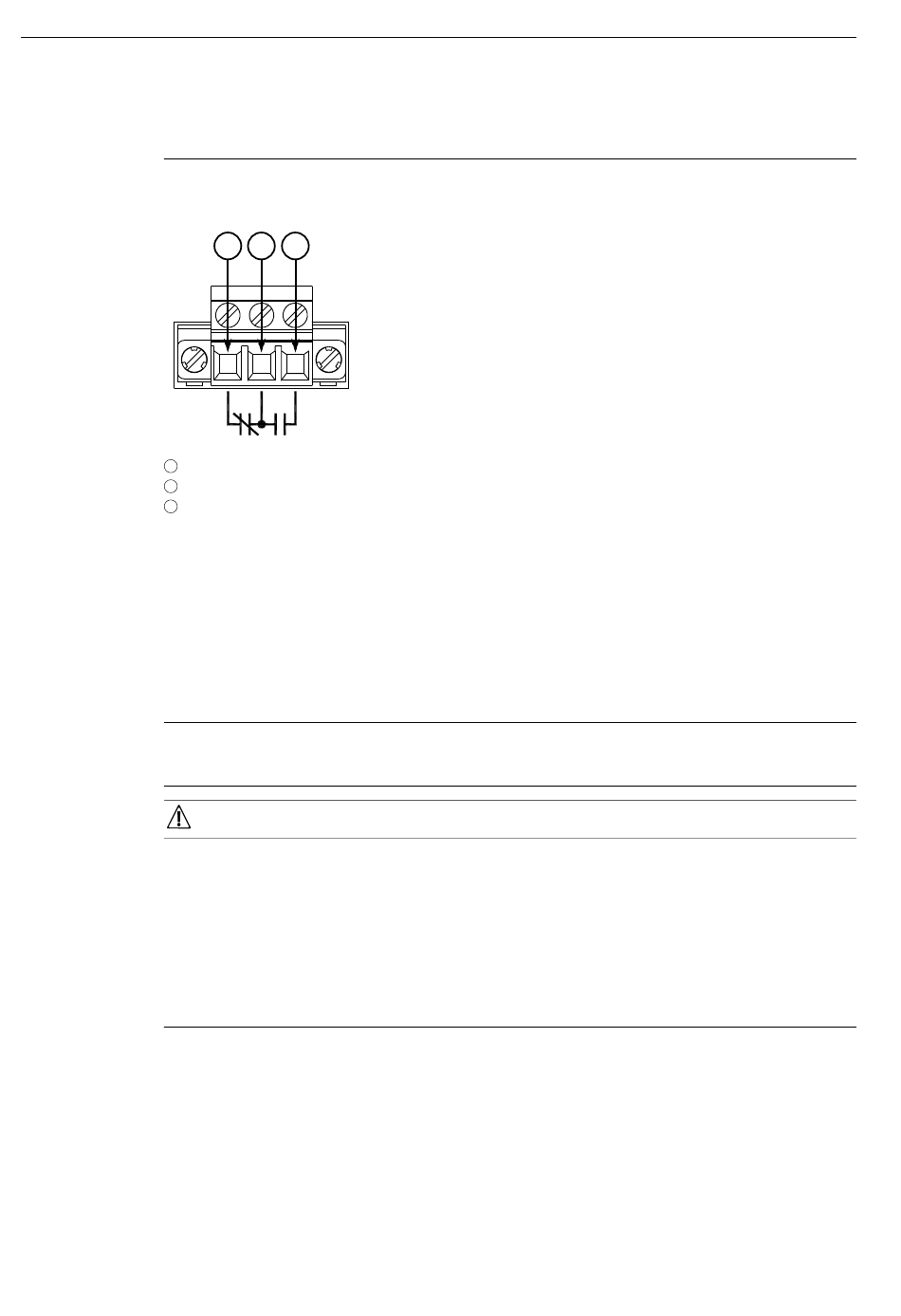

The following shows the proper relay connections.
1
2
3
Figure 2.5
2.6

Connecting Power

The RUGGEDCOM RS900G features an integrated high AC/DC or low DC power supply
that accepts input from redudant power sources.
Note
Power sources can be connected to either power supply terminal block on the device.
RUGGEDCOM RS900G
Equipment Manual, 10/2023, C79000-G8976-1025-10
1
2
3
Normally Closed
Common
Normally Open
Failsafe Alarm Relay Wiring
NOTICE
For 110/230 VAC rated equipment, an appropriately rated AC circuit breaker
must be installed.
For 125/250 VDC rated equipment, an appropriately rated DC circuit breaker
must be installed.
Use minimum #16 gage copper wiring when connecting terminal blocks.
Equipment must be installed according to applicable local wiring codes and
standards.
Installing the Device
2.6 Connecting Power
11
