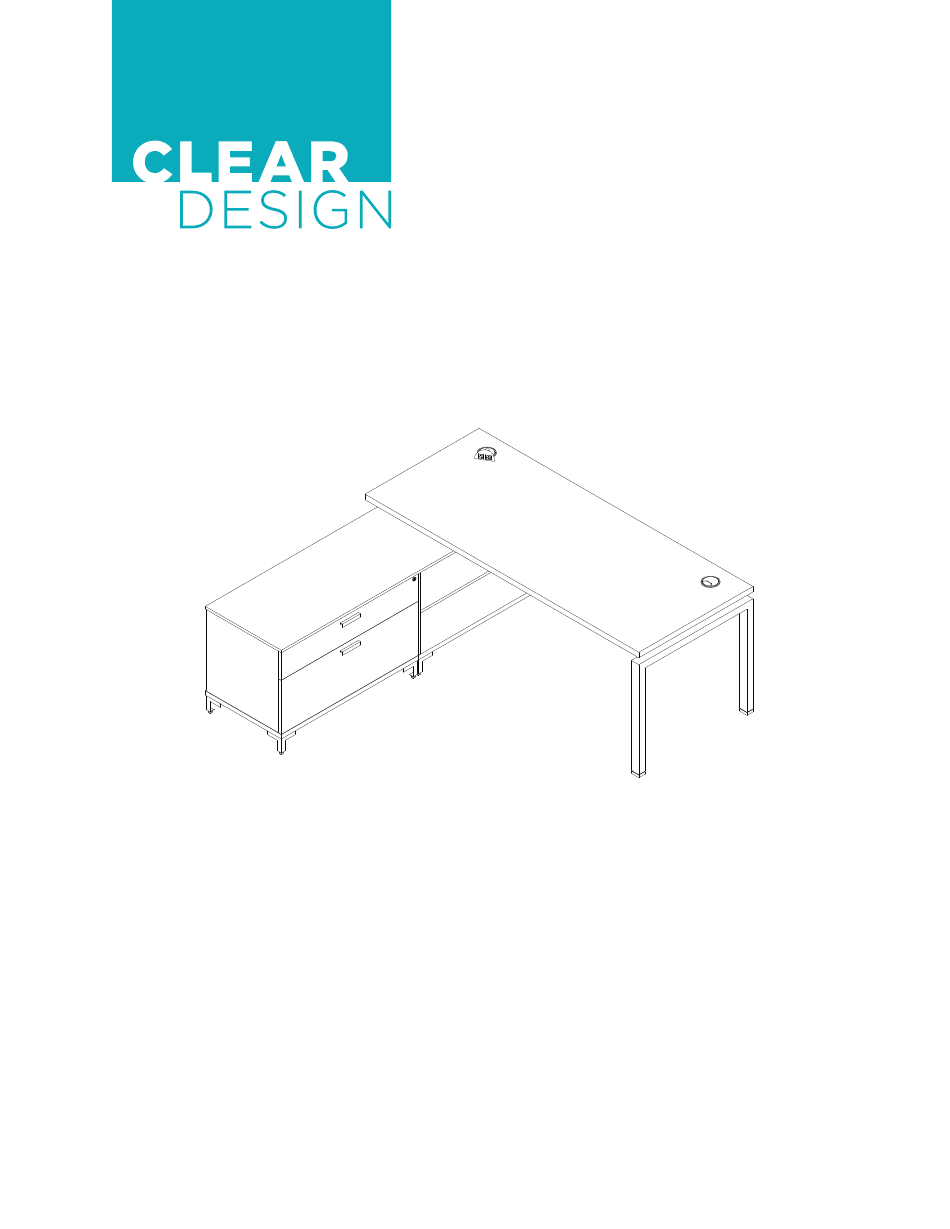

- Page 1 BL–7 BLADE L-SHAPE STORAGE SUPPORTED Includes Add-ons A1 | A4 | A5 | A6 | A7 | A8 | A9 *General Guide | See Master Plan...
- Page 2 EDITION CODE BLLBFV2 – Low Box/File Lateral ............1 BLLOSV2 – Low Open Shelf Lateral ............. 1 Merging Laterals ..................1 BL–7 – BLADE L-Shape - Storage Supported ........1 Add-Ons – BLADE Cable Tray (Surface Mounted) ........4 – Modesty Panel .................. 7 –...
- Page 3 LOW OPEN SHELF LATERAL PARTS LIST ITEM PRODUCT CODE CODE Top Panel (not needed) Bottom Panel Fixed Shelf Panel End Panels Back Panel Corner Foot...
- Page 4 1 | SCREW CAM PINS INTO BOTTOM PANEL Requires 6 cam pins. Cam Pin 2 | INSERT HARDWARE INTO END PANELS Requires 4 Wooden Dowels, 4 cam locks and 4 cam pins. Wooden Dowel Cam Pin Cam Lock...
- Page 5 3 | INSERT HARDWARE INTO BACK PANEL Requires 2 cam pins and 8 cam locks Cam Pin Cam Lock 4 | INSERT CAM LOCKS INTO FIXED SHELF Requires 6 cam locks. Cam Lock...
- Page 6 5 | SECURE FIXED SHELF TO BACK PANEL Align the cam pins so that they sit inside of open cam locks. Use a screwdriver to turn cam locks clockwise and lock into place. 6 | SECURE END PANELS Align the cam pins so that they sit inside of open cam locks. Use a screwdriver to turn cam locks clockwise and lock into place.
- Page 7 7 | SECURE BOTTOM PANEL Align the cam pins so that they sit inside of open cam locks. Use a screwdriver to turn cam locks clockwise and lock into place. 8 | INSERT CAM LOCKS INTO FIXED SHELF Secure foot to each corner using 4 wood screws. DO NOT Install Top Panel...
- Page 8 LOW BOX/FILE LATERAL PARTS LIST ITEM PRODUCT CODE CODE BLLBFV2 Low Box/File Lateral Corner Foot Handles GBLLT2 Laminate Merging Top 1 | SECURE FEET TO STORAGE AND FLIP Flip storage piece so it is laying on its back; secure foot to each corner using 4 wood screws.
- Page 9 2 | ATTACH HANDLES AND REMOVE DRAWERS Using 2 bolts each, attach handles to front of drawers. Once secure, remove drawers from storage piece. 3 | REMOVE STORAGE TOP Locate the 6 cam locks across top edge on the inside of the storage piece.
- Page 10 4 | CONNECT BRACKETS TO TOP PANEL Attach 12 corner brackets to top panel using wood screws in the places shown below. 5 | ATTACH TOP TO STORAGE Set storage side-by-side then align top panel so it is flush with sides, back and front of storage.
- Page 11 BLADE U-SHAPE BL–7 PARTS LIST ITEM PRODUCT CODE CODE BL24/BL30 BLADE Leg BASB72 Support Bar Laminate Surface Laminate Storage BLSS Surface Stand Kit (set of 2)
- Page 12 1 | SECURE LEG TO SURFACE Place assembled laminate storage into final position. Secure the BL24/BL30 leg to the surface. Insert wood screws through the leg bracket and into the underside of the surface. 2 | CONNECT STAND TO BRACKET, APPLY TAPE Measure, cut and place tape on the bottom of the surface stands, leave paper backing on the side facing out.
- Page 13 3 | ALIGN AND ATTACH BRACKETS TO SURFACE Align bracket with the edge of the outside of the surface then ” measure between the mounting bracket and front/back of the surface. Insert 4 wood screws per surface stand. ” 4 | FLIP AND ALIGN BRACKETS Flip surface assembly upright, place stands on laminate storage and align as desired.
- Page 14 7 | DETACH BRACKET FROM STAND TO SECURE Remove bolts holding the stand and bracket together and carefully lift the surface assembly away from the mounting brackets. ” Mounting brackets should remain on the surface. Use long wood screws to secure bracket. 8 | PLACE STAND ONTO BRACKET AND SECURE Check and tighten any bolts and pieces to finish.
- Page 15 BLADE CABLE TRAY BL–7 | A1 PARTS LIST PRODUCT CODE BCTSM (set of 2) BNTEC *if applicable BL-8 IF WORKSTATIONS HAVE POWER, REFER TO BLADE POWER GUIDE...
- Page 16 1 | ATTACH TRAY HANGERS AND END CAPS* Align slots on the cable tray and secure with two bolts from the bottom. These hangers will mount to workstation surface. Insert Beam Grommet Covers. *NOTE: End Caps (BNTEC) are optional. Follow the same install process with or without end caps.
- Page 17 3 | SURFACE MOUNT CABLE TRAY Align cable tray flush to the edge of the surface (on 24" or 30" surfaces). Insert wood screws through the hangers and into the underside of the surface. Tighten beam lock. NOTE: Position may be affected if modesty panel is being installed. Align Flush BL-8 IF WORKSTATIONS HAVE POWER, REFER TO...
- Page 18 MODESTY PANEL BL–7 | A4 PARTS LIST PRODUCT CODE Brackets (set of 2) • Steel - Included in Box • Laminate - BMPBFB BMP##/GLMP## * Process is the same for steel and laminate...
- Page 19 1 | SECURE BRACKET TO MODESTY PANEL Using 4 machine screws, secure brackets to the back of the steel modesty panel. Using 4 wood screws, secure brackets to the back of the laminate modesty panel. NOTE: Holes are not pre-drilled on laminate panels. 2 | ATTACH MODESTY PANEL TO WORKSTATION Center the panel in reference to the width of the surface and screw modestly panel directly to the bottom of your surface with wood...
- Page 20 END PANELS BL–7 | A5 PARTS LIST PRODUCT CODE LEPBL1 GBEP## * Quantities are for one panel...
- Page 21 1 | SECURE BRACKET TO END LEGS Attach two brackets to each BLADE end leg using the self-tapping screws. 1. Inset – The back of the bracket will align flush with edge of the leg. ” 2. Flush – The back of the bracket will be from the edge back edge of the leg.
- Page 22 END PANELS BL–7 | A6 & A7 PARTS LIST PRODUCT CODE LEPBL1 GBEPLH## or GBEPSS## * Quantities are for one panel...
- Page 23 1 | SECURE BRACKET FOR OUTER PANELS TO END LEGS Attach 4 brackets to each BLADE end leg using the self-tapping screws. The front of the bracket will align flush with outside edge of the leg. Align Flush 2 | ATTACH END PANEL Slide end panels into place and adjust until flush with bracket.
- Page 24 END PANELS BL–7 | A7 PARTS LIST PRODUCT CODE BEP##...
- Page 25 1 | SECURE PANELS TO END LEGS Slide the end panel into place and adjust until either flush with outside of leg or slightly recessed. Align Flush Slightly Recessed 2 | ATTACH END PANEL Use 4-6 self-tapping screws to secure panel to each leg.
- Page 26 TRANSACTION COUNTER BL–7 | A8 PARTS LIST PRODUCT CODE KIT-GTC1259 Includes: 1 Frosted Glass Transaction Counter, 1 Threaded Rod, 3 Stainless Steel Tubes, 3 C-Cover, 3 C-Bases...
- Page 27 1 | THREAD ROD INTO GLASS Place glass facing upward and thread the rod into the pre-installed glass fittings. NOTE: Repeat for all three rods. 2 | SLIDE STAINLESS STEEL TUBE OVER ROD Lower the tube over the threaded rod and position to rest flush over the glass fitting.
- Page 28 3 | SLIDE BASE COVER OVER TUBE Lower the base cover over the tube and let it rest on top of the glass fitting. NOTE: Repeat for all three base covers. 4 | SLIDE BASE INTO TUBE AND TIGHTEN Place the base fitting into the end of the tube, make sure it is flush. Thread the nut onto the exposed threaded rod and tighten.
- Page 29 5 | MARK PLACEMENT OF COUNTER Align counter to center of surface and mark approximate area for mounts using 3 strips of tape. Use a measuring tape to mark 5" from the surface edge on each piece of tape.
- Page 30 6 | PLACE STAND ON TAPE MARKS AND ALIGN Align the front edges of the stand bases with the marks on the tape. Insert 1 wood screw through the center stand and remove tape. Reposition the two outer stands to their aligned marks (if needed).
