BFSLM.UB

UNIVERSAL SURFACE

MOUNT BRACKET

SLIM PEDESTAL

General Installation Guide

Need help?

Do you have a question about the BFSLM.UB and is the answer not in the manual?

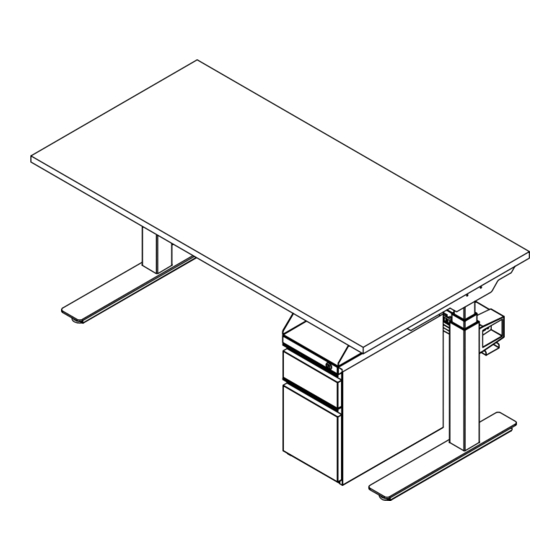

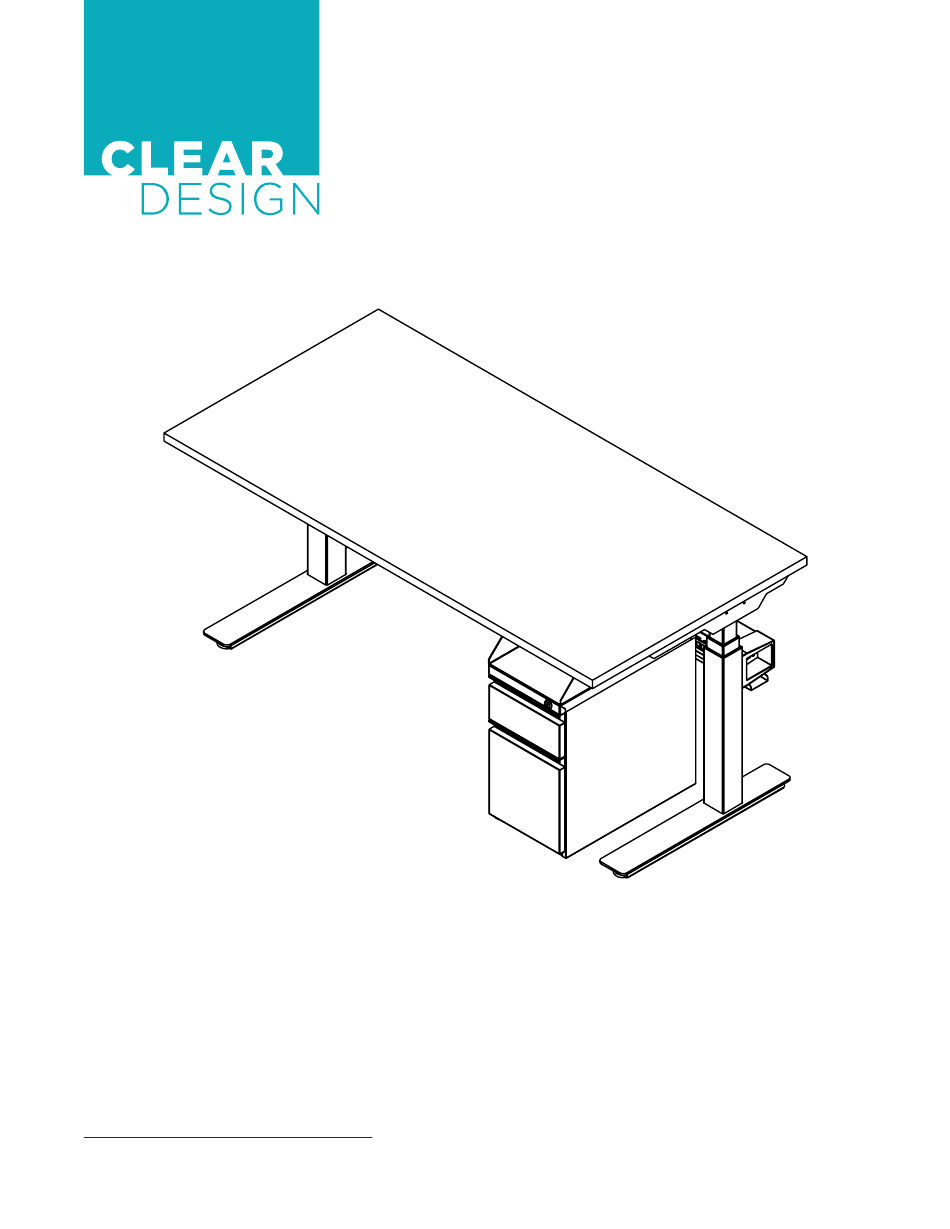

Page 1 BFSLM.UB UNIVERSAL SURFACE MOUNT BRACKET SLIM PEDESTAL General Installation Guide...
Page 2 SURFACE MOUNT BRACKET OVERVIEW Slim Pedestal Quantities are for a single universal surface mount bracket. Parts may vary depending on project, but install steps will remain the same.
Page 3: Parts List
PARTS LIST CODE DESCRIPTION Universal Surface Mount Bracket Adjustable Tabs BFSLM.UB Non-Slip Mat Machine Screws Wood Screws BFSLM Slim Pedestal...
Page 4 1 | DETERMINE DESK TYPE FOR INSTALLATION Use the chart below to identify which mounting adjustable tab orientation will be used for desk type. Mounting Adjustable Surface Type Configuration Distance Bracket Depth “A” Orientation 24” Flush Rear Facing BOOST Height-Adjustable 30”...
Page 5 Front Facing Rear Facing Side Facing...
Page 6 2 | ATTACH SURFACE MOUNT BRACKET TO SLIM PEDESTAL Attach surface mount bracket to slim pedestal using machine screws. Install adjustable tabs accordingly to desk type. NOTE: Reference step 1 chart for installing adjustable brackets. 3 | INSTALL NON-SLIP MAT Place the non-slip mat on top of the installed surface mount bracket.
Page 7 4 | ATTACH SLIM PEDESTAL TO SURFACE Install slim pedestal to surface using wood screws. The pedestal will be installed 5” from surface’s edge. 5"...
