Teknion leverage Installation Manual

End trims & top trims
Hide thumbs Also See for leverage:

Advertisement

Table of Contents

leverage
Installation Guides
Section:
PANEL CONNECTIONS & TRIMS
Description:
END TRIMS & TOP TRIMS

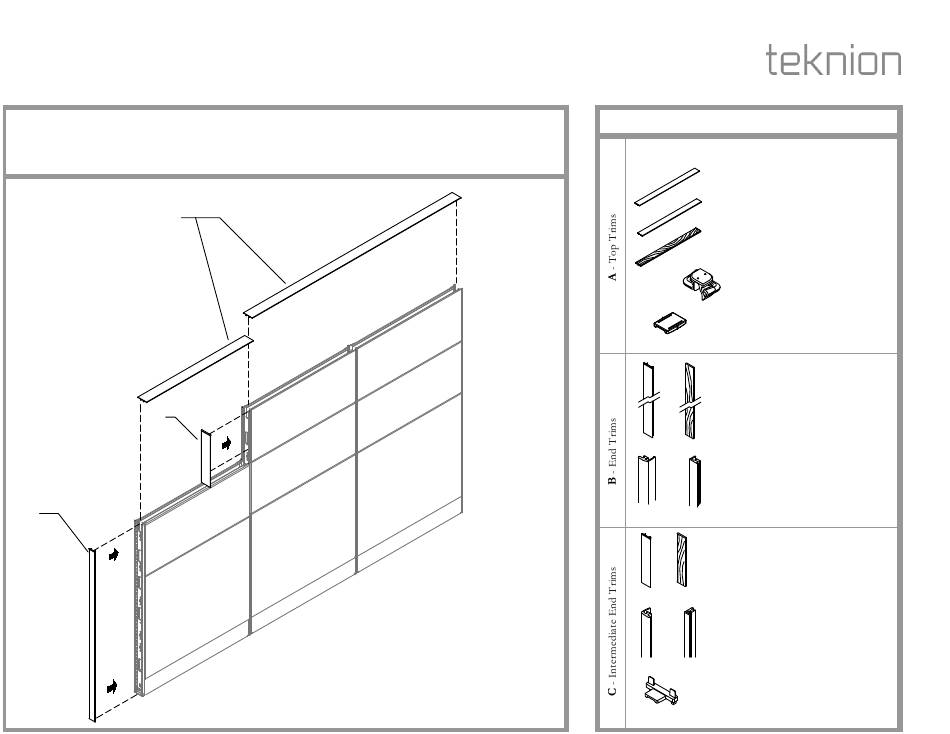

Panel End Trim (KTE/KTED), Intermediate Panel End Trim (KTI/KTID),
Top Trim (KTR/KTRD), Continuous Top Trim (KTRC/KTRCD), Top Trim
A1
C1
B1
(KTKT/KTKC)
Date:
May 2020
TLE_211
Part and Product Identification
A1 -Top Trim (A23-1366) x1
OR
Thick Top Trim (A23-4597) x1
OR
Wooden Top Trim (N09-1184) x1
A2 -Top Trim Clip
(B02-0329) x 1
A3 -Top Trim Connection Clip
(B02-0202) x 1
B1 -Panel End Trim
(N02-0497) x 1
OR
OR
Panel End Trim - Wood
(N09-1185) x 1
B2 -Full Panel End Gasket
(B11-0178) x 2
OR
OR
Full Panel Slim End Gasket
(B11-0573) x 2
C1 -Intermediate Panel End Trim
(N02-0627) x 1
OR
OR
Intermediate Panel End Trim - Wood
(N09-1186) x 1
C2 -Intermediate End Gasket
(B11-0179) x 2
OR
OR
Intermediate Slim End Gasket
(B11-0575) x 2
C3 -End Trim to Intermediate
Trim Connecting Pin
(B02-0207) x 1
Page No:
1 of 8
Rev. No: 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the leverage and is the answer not in the manual?

Questions and answers

leslie sharp
July 21, 2025

is there a guide for installing power pole for Leverage?

0

Related Manuals for Teknion leverage

Summary of Contents for Teknion leverage

  • Page 1 Installation Guides Section: PANEL CONNECTIONS & TRIMS Date: May 2020 Page No: 1 of 8 Description: END TRIMS & TOP TRIMS TLE_211 Rev. No: 1 Panel End Trim (KTE/KTED), Intermediate Panel End Trim (KTI/KTID), Part and Product Identification Top Trim (KTR/KTRD), Continuous Top Trim (KTRC/KTRCD), Top Trim...
  • Page 2 Installation Guides Section: PANEL CONNECTIONS & TRIMS Date: May 2020 Page No: 2 of 8 Description: END TRIMS & TOP TRIMS TLE_211 ATTACH TOP TRIM CLIPS PLACE TOP TRIM ONTO PANEL(S) Top Trim Shown Continuous Top Trim Shown NOTE: Make sure Clips are fully engaged.
  • Page 3 Installation Guides Section: PANEL CONNECTIONS & TRIMS Date: May 2020 Page No: 3 of 8 Description: END TRIMS & TOP TRIMS TLE_211 CONNECT TWO TOP TRIMS TOGETHER STEP 3: Slidr the Connection Clip into the Trim slot, attach the Top Trim to connect to, and slide it against the other one using the Connection Clip as alignment.
  • Page 4 Installation Guides Section: PANEL CONNECTIONS & TRIMS Date: May 2020 Page No: 4 of 8 Description: END TRIMS & TOP TRIMS TLE_211 END TRIM INSTALLATION (STD WIDTH) Top View Shown. STEP 4: Slide Gaskets onto Panel grooves and attach End Trim by pushing it against the Panel side.
  • Page 5 Installation Guides Section: PANEL CONNECTIONS & TRIMS Date: May 2020 Page No: 5 of 8 Description: END TRIMS & TOP TRIMS TLE_211 END TRIM INSTALLATION (CORRIDOR WIDTH) Top View Shown. Tear away part of End Gasket on the side where Corridor Width Elements are placed.
  • Page 6 Installation Guides Section: PANEL CONNECTIONS & TRIMS Date: May 2020 Page No: 6 of 8 Description: END TRIMS AND TOP TRIMS TLE_211 ATTACH CONNECTION CLIP FOR INTERMEDIATE END TRIM (IF APPLICABLE) Back View Shown. STEP 6: Slide Intermediate Connection Clip in to the Top Trim slot, then snap Top Trim onto Panel.
  • Page 7 Installation Guides Section: PANEL CONNECTIONS & TRIMS Date: May 2020 Page No: 7 of 8 Description: END TRIMS & TOP TRIMS TLE_211 INTERMEDIATE END TRIM INSTALLATION (STANDARD ELEMENT WIDTH) Top View Shown. STEP 7: Slide Gaskets into Panel Slots, place the Intermediate End Trim onto the Connecting Pin and snap into the Panel.
  • Page 8 Installation Guides Section: PANEL CONNECTIONS & TRIMS Date: May 2020 Page No: 8 of 8 Description: END TRIMS & TOP TRIMS TLE_211 INTERMEDIATE END TRIM INSTALLATION (CORRIDOR ELEMENT WIDTH) Tear away part of End Gasket on the side where Corridor Width Elements are placed.
