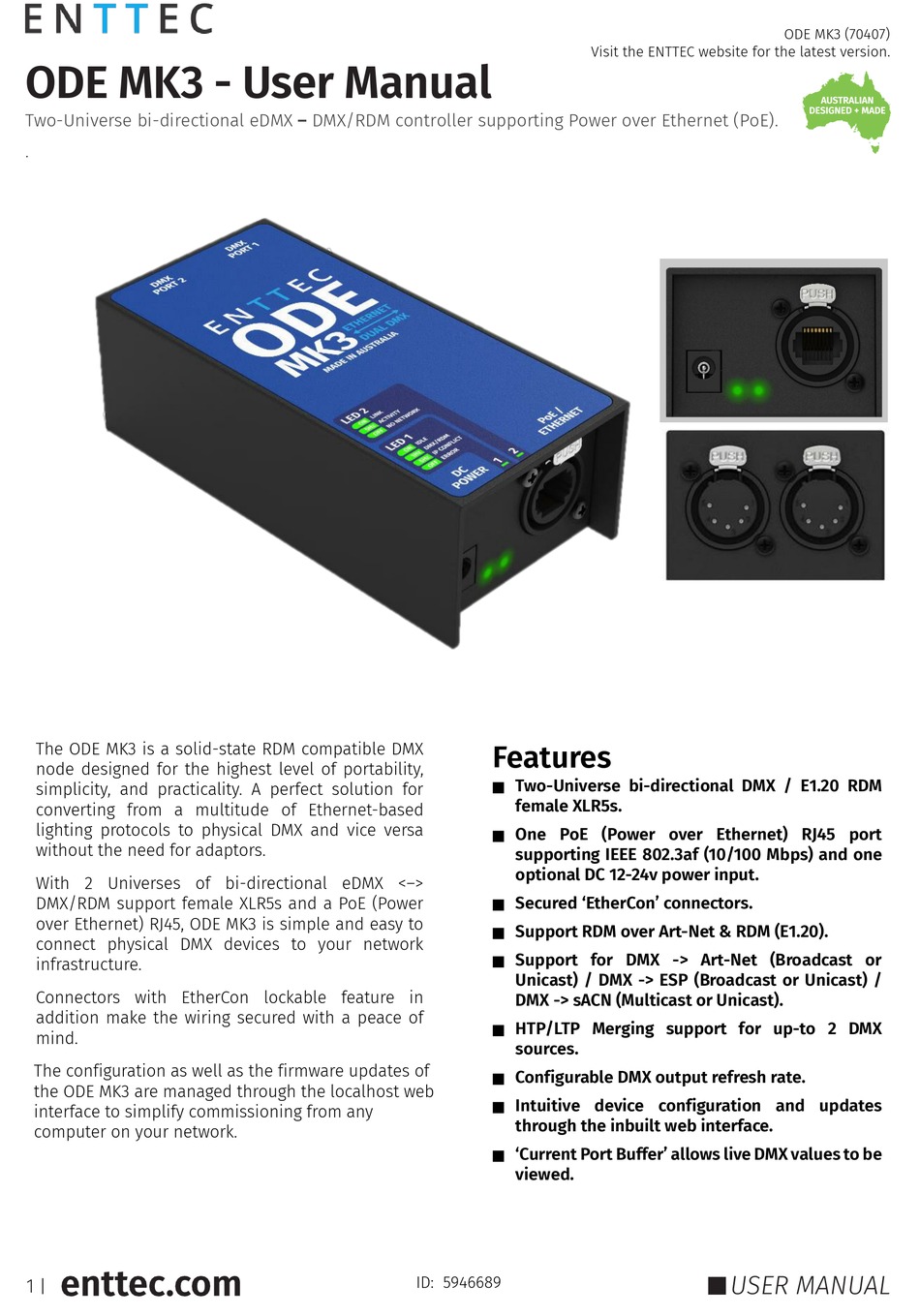

ODE MK3 - User Manual
Two-Universe bi-directional eDMX – DMX/RDM controller supporting Power over Ethernet (PoE).
.

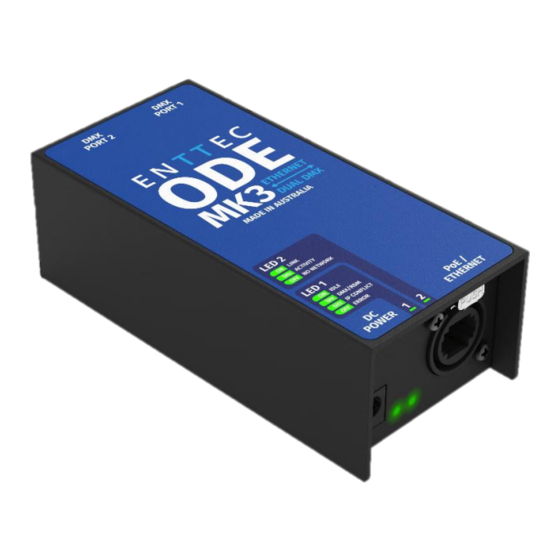

The ODE MK3 is a solid-state RDM compatible DMX
node designed for the highest level of portability,
simplicity, and practicality. A perfect solution for
converting from a multitude of Ethernet-based
lighting protocols to physical DMX and vice versa
without the need for adaptors.
With 2 Universes of bi-directional eDMX <–>
DMX/RDM support female XLR5s and a PoE (Power
over Ethernet) RJ45, ODE MK3 is simple and easy to
connect physical DMX devices to your network
infrastructure.
Connectors with EtherCon lockable feature in
addition make the wiring secured with a peace of
mind.
The configuration as well as the firmware updates of
the ODE MK3 are managed through the localhost web
interface to simplify commissioning from any
computer on your network.
1
|
Features
Two-Universe bi-directional DMX / E1.20 RDM
female XLR5s.
One PoE (Power over Ethernet) RJ45 port
supporting IEEE 802.3af (10/100 Mbps) and one
optional DC 12-24v power input.
Secured 'EtherCon' connectors.
Support RDM over Art-Net & RDM (E1.20).
Support for DMX -> Art-Net (Broadcast or
Unicast) / DMX -> ESP (Broadcast or Unicast) /
DMX -> sACN (Multicast or Unicast).
HTP/LTP Merging support for up-to 2 DMX
sources.
Configurable DMX output refresh rate.
Intuitive device configuration and updates
through the inbuilt web interface.
'Current Port Buffer' allows live DMX values to be
viewed.
ID: 5946689
Visit the ENTTEC website for the latest version.
USER MANUAL
ODE MK3 (70407)
..

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ODE MK3 and is the answer not in the manual?

Questions and answers

Related Manuals for Enttec ODE MK3

Summary of Contents for Enttec ODE MK3

  • Page 1 With 2 Universes of bi-directional eDMX <–> DMX/RDM support female XLR5s and a PoE (Power Secured ‘EtherCon’ connectors.  over Ethernet) RJ45, ODE MK3 is simple and easy to Support RDM over Art-Net & RDM (E1.20).  connect physical DMX devices to your network Support for DMX ->...

  • Page 2: Table Of Contents

    ODE MK3 (70407) Visit the ENTTEC website for the latest version. Content Safety ............................................3 Electrical safety ............................................. 3 System Planning and Specification ....................................3 Protection from Injury During Installation ..................................4 Installation Safety Guidelines ....................................... 4 Wiring Diagrams ........................................4 Hardware Features ........................................

  • Page 3: Safety

    ENTTEC device. If you are in any doubt about system safety, or you plan to install ENTTEC device in a configuration that is not covered within this guide, contact ENTTEC or your ENTTEC supplier for assistance.

  • Page 4: Protection From Injury During Installation

    Keep the ODE MK3 and its accessories in its protective packaging until final installation.  Note the serial number of each ODE MK3 and add it to your layout plan for future reference when  servicing.

  • Page 5: Hardware Features

    ▪ IEEE 802.32af PoE (active PoE) DMX Connectors The ODE MK3 features two 5-Pin Female XLR bi-directional DMX ports, which can be used either for DMX in or DMX out, depending on the settings set within the Web Interface. 5pin DMX OUT/ DMX IN: Pin 1: 0V (GND) ...

  • Page 6: Poe (Power Over Ethernet)

    Status Link 5 Hz ACTIVITY NO NETWORK ▪ LED 1 & 2 both blink at 1Hz: When both LED blink at the same time, it indicates the ODE MK3 equires a firmware update or a reboot. PoE (Power over Ethernet) The ODE MK3 supports IEEE 802.3af Power over Ethernet.

  • Page 7: Merging

    Out of the Box The ODE MK3 will be set to a DHCP IP address as default. If the DHCP server is slow to respond, or your network does not have a DHCP server, the ODE MK3 will fall back to the Static IP address which will be 192.168.0.10 as default.

  • Page 8: Web Interface

    192.168.0.20. It is also recommended that all devices Subnet Mask are the same across your network. Home The landing page for the ODE MK3 web interface is the Home tab. This tab is designed to give you a read- only device overview. This will display:...

  • Page 9: Settings

    Ethernet-DMX protocol’s input Universe. Refresh Rate: The rate at which the ODE MK3 will output the data from its DMX port (40 Frames per second is default). It will repeat the last received frame to comply with DMX standard. Options: additional configuration is available depending on port type and protocol.

  • Page 10: Network Stats

    Precedence) merge. More information can be found in the Functional Features section of this document. Save settings: All changes must be saved to take effect. The ODE MK3 takes up-to 10 seconds to save. Factory Default: Factory resetting the ODE MK3 results in the following: Resets the device name to defaults ...

  • Page 11: Servicing, Inspection & Maintenance

    After the update has completed, the web interface will load the Home tab, where you can check the update was successful under Firmware Version. Once the Home tab has loaded, the ODE MK3 will resume operation. Servicing, Inspection & Maintenance The device has no user serviceable parts.

  • Page 12: Package Contents

     Ethernet Cable  Power supply with AU/EU/UK/US adapters  Ordering Information For further support and to browse ENTTEC’s range of products visit the ENTTEC website. Item Part No. ODE MK3 70407 Due to constant innovation, information within this document is subject to change.
