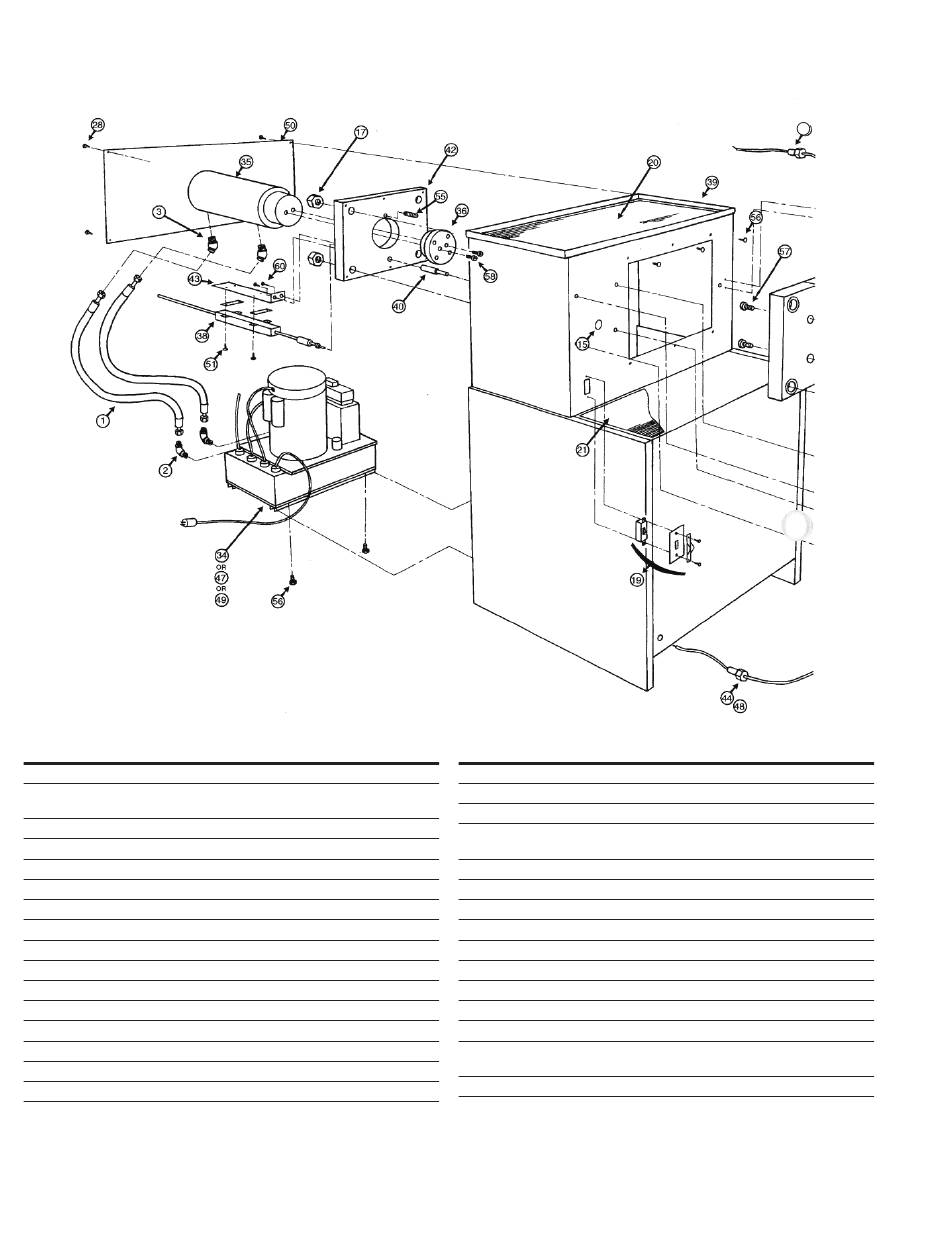

Crimp Machine Components
Detail Part Number
1 FK8687GGG0320
2 FF2032T0606S
3 FF2093T0606S
4 FF9339-08-24S
5 FT1289-2-2-14
6 FT1289-2-2-15
7 FT1289-3-13
8 FT1289-3-15
9 FT1289-3-46
10 FT1289-3-60
11 FT1289-3-62
12 FT1303-3-76
13 FT1330-3-64
14 FT1330-3-68
15 FT1330-3-7
16 FT1340-2-2-19
10 Danfoss FT1390 Crimp Machine Operator´s Manual October 2022
Description Qty
Hose Assembly 2
90° Adapter 2
(may have all 45° adapters)
45° Adapter 2
1/2-13 X 1.50 SHCS 4
Retaining Ring 1
Crimp Ring Insert 1
Push Rod 4
Pressure Plate 1
Plate 1
Caution Decal 1
Guard 1
Shoulder Bolt 2
Attention Decal 1
Work Lamp 1
Rubber Grommet 1
Tie Bar 4
Detail Part Number
17 FT1340-2-2-20
18 FT1350-2-2-2
19 FT1340-2-5-1
21 FT1340-3-4
22 FT1340-3-4-1
23 FT1340-3-4-2
24 FT1340-3-4-3
25 FT1340-3-4-4
26 FT1340-3-4-5
27 FT1340-3-4-6
28 FT1360-3-8
29 FT1380-3-3
30 FT1380-3-6
31 ET4020C-0001/
FT1380-3-7
32 FT1380-3-18
44
Description Qty
Nut 4
Crimp Ring 1
Motor Starter Switch 1
Backstop Assembly 1
(includes Details 22 through 27)
Shoulder Bolt 1
Spring 1
Locator Plate 1
Bronze Bushing 1
Thumb Screw 1
Locator Cone 1
1/4-20 X .38 BHCS 4
3-Position Switch 1
Key Pad 1
Electrical Enclosure 1
#4-40x.188 lg. SHCS 4
