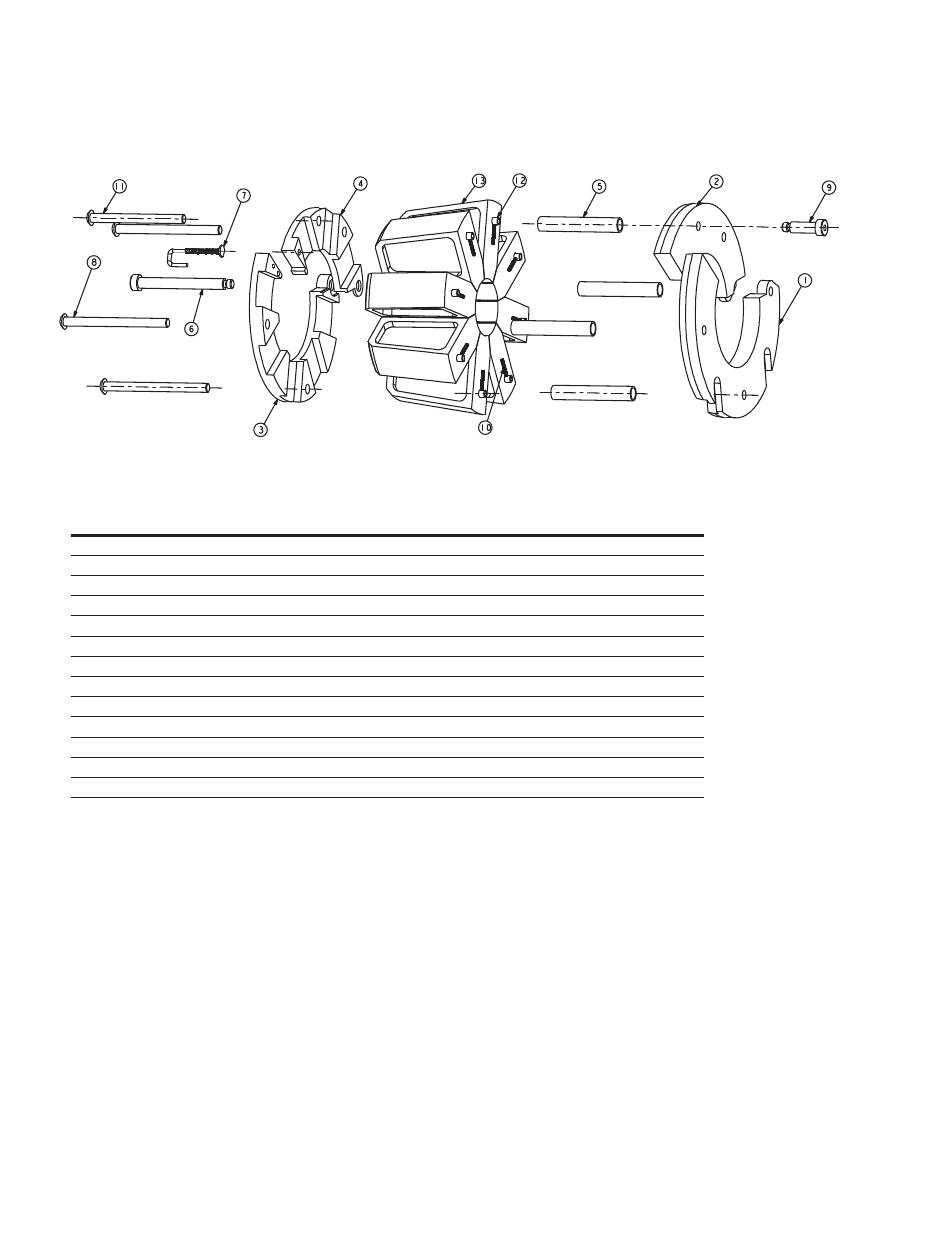

FT1390 die cage parts breakdown

Detail Qty
1 1 pc
2 1 pc
3 1 pc
4 1 pc
5 4 pc
6 1 pc
7 1 pc
8 3 pc
9 1 pc
10 8 pc
11 1 pc
12 8 pc
13 8 pc
16 Danfoss FT1390 Crimp Machine Operator´s Manual October 2022
Part Number Description
FT1309-2-9-1 Back Plate (Bottom)
FT1309-2-9-2 Back Plate (Top)
FT1309-2-9-3 Front Plate (Bottom)
FT1309-2-9-4 Front Plate (Top)
FT1309-2-9-5 Spacer
FT1309-2-9-6 3/8" dia. Sh. Scew (Alter)
FT1309-2-9-7 Latch Assembly
FT1209-2-9-1 BHCS 5/16-18 x 99 (3.90) long
FT1209-2-9-5 Shoulder Screw (Alter)
FT1209-2-9-7 Spring; Assoc. #C0240-033-1750 (SS)
FT1209-2-9-8 BHCS 5/16-18 x 88.9 (3.50) long
21057-7 Roll Pin; 6.3 (250) x 15.7 (.620) long
Crimp Dies
