Summary of Contents for Danfoss Aeroquip FT1370

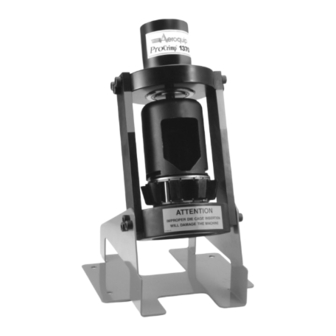

- Page 1 Operator’s Manual Aeroquip® by Danfoss FT1370 Crimp Machine...
-
Page 2: Table Of Contents
Maintenance Intervals......................8 Machine Maintenance Procedures..................8 Die Cage Maintenance Procedures................... 8 Crimp Machine Components....................9 Die Cage Components......................10 Shim Sets............................10 Die Cage and Shim Selection for MatchMate Plus Hoses..........11 2 | © Danfoss FT1370 Crimp Machine Operator’s Manual | 2023.03. AQ445452685725en-000101... -
Page 3: Safety Instructions
Excess air in the hydraulic system may cause erratic cylinder movement during retract. Refer to the Setup and Assembly section for instructions on removing air from the hydraulic system. AQ445452685725en-000101 © Danfoss FT1370 Crimp Machine Operator’s Manual | 2023.03. | 3... -
Page 4: Specifications
• Internal skive fittings • Hoses that require a positive stop, including the following Danfoss hoses: 2807, 2808, FC186, FC465, FC469, FC505 Accessories Die Cage Conversion Kit For conversion of any FT1330 die cage for use with the Aeroquip ProCrimp 1370 crimp machine. -
Page 5: Setup And Assembly
Place the pump on the work surface to the right of the crimper. Install the 2083-6-6S adapter and the other half of the FD35 quick-disconnect coupling to the pump pressure port. AQ445452685725en-000101 © Danfoss FT1370 Crimp Machine Operator’s Manual | 2023.03. | 5... -
Page 6: Operating Instructions
Your new crimper has been calibrated at the factory to produce correct crimp diameters when combined with the proper dies and shims. 6 | © Danfoss FT1370 Crimp Machine Operator’s Manual | 2023.03. AQ445452685725en-000101... -
Page 7: Crimping Procedure
When the dies make contact with the fitting, be certain the Verify the correct crimp diameter. alignment corresponds to the figure in the current Danfoss Crimp Specifications bulletin (A MatchMate Plus fitting is shown in Figure A). AQ445452685725en-000101 © Danfoss FT1370 Crimp Machine Operator’s Manual | 2023.03. | 7... -
Page 8: Maintenance Intervals
Reassemble components and liberally apply PTFE grease to the die surface which slides along the spring plate. Torque the die cage bolts to 50 in.-lbs. Ensure that all dies slide in and out freely. 8 | © Danfoss FT1370 Crimp Machine Operator’s Manual | 2023.03. AQ445452685725en-000101... -
Page 9: Crimp Machine Components
Attention Decal (not shown) FT1370-3-13 1/2-13 x .50 Lg. Brass Tip SHSS JA902 1370 Decal (not shown) FT1370-3-14 1/4-20 x .50 Lg. SHCS T-400-G PTFE grease FD35-1000-06-06 FD35 Coupling AQ445452685725en-000101 © Danfoss FT1370 Crimp Machine Operator’s Manual | 2023.03. | 9... -
Page 10: Die Cage Components
FT1370-5-5 GH793/FC212/FRH2AT with TTC Fittings (-4 through -20) FT1370-5-6 GH493/FC136/FC736 with TTC12 Fittings (-6 through -16) FT1370-5-7 FC372/FC373 with FC5810 Swage Fittings (-2, -3, -4, -6 and -8) 10 | © Danfoss FT1370 Crimp Machine Operator’s Manual | 2023.03. AQ445452685725en-000101... -
Page 11: Die Cage And Shim Selection For Matchmate Plus Hoses
-M240 -351 -M280 -202 -M240 -323 -M280 -415 -M320 -215 -M280 -378 -M320 -488 -M420 -298 -M320 -402 -M370 -202 -M370 -048 -M370 -028 -M465 -308 -M465 -073 AQ445452685725en-000101 © Danfoss FT1370 Crimp Machine Operator’s Manual | 2023.03. | 11... - Page 12 Phone: +86 21 3418 5200w Danfoss can accept no responsibility for possible errors in catalogs, brochures, and other printed material. Danfoss reserves the right to alter its products without notice. This also applies to products already on order provided that such alterations can be made without subsequent changes being necessary in specifications already agreed.
