Detail
Part Number
33
FT1380-3-31
34
FT1390-3-1
35
FT1390-3-2
36
FT1390-3-3
37
FT1390-3-4
38
FT1390-3-5
39
ET4040C-0004/
FT1390-3-6
40
FT1390-3-7
41
FT1390-3-8
42
FT1390-3-9
43
FT1390-3-10
44
FT1390-3-14
45
FT1390-3-15
46
FT1390-3-16
Description
Qty
Insulated Wire
3
Hydraulic Power
1
Unit 115VAC 60HZ
Hydraulic Cylinder
1
Cylinder Adapter
1
Control Card
1
Transducer
1
(includes clips and rod adapter)
Base (includes electrical box)
1
Transducer Rod Extension
1
Push Block
1
Cylinder Mounting Plate
1
Transducer Bracket
1
Compression Connector
3
Compression Connector
1
Foot Switch
1

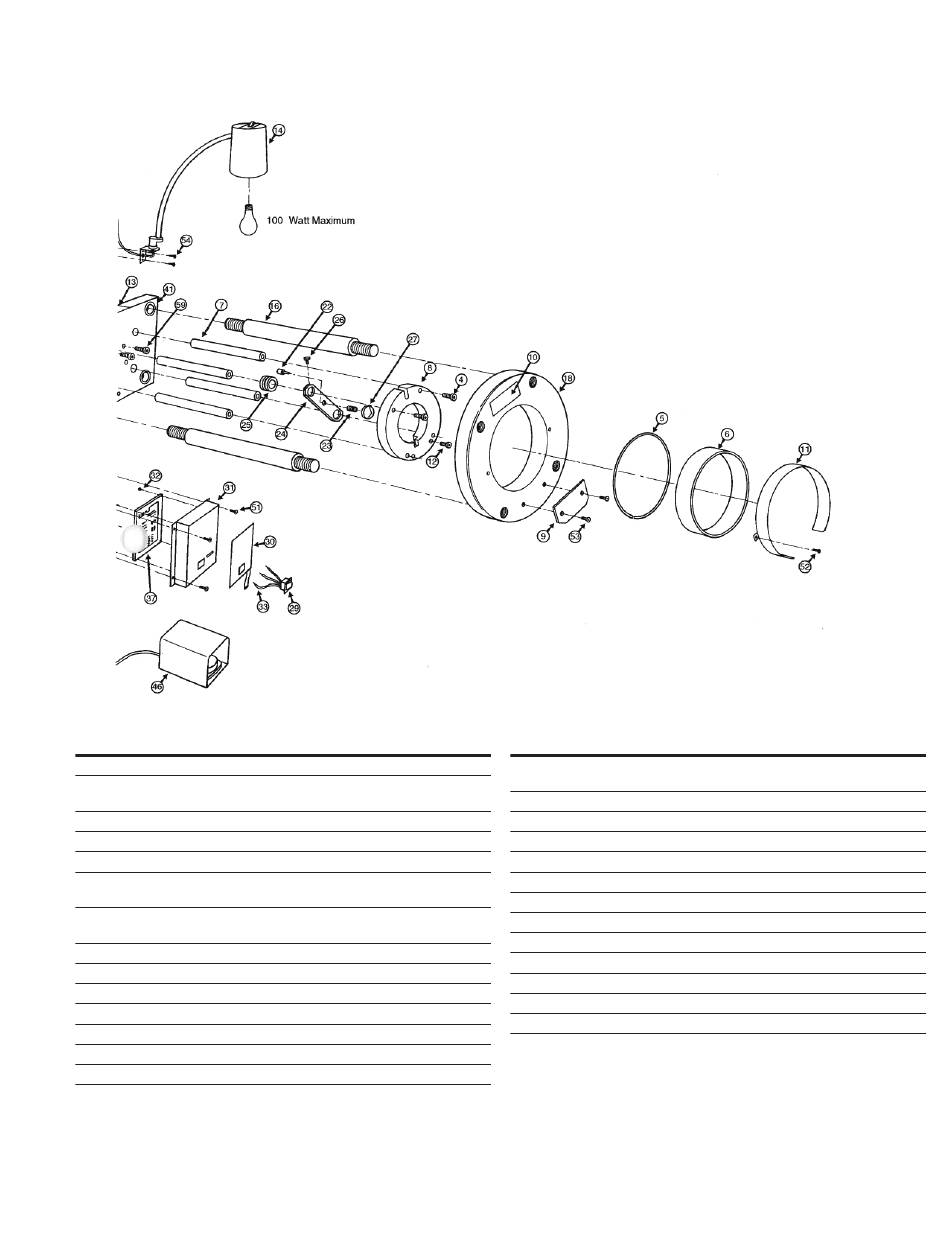

Crimp Machine Components
Detail
Part Number
47
FT1390-3-17
48
FT1390-3-18
50
FT1390-3-6-2
51
222003-1-8-6S
52
FF9339-0108-06S
53
FF90258-0110-06S
54
FF9156-0110-08S
55
FF9197-06-08S
56
222003-6-12S
57
222003-6-40S
58
222003-8-56S
59
222003-6-32S
60
222003-1-10-6S
Danfoss FT1390 Crimp Machine Operator´s Manual October 2022
Description
Qty
Hydraulic Power
1
Unit 208-240VAC 50/60HZ
Locknut
4
Rear Panel
2
#8-32 X .38 SHCS
8
#8-32 X .38 BHCS
2
#10-32 X .38 FHCS
2
#10-32 X .50 BHCS
2
3/8-16 X .50 SHSS
1
3/8-16 X 0.75 SHCS
10
3/8-16 X 2.50 SHCS
4
1/2-13 X 3.50 SHCS
2
3/8-16 X 2.00 SHCS
4
#10-24 x .38 SHCS
2
11
