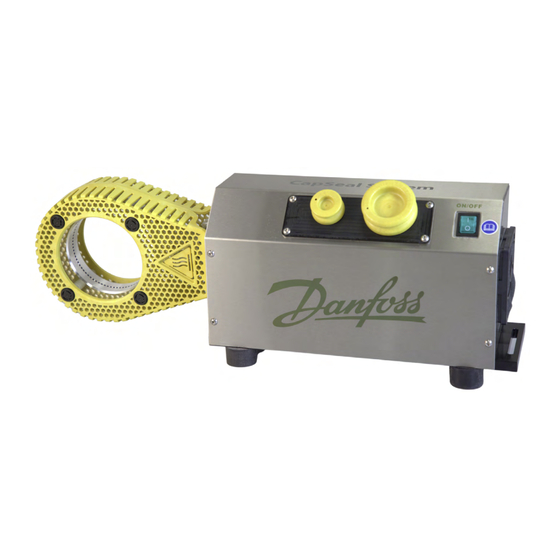

- Page 1 Operator’s Manual Danfoss FT1555-BM230 Bench Mount Hose Capping System...
-
Page 2: Table Of Contents
Air Filter maintenance ......................... 10 Troubleshooting ......................11 Repairs ..........................11 Advised Spare parts ........................11 Modifications ..........................13 Disposal ............................. 13 RoHS ..............................13 2 | © Danfoss FT1555-BM230 Bench Mount Hose Capping System Operator’s Manual | 2023.04. AQ453954047097en-010101... -
Page 3: Intended Use
Read User Manual before using this system. Use eye-protection Caution! Burning hands or fingers when entering Air Knife Caution! General warning sign Caution! Hot surface Caution! Electrical hazard AQ453954047097en-010101 © Danfoss FT1555-BM230 Bench Mount Hose Capping System Operator’s Manual | 2023.04. | 3... -
Page 4: Safety Precautions
FT1555-BM230 could cause serious injury to the operator or other personnel and may void warranty. Before starting to use the FT1555-BM230 read the operation instructions and take care of the safety precautions as indicated. Safety glasses are mandatory when operating the FT1555-BM230 The unit is never to be operated without safety cover(s) and heat guard removed. -
Page 5: Description And Operating Procedures
The Air Knife with heat guard has a 110mm center opening that allows multiple assembly ends to shrink at once with use of the Magnetic Pucks. AQ453954047097en-010101 © Danfoss FT1555-BM230 Bench Mount Hose Capping System Operator’s Manual | 2023.04. | 5... -
Page 6: Installation
Place magnetic puck onto the end of Pull Tear Strip to remove CapSeal Capsule fitting. Slowly move fitting through the from fitting. Air Knife until capsule is completely shrunk. 6 | © Danfoss FT1555-BM230 Bench Mount Hose Capping System Operator’s Manual | 2023.04. AQ453954047097en-010101... -
Page 7: Specifications
FT1555-BM230 Duty Cycle 100% Noise Emission <65 dB(A) Heating element life Approx. 500-800 hrs. Electrical Connection Requirement 230-240V, 15 Amp, Grounded L6-15 NEMA twist lock AQ453954047097en-010101 © Danfoss FT1555-BM230 Bench Mount Hose Capping System Operator’s Manual | 2023.04. | 7... -
Page 8: Machine Plate
USED ON WITHOUT THE WRITTEN PERMISSION OF <INSERT COMPANY NAME HERE> IS SCALE: 1:5 WEIGHT: SHEET 1 OF 1 PROHIBITED. APPLICATION DO NOT SCALE DRAWING 8 | © Danfoss FT1555-BM230 Bench Mount Hose Capping System Operator’s Manual | 2023.04. AQ453954047097en-010101... -
Page 9: Maintenance
Reinstall the foam filter and retainer. danfoss.com or your supplier outside the USA. Return the FT1555-BM230 to service (see page 4) AQ453954047097en-010101 © Danfoss FT1555-BM230 Bench Mount Hose Capping System Operator’s Manual | 2023.04. | 9... -
Page 10: Troubleshooting
2.0 AK UC-HG5000E HG5000E 230V Heat Gun UC-1955K22 CSS- Plastic Fan Guard with Filter Insert UC-2572K25 CapSeal System Bumper Feet FT1555-SMP Small Puck FT1555-LMP Large Puck 10 | © Danfoss FT1555-BM230 Bench Mount Hose Capping System Operator’s Manual | 2023.04. AQ453954047097en-010101... -
Page 11: Modifications
FT1555-BM230. All surface treatments and materials contained in the manufacturer’ s products do not contain any of the prohibited substances specified in Directive 2011/65/EU. AQ453954047097en-010101 © Danfoss FT1555-BM230 Bench Mount Hose Capping System Operator’s Manual | 2023.04. | 11... - Page 12 Phone: +86 21 3418 5200w Danfoss can accept no responsibility for possible errors in catalogs, brochures, and other printed material. Danfoss reserves the right to alter its products without notice. This also applies to products already on order provided that such alterations can be made without subsequent changes being necessary in specifications already agreed.
