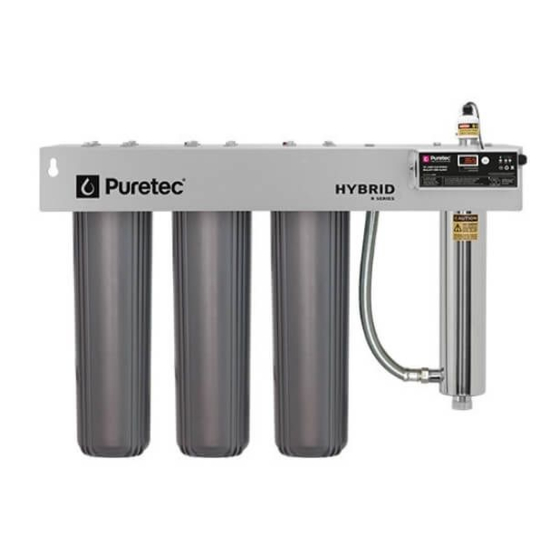

Triple filtration & ultraviolet all in one unit with reversible bracket

Advertisement

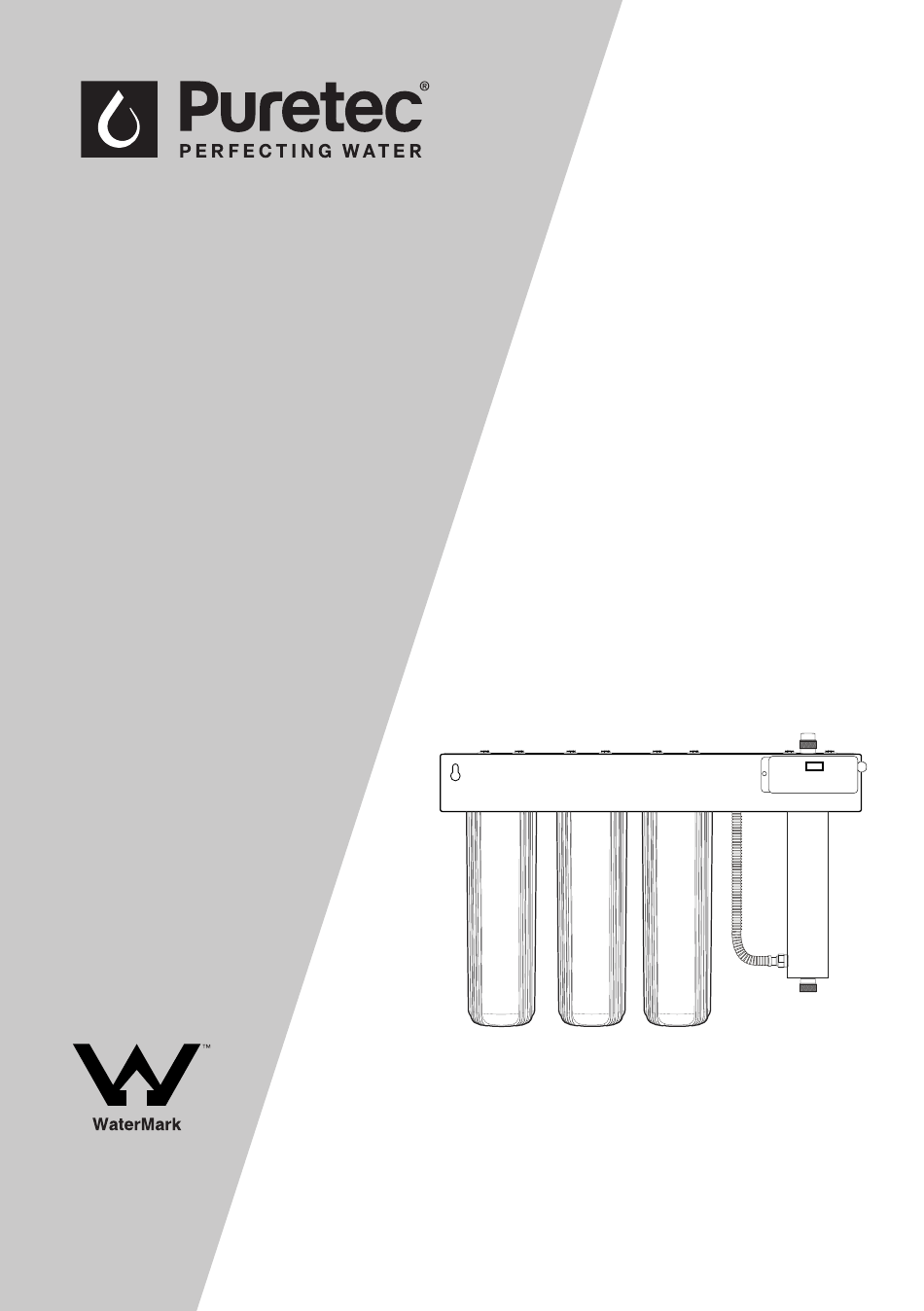

Hybrid-R Triple User Guide
Triple Filtration & Ultraviolet All in One Unit
WMTS103:2016
Certificate No. WM 74593
with Reversible Bracket
Australian Certification
Services
For correct operation & installation it is essential to observe these instructions.
JUL2018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Hybrid-R Triple Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Puretec Hybrid-R Triple Series

  • Page 1 Hybrid-R Triple User Guide Triple Filtration & Ultraviolet All in One Unit WMTS103:2016 Certificate No. WM 74593 with Reversible Bracket Australian Certification Services For correct operation & installation it is essential to observe these instructions. JUL2018...
  • Page 2: Table Of Contents

    Cartridge Replacement Procedure ................13 Lamp Replacement Procedure ..................14 Quartz Sleeve Maintenance/Replacement Procedure ........15 Troubleshooting Guide ...................... 17 Warranty ............................ 19 Product Information Distributor Installer Phone Date Installed Installation & Operation Manual Copyright © Puretec Pty Ltd 2018...
  • Page 3: Puretec Customer Service

    Introduction Puretec Customer Service Thank you for purchasing a Puretec Hybrid-R Triple Series whole house UV water treatment system. Your system is a proven performer manufactured from quality materials and components and will give years of ‘spring like’ water, free of impurities, if maintained and installed properly (refer installation requirements p.6)
  • Page 4: Preparing Your System

    Preparing the system Preparing your system Puretec systems are designed to run economically for many years but this is dependant on the initial installation and periodical maintenance. Please read all instructions carefully as failures caused by incorrect installation or operation are not covered by warranty.
  • Page 5: Positioning Your System

    Do not use long extension leads as they may cause substantial voltage drop and/or poor lamp performance. We recommend the use of an RCD or earth leakage circuit breaker on the power supply to your unit. HYBRID-R TRIPLE SERIES | Triple Filtration & Ultraviolet Disinfection All in One Unit...
  • Page 6: Installation Requirements

    Maximum recommended parameters are as follows: Iron less than 0.3 mg/L Hydrogen Sulfide less than 0.05 mg/L Suspended Solids less than 10mg/L Manganese less than 0.05 mg/L Hardness less than 110mg/L Installation & Operation Manual Copyright © Puretec Pty Ltd 2018...
  • Page 7 Ordering code is RI-TMS4. Note: This water filtering appliance should only be installed by a fully qualified & licenced plumber. HYBRID-R TRIPLE SERIES | Triple Filtration & Ultraviolet Disinfection All in One Unit...
  • Page 8: Initial Installation Procedure

    Installation Procedure Initial Installation Procedure Puretec Hybrid-R Triple Series has 1" [25mm] plumbing connections. Before attempting installation check the unit to ensure the quartz sleeve is intact. Locate a suitable position for the Hybrid-R Triple system remembering to allow 120mm under the unit (R11 model) and 700mm clearance above the unit for cartridge and lamp changes.
  • Page 9 15. Turn the power on and ensure that the lamp is operating. Make sure that the GREEN LED is illuminated. (Refer lamp replacement procedure on pg.14). HYBRID-R TRIPLE SERIES | Triple Filtration & Ultraviolet Disinfection All in One Unit...
  • Page 10: Operation

    Hybrid-R Triple and slowly flushed through the piping. If added as a shock dose the system and pipework should be rinsed thoroughly by opening a downstream tap. 10 Installation & Operation Manual Copyright © Puretec Pty Ltd 2018...
  • Page 11: Radfire Uv Unit

    For ballast system reset, hold mode button for 10 seconds Lamp Ballast Specifications AC 240V | 50Hz Lamp Power: 35W~95W Lamp Current: 0.8A~0.9A Ambient Temperature: 4~40°C Lamp Rated Life: 365 days Caution: Ground the ballast casing to avoid possible high voltage shock hazard HYBRID-R TRIPLE SERIES | Triple Filtration & Ultraviolet Disinfection All in One Unit...
  • Page 12: Replacement Parts Guide

    To maintain a high quality of purified water, the cartridges will need changing periodically (this is dependant on water quality and usage). You can obtain replacement cartridges from your local Puretec dealer. To maintain performance, warranty and Australian Standards use genuine Puretec replacements.
  • Page 13: Cartridge Replacement Procedure

    1-2 minutes after any period of non-use more than 2 weeks. For a period of non-use of 6 months or more, it may be necessary to replace the cartridges. HYBRID-R TRIPLE SERIES | Triple Filtration & Ultraviolet Disinfection All in One Unit...
  • Page 14: Lamp Replacement Procedure

    We recommend replacing UV lamp annually to ensure high sterilizing rate with best water quality. Always keep UV lamp on, as power fluctuation will shorten the service life of the UV lamp. Replacing UV Lamp O Ring 14 Installation & Operation Manual Copyright © Puretec Pty Ltd 2018...
  • Page 15: Quartz Sleeve Maintenance/Replacement Procedure

    Replacing UV Lamp sleeve, insert the spring and O Ring screw on the top nut. O Ring O Ring O Ring cont. over page. O Ring valve Replacing UV Lamp HYBRID-R TRIPLE SERIES | Triple Filtration & Ultraviolet Disinfection All in One Unit...
  • Page 16 Always keep UV lamp on, as power fluctuation will shorten Replacing UV Lamp valve valve the service life of the UV lamp. O Ring valve 16 Installation & Operation Manual Copyright © Puretec Pty Ltd 2018...
  • Page 17: Troubleshooting Guide

    No power at AC power outlet Replace fuse or reset breaker Power cord is damaged Replace power cord Power surge caused damage to Replace ballast electrical assembly HYBRID-R TRIPLE SERIES | Triple Filtration & Ultraviolet Disinfection All in One Unit...
  • Page 18 Lamp is disconnected or faulty Check lamp connection, replace if needed Display flashing Power interruption Reset ballast Error Code ‘A3’ on Ballast countdown has reached 0, Replace lamp ballast lamp life expired 18 Installation & Operation Manual Copyright © Puretec Pty Ltd 2018...
  • Page 19: Warranty

    Applicable to all above, is that the Warranties need to be approved by Puretec to ensure product was not incorrectly used, installed or claimed. False and incorrect claims will be pursued at Puretec’s discretion, including chargeable inspection and labour costs...
