Summary of Contents for Puretec MPB202

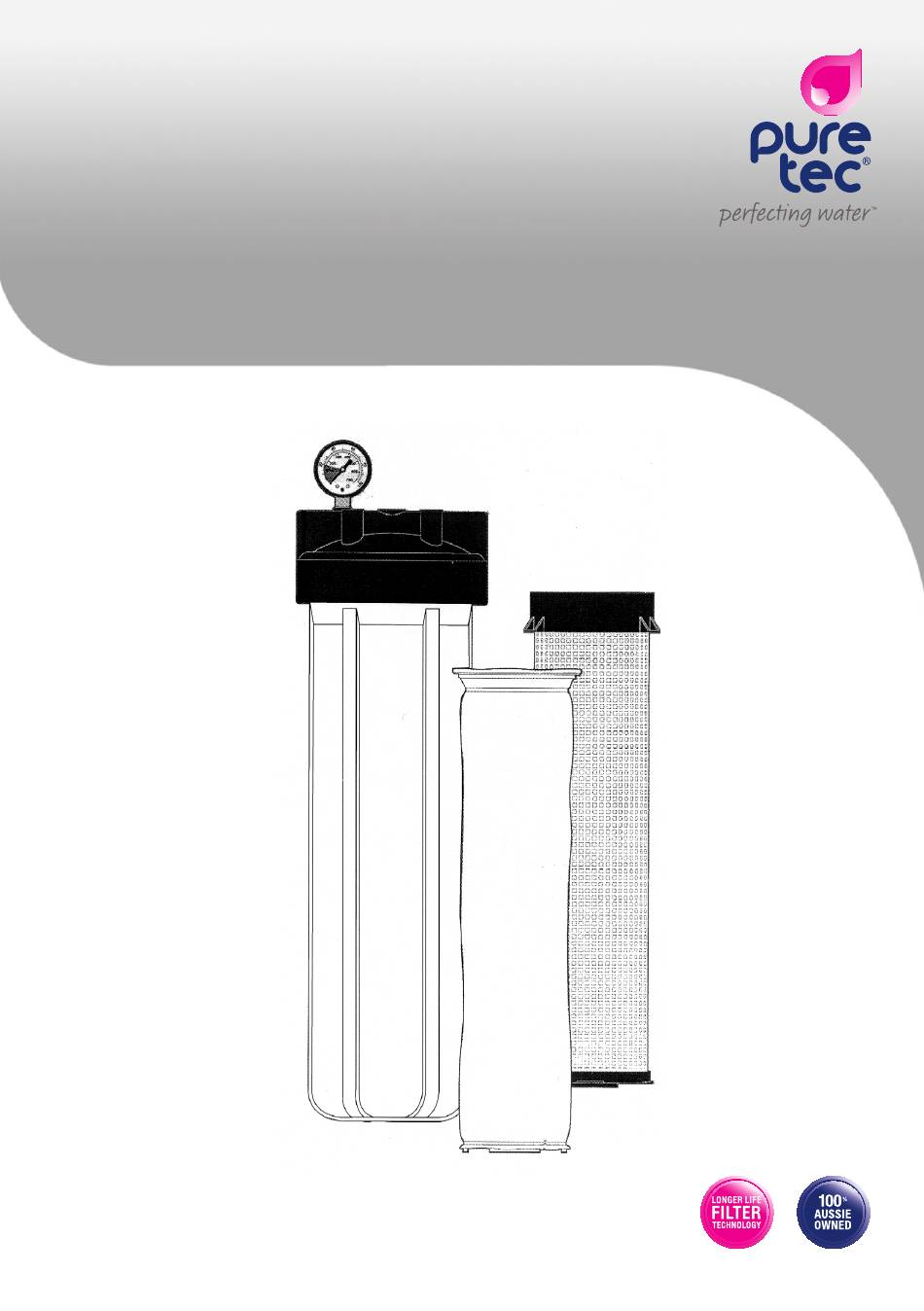

- Page 1 USER GUIDE BAG FILTER SYSTEM Installation & operation manual for Bag Filter Systems MPB202 For correct operation & installation it is essential to observe these instructions.
- Page 2 Filtaflo Customer Service Puretec Customer Service Thank you for purchasing a Puretec Bag Filter System. Your system is a patented, proven performer manufactured from only quality materials and components and will give years of clean, fresh, invigorating shower water free of impurities if maintained properly.
-
Page 3: Installation
Bag Selection The Puretec Bag Filter Housing is designed for use with Puretec filter bags. Filter bags are available in 1, 5, 10, 25, 50, 100 and 200 micron. Polypropylene is the standard bag material but nylon is available upon request. - Page 4 USER GUIDE BAG FILTER SYSTEM Bag Replacement The pressure differential across the bag will remain fairly constant until the bag is approximately 80% blinded off. It is recommended that the bag be changed when the pressure differential reaches 15 psi. However, this figure can vary with the type of filter bag. The bag manufacturer’s data should be consulted to determine the actual pressure drop for replacement.
- Page 5 USER GUIDE BAG FILTER SYSTEM Figure 1 Gauge ¼” Drain Plug Filter Head O-ring Replacement Bag Basket Body Filter Housing Spanner Buna-N ¼” Gasket 3/8” NPT Drain Plug Ball Valve PVC 3/8” x 3/8” FPT User Guide Copyright © Fluid Products Pty Ltd 2012...
-
Page 6: Specifications
USER GUIDE BAG FILTER SYSTEM Specifications Max. Pressure: 630 kPa (90 psi) Maximum Temperature: 37.7°C ( 100°F) Recommended Service Flow Rate: 21 kPad (3 psid) @ 132 Lpm (35 gpm) Maximum Service Flow Rate: 21 kPad (3 psid) @ 188 Lpm (50 gpm) Materials of. -
Page 7: Troubleshooting
FPS designs, manufactures and supports Puretec water care products, the name you can trust for viable and proven water solutions. All pictures and information are supplied as a guide only. The complete range of Puretec products are developed, refined and made to meet and exceed stringent specifications for the worldwide market. -
Page 8: Warranty
This warranty is given by Puretec, ABN 66 474 243 571, 14-16 Bailey Street, St Marys SA 5064, telephone no. 1300 190 190 and email at sales@puretec.com.au.
