Summary of Contents for Mercia Garden Products 01DTOVRA0604SDFW-V1

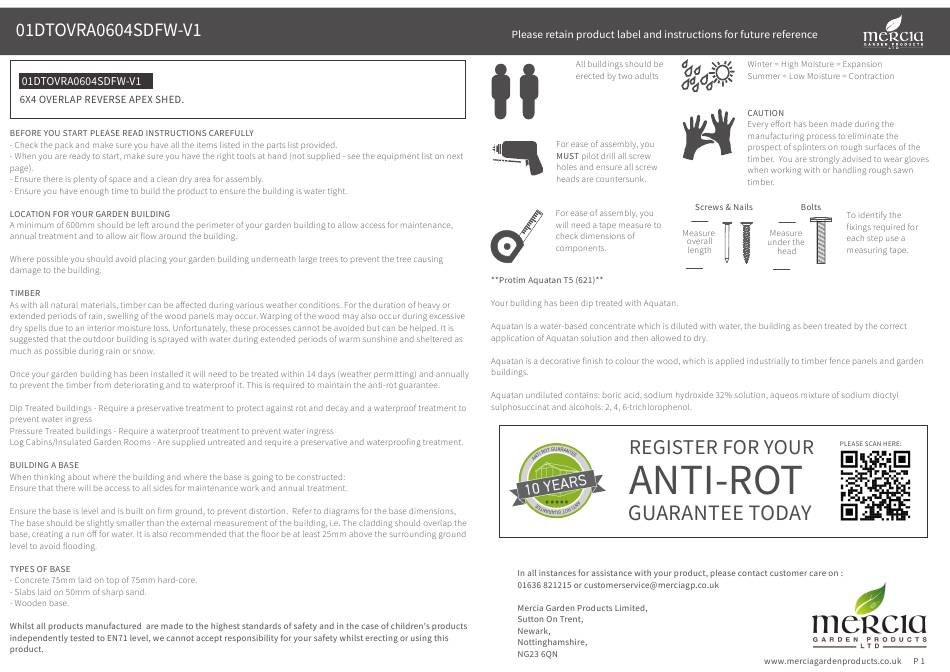

  • Page 1 2mm Drill bit...
  • Page 3 Before assembly Door Block 150x28x28mm QTY 1 please make sure you have a F2828-150mm suitable base ready to erect your building Ridge Bar 1707x28x28mm QTY 1 F2828-1707mm Eaves Framing 1794x28x28mm QTY 2 F2828-1794mm MADE IN GREAT BRITAIN Door Beading Strips 1600x12x28mm QTY 2 Overall Dimensions: Base Dimensions: S1228-1600mm...

  • Page 4: Pre-Assembly

    Pre Assembly Step 2 IMPORTANT: Pre-drill before xing screws. Parts needed - No. 1 QTY 1 Before assembling remove the transportation No. 8 QTY 1 blocks from the bottom of each panel. No. 20 QTY 3 Take care removing the blocks as to not damage Place the door (No.8) within the Door Panel the panels.
  • Page 5 Step 3 Step 5 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts Needed- No.3 QTY 1 Parts Needed- No.1 QTY 1 - No.4 QTY 1 - No.3 QTY 1 **Please note: the front and back panels **Please note: the front and back panels interchangeable are interchangeable and can be positioned positioned on either side of the building.
  • Page 6 Step 6 Step 8 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts needed - No. 6 QTY 2 Parts Needed- No.10 QTY 1 - No.19 QTY 2 Place the Roof Panels (No.6) on top of the Fix the Corner Braces (No.19) to each end of building, ensuring equal spacing either side of the Ridge bar (No.10) using 2x20mm the building...
  • Page 7 Step 10 Step 9 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts Needed- No.13 QTY 2 - No.14 QTY 1 Fix the building to the oor using - No.18 QTY 1 20x40mm screws, ensuring to go - No.23 QTY 1 through the panel framing and into the oor Place the plastic cill (No.18) into the window...
  • Page 8 Step 11 Step 12 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts Needed- No.17 QTY 1 Parts Needed- No.15 QTY 6 Fix the cover trims (No.15) to the corners and Cut the felt (No.17) into 2 sheets of the joins of the building, secure using 1900mm (L) x 1000mm (W) and lay onto 3x30mm for each cover trim...

  • Page 9: After Treatment

    Step 14 IMPORTANT: Pre-drill before xing screws. Parts Needed- No.9 QTY 1 - No.12 QTY 2 Fix the Door Beading strips (No.12) to the door panel framing, secure using 4x30mm Screws per strip. Fix the door block (No.9) onto the door framing using 2x50mm Screws 8x30mm Screws 2x50mm Screws...
