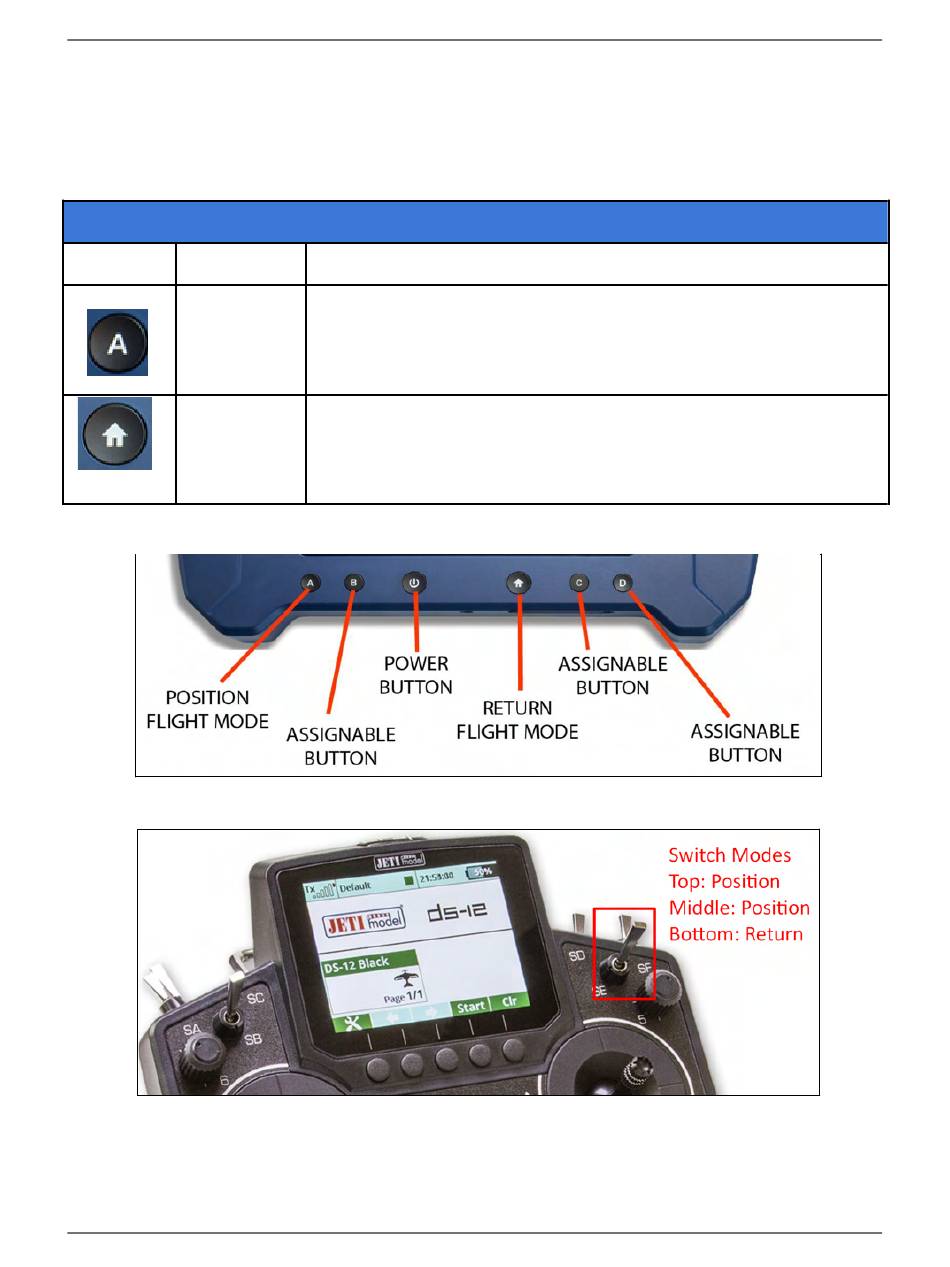

Selecting Flight Modes on the Hand Controllers
This section describes the location and function of the flight mode controls on the hand
controllers. See Figure 12 and Figure 13 below for control locations.
Control Flight Mode
Position
Return to
Launch
Figure 12. Flight Mode Buttons on HereLink Hand Controller
Continued next page
IFT Doc. Num. 102090, Rev. 3.00
Flight Mode Controls
HereLink: Button on bottom of the front panel (see Figure 12).
Jeti DS-12: Top and mid-position of three-way switch on
upper-right of front panel (see Figure 13).
HereLink: Button on bottom of the front panel (see Figure 12).
Jeti DS-12: Bottom position of three-way switch on upper-right of
front panel (see Figure 13).
Figure 13. Flight Mode Switch on Jeti DS-12.
Location on Hand Controller
