IF1200 User Manual
Step
Insert the landing gear legs into the corresponding sockets on the underside of the
aircraft. Ensure the notch at the end of the tube is aligned with the corresponding key
9
inside the socket.
Ensure the vertical tube is fully inserted before tightening the ratcheting clamp. The
ratcheting arm can be pulled away from the screw to move the arm to a more
NOTE
convenient location when tightening. Tighten the clamp until snug, then rotate a
quarter turn further.
Unfold the remaining arms and lock them into place.
10
IFT Doc. Num. 102090, Rev. 3.00
End of Procedure

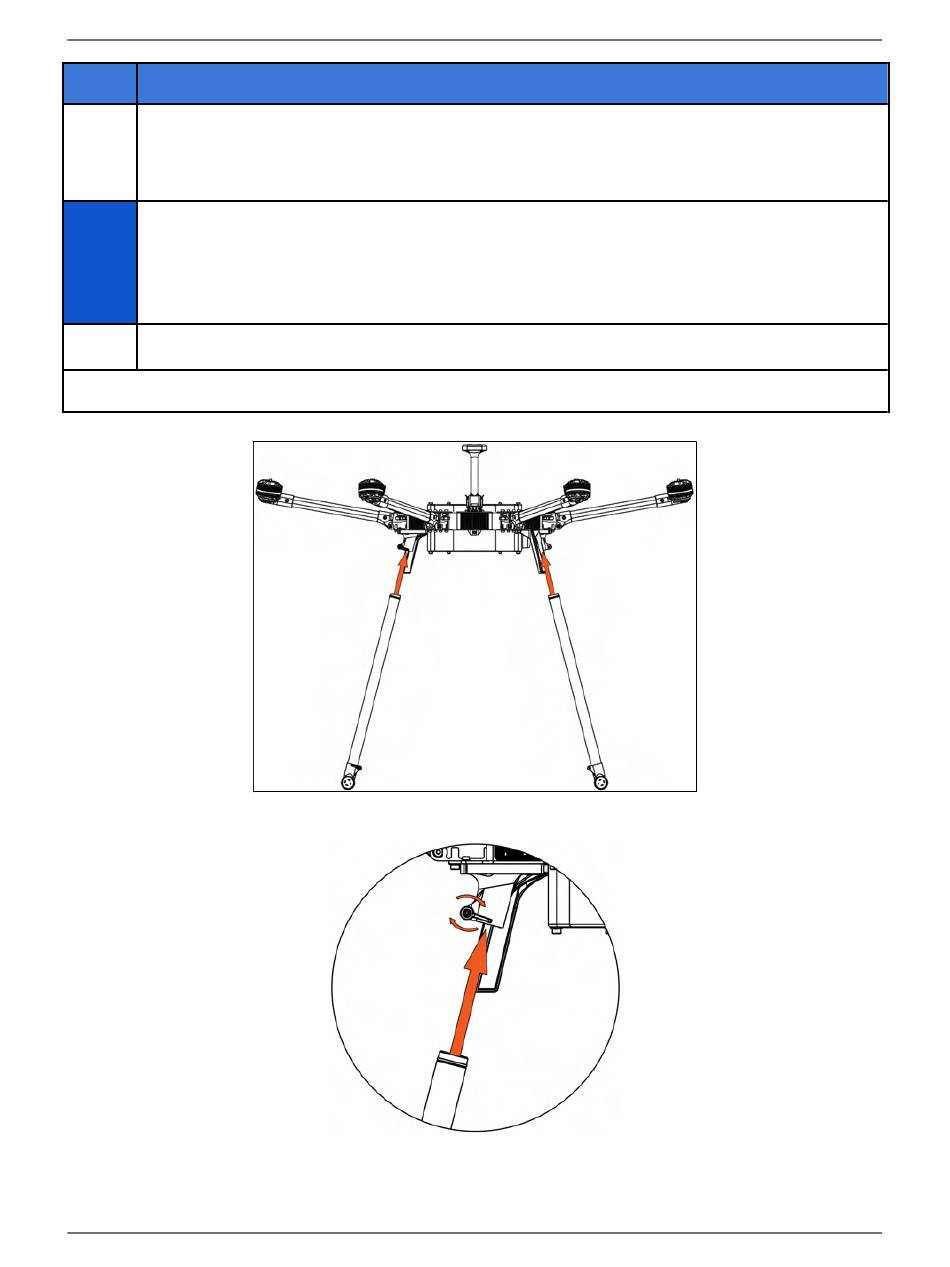

Figure 12. Attach Landing Gear to Body
Figure 13. Landing Gear Clamp
9. Assemble the Aircraft
Action
Page 20
