9. Assemble the Aircraft

Step
Remove the aircraft from its shipping container and gently set aside. The landing gear
1
are located in the two horizontal cavities under the aircraft.
The aircraft has two landing gear, each made of a horizontal tube, and a vertical tube
2
(see figure 8 below).
3 On one of the horizontal tubes (with the rubber feet), loosen the clamp.
Insert a vertical tube into the horizontal tube so that the rubber O-rings are on the
lower half, toward the horizontal tube.
4 Note: There is a notch in the end of each vertical tube (see Figure 9 on the next
page). Insert the vertical tube so that the notch aligns with the inner features of the
horizontal tube, so that the vertical tube is fully seated in the horizontal tube.
IFT Doc. Num. 102090, Rev. 3.00
Continued next page

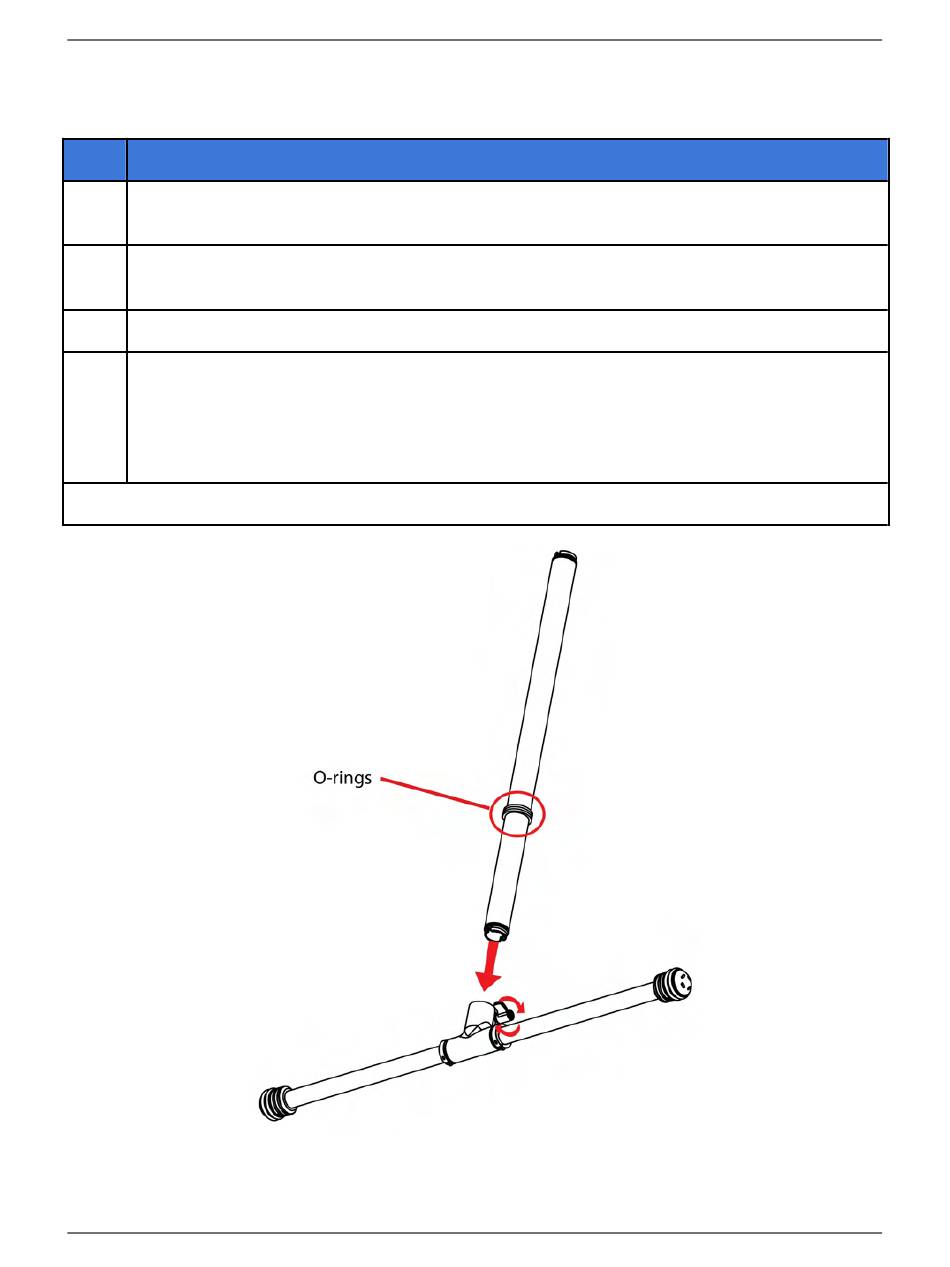

Figure 8. IF1200 Landing Gear Assembly
Action
9. Assemble the Aircraft
