INSTALLATION, CONT'D: FRONT GLASS ALIGNMENT & ADJUSTMENT (VIA RAIL SYSTEM)

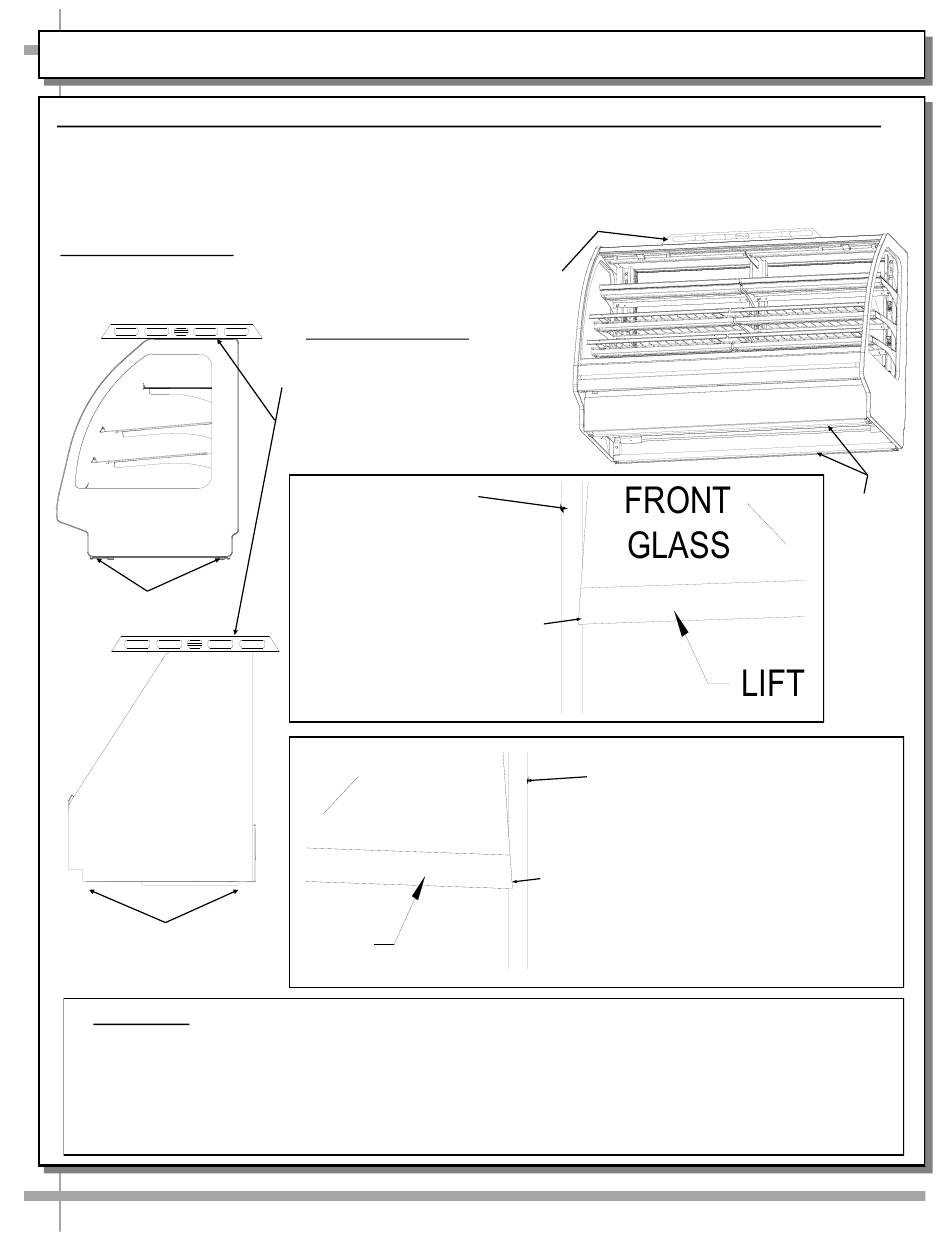

7. Front Glass Alignment & Adjustment via Rail System (For Curved and Flat Front Glass)
•
Proper alignment of the front glass is important to create and maintain a seal inside the case.
•
Improper alignment can cause air leaks compromising the environment inside the case and create condensation.
•
Follow the five steps listed below to assure proper front glass alignment.
•
Illustrations shown may not exactly reflect every feature or option of your particular case.
A. Side-to-Side Leveling: Place a level on top of display case (parallel
to front glass). Raise or lower either side of case by inserting shims
under the rails to level the case (following steps 3 and 4 below).
Case with Curved
Front Glass
Rails
Case with Flat
Front Glass
Rails
E. Verification:
After inserting shims, open and shut the front glass.
•
Verify (again) that the front glass is properly aligned at both left-hand and right-hand side of
•
the case.
If not, repeat the shimming procedure until the front glass is properly aligned along both sides
•
of the case.
B. Front-to-Back Leveling:
• Place a level on top of case,
perpendicular to the front glass.
• Raise or lower either side of case
by shimming under the rails
(following steps 3 & 4 below).
• Double-check the side-to-side level.
END PANEL
C. If FRONT-LEFT CORNER
is too close to end panel (or
hitting it), insert shims at the
BACK LEFT CORNER of case.
CURVED
FRONT
GLASS
LIFT
END
PANEL
END PANEL
4. If FRONT-RIGHT CORNER is too close
D. If FRONT-RIGHT CORNER is too close
to end panel (or hitting it), insert shims at
to end panel (or hitting it), insert shims at
the BACK RIGHT CORNER of case.
the BACK RIGHT CORNER of case.
9
Rails
