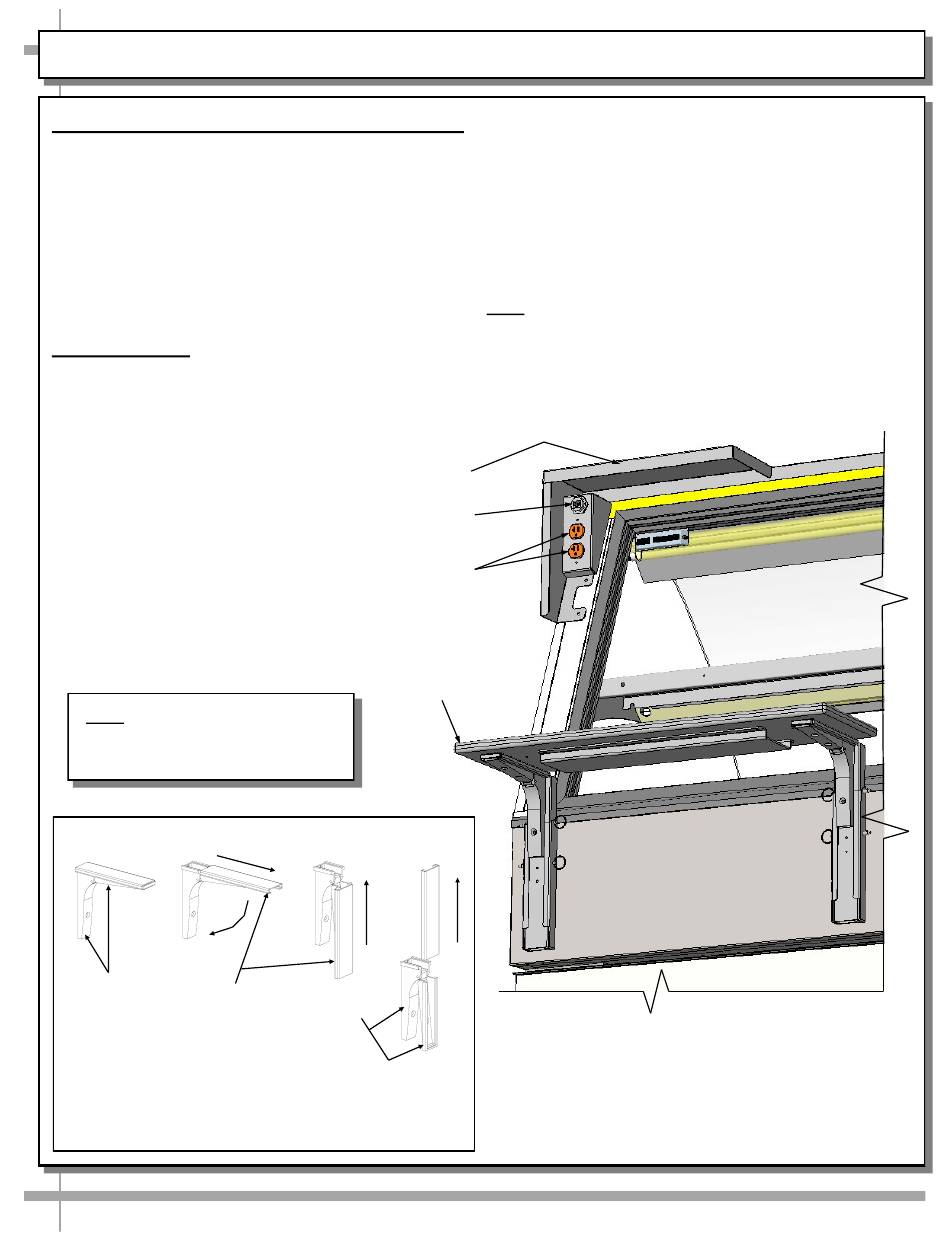

INSTALLATION, CONT'D: SCALE STAND WITH OUTLETS & CAT5 / FLIP-UP LEDGE
11. Scale Stand / Ethernet CAT5 / Receptacle
Optional scale stand location and illustration is
shown below.
Route the scale stand cord through into
receptacle (shown below).
Plug scale stand cord into receptacle as shown
in illustration below.
Depending upon options chosen, CAT5
(Category 5) network cable outlet may also be
available at scale stand base (as shown below).
12. Rear Ledge
Rear Ledge is connected to Shelf Track. See below
for Rear Ledge removal steps.
Note: Illustration shown may not
exactly reflect every feature or
option of your particular unit.
-1-
-2-
Hinged
Shelf
Support
Track
Bracket
—— Optional Rear Ledge Removal Steps ——
Note: For clarity, only Shelf Track is shown being
removed. Rear Ledge is attached to Shelf Track.
Scale Stand
Ethernet CAT5
110V Electrical Outlets
Sanalite Flip-Down
Ledge
-3-
-4-
Hinged
Support
Bracket
12
Rear ledge step-by-step removal method is as follows:
1. Hinged Support Bracket is shown in
its standard upright position.
2 & 3. While upright, Rear Ledge must be
slid away from case and then rotated downward to
vertical position.
3 & 4. From the shelf's lowered position, lift from
bottom edge upward to disengage shelf track (and
attached Rear Ledge) from bracket.
Note: Illustrations shown may not exactly reflect every
feature or option of your particular case.
Model GMDS10R.5773F Shown Above.
Your Model May Vary
