INSTALLATION, CONT'D: PROBE LEADS / FIELD WIRING BOX / BALLAST / OPTIONAL LED DRIVER
8. Probe Leads Box / Field Wiring Box /
Ballast (or Optional LED Driver) /
Terminal Strip / Anti-Condensate
Axial Fans
• Probe leads are in probe leads box (on
certain models). It is located at customer
front-left of case (behind front panel).
• Field wiring box is also located at front left
of case (behind front panel)
• Ballast (or optional LED driver) and terminal
strip is also located behind front electrical
cover (shown removed for illustrative
purposes).
• Screws hold front electrical cover in place.
Unscrew and drop electrical cover down
and out.
• Anti-condensate axial fans (for front glass)
may be accessed (at underside of front
panel) by simply removing four screws, and
dropping fans down.
• Caution! Only certified electricians are
to access electrical components!
Note: Illustration shown may not
exactly reflect every feature or
option of your particular unit.
Light
Ballast
(2) Hooks at
Each End
for Front
Panel Slots
Probe
Leads Box

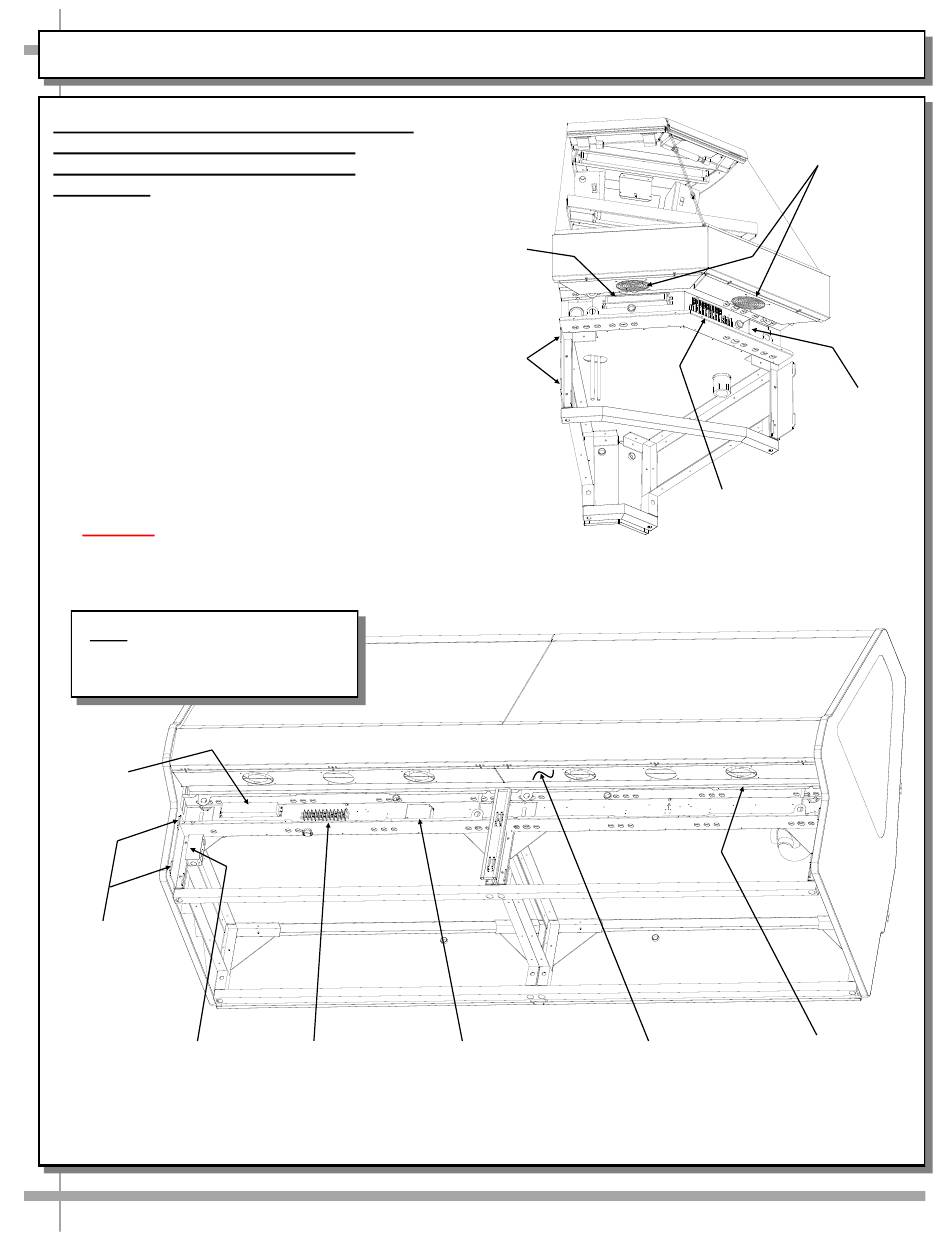

--- View of GMDS8R With Front Panel and Electrical Cover Removed ---
(2) Hooks
Terminal LED Driver (Optional,
Strip Dependent Upon
Lighting)
Light
Ballast
at Each
End for
Front
Panel
Slots
--- View of GMDSX4R With Front Panel
and Electrical Cover Removed ---
Front Electrical Cover
Removed for
Illustrative Purposes
10
Anti-Condensate
Axial Fans
LED Driver
(Optional,
Dependent
Upon
Lighting)
Terminal
Strip
Anti-Condensate
Axial Fan (Typ.)
