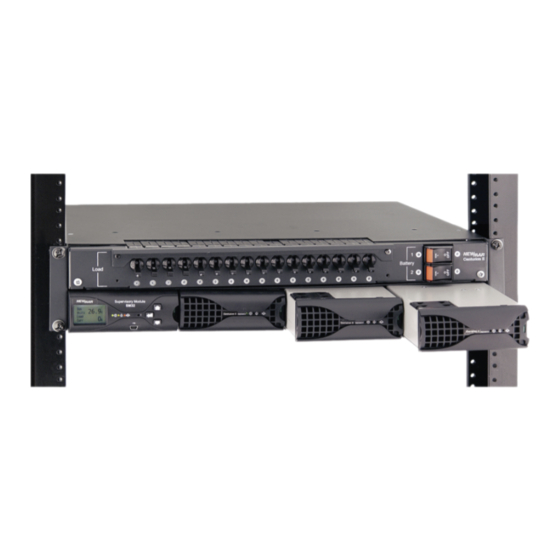

- Page 1 Centurion II Power System DC Power System Installation / Operation Manual Model: C2RS (-48 VDC and +24 VDC) M-C2RS 1013 As of Powering the Network Newport Beach, CA USA www.newmartelecom.com • 800-854-3906...
-
Page 2: Table Of Contents
Installation CD You may have received a CD with your Centurion II Power System. This contains the user manuals relevant to the System you have purchased, plus the SM3x Configuration Software. This software enables direct communication from your computer to the SM3x via the USB port. -
Page 3: Receiving Instructions
The standard system is assumed to be a Positive Earth system. Where parameters and settings differ between systems, the Negative Earth system parameters are specified within parenthesis i.e. (). YSTEM VERVIEW Newmar • PO Box 1306, Newport Beach, CA 92663 • Phone: 714-751-0488 • E-mail: techservice@newmarpower.com... -
Page 4: Installation
A 5/32" (4mm) wide slotted screwdriver has been provided to allaow ease of accessing some of the smaller recessed DIN style terinal block screws. Newmar • PO Box 1306, Newport Beach, CA 92663 • Phone: 714-751-0488 • E-mail: techservice@newmarpower.com... -
Page 5: Ac Cabling
AC Junction Box w/ Cover Removed Shown with 3 Shown with 3 position jumper position jumper installed installed AC Input Terminal Note: See Appendix 5 for information regarding the AC junction box. Newmar • PO Box 1306, Newport Beach, CA 92663 • Phone: 714-751-0488 • E-mail: techservice@newmarpower.com... -
Page 6: Upstreamover-Currentprotection
A minimum circuit breaker to use for this system is a 20A, D-curve (note, a 20A C-curve breaker will not discriminate with the rectifier fuse). Therefore, when used with the 2.5mm cable supplied, a 20A, D-curve breaker should be used. Newmar • PO Box 1306, Newport Beach, CA 92663 • Phone: 714-751-0488 • E-mail: techservice@newmarpower.com... -
Page 7: Dc Cabling
2 NOTE: A larger breaker may be used even though in theory it may appear that the 2.5mm wire is not fully protected. In fact it is protected on two accounts. Firstly it is protected by the rectifier input fuse (which is only a short distance away). Secondly, the rectifiers are power‐limited on their input. Therefore, they can never be overloaded. As a result, the wire can never be over‐loaded by the rectifier – it can only see fault current. As a result, depending on local authorities, only fault current protection may be catered for by the upstream protective device. Newmar • PO Box 1306, Newport Beach, CA 92663 • Phone: 714-751-0488 • E-mail: techservice@newmarpower.com... - Page 8 Fig. 2 Battery & DC Output Terminals (+ve Earth System, -48V or -60V) Battery Battery Live Common Cable Tie Slots Load Load Load Live Load Live Common Common (+24V) (+24V) Fig 2.1 Battery & DC Output Terminals (-ve Earth System, +24V) Newmar • PO Box 1306, Newport Beach, CA 92663 • Phone: 714-751-0488 • E-mail: techservice@newmarpower.com...
-
Page 9: Alarm/Ancillary Cabling
Volts – Free Relays SM31/32 Supervisory Monitor Fig. 3.2 SM31/32 Monitor Cabling Newmar • PO Box 1306, Newport Beach, CA 92663 • Phone: 714-751-0488 • E-mail: techservice@newmarpower.com... - Page 10 Help files can be accessed for a field by left clicking inside the field and pressing the F1 key on the keyboard. Example shown in Fig. 4 Newmar • PO Box 1306, Newport Beach, CA 92663 • Phone: 714-751-0488 • E-mail: techservice@newmarpower.com...
-
Page 11: Lvd Operation
Therefore when the low voltage threshold of Battery LVD is reached, the LVD disconnects the battery and the SM36 will lose voltage sense (as voltage Newmar • PO Box 1306, Newport Beach, CA 92663 • Phone: 714-751-0488 • E-mail: techservice@newmarpower.com... -
Page 12: Commissioning
4. Rectifier modules have been fitted into their shelf positions, and pulled forward enough to disconnect them from the system. Newmar • PO Box 1306, Newport Beach, CA 92663 • Phone: 714-751-0488 • E-mail: techservice@newmarpower.com... - Page 13 Float Voltage (typically the voltage will increase from 2 to 3V below float voltage. At this point the batteries will be drawing some current to bring them to a full state of charge. Newmar • PO Box 1306, Newport Beach, CA 92663 • Phone: 714-751-0488 • E-mail: techservice@newmarpower.com...
- Page 14 This will prevent anyone leaving the batteries only powering the load (in which case the batteries would go flat). Newmar • PO Box 1306, Newport Beach, CA 92663 • Phone: 714-751-0488 • E-mail: techservice@newmarpower.com...
- Page 15 “Battery Temperature”. Therefore, all the sensors need to be heated / cooled at the same time. Battery Temperature High (urgent) °C Newmar • PO Box 1306, Newport Beach, CA 92663 • Phone: 714-751-0488 • E-mail: techservice@newmarpower.com...
- Page 16 (non-metallic), and push it approximately 1cm through the rectifier grille. Rectifier Off Normal (e.g., fan failed) (non-urgent) Newmar • PO Box 1306, Newport Beach, CA 92663 • Phone: 714-751-0488 • E-mail: techservice@newmarpower.com...
- Page 17 Condition Monitor (if fitted) will be logging every minute. Battery Current Limit (BCL) Check that the battery recharge current is BCL functions Newmar • PO Box 1306, Newport Beach, CA 92663 • Phone: 714-751-0488 • E-mail: techservice@newmarpower.com...
- Page 18 Relay 5 (Spare) For SM35/36 only Relay 6 (Spare) For SM35/36 only Newmar • PO Box 1306, Newport Beach, CA 92663 • Phone: 714-751-0488 • E-mail: techservice@newmarpower.com...
-
Page 19: Appendix 1 - Newmar Essential System Set - Up Parameters
The second rate is required specifically for the time-remaining algorithm. A 4 hour rate is usually a good one to use. This information is available from the battery manufacturer’s data sheet. Newmar • PO Box 1306, Newport Beach, CA 92663 • Phone: 714-751-0488 • E-mail: techservice@newmarpower.com... - Page 20 Newmar recommends that you set this value at the highest rate possible to ensure the battery is recharged as fast as possible (this could be as high as 30%, depending on the manufacturer). However, especially in large systems, this may be more limited by the number of rectifiers available, rather than this particular setting.
-
Page 21: Appendix 2 - Maintenance
2 – M PPENDIX AINTENANCE As NEWMAR Power Systems are state of the art electronic systems, very little routine maintenance is required System During normal operation the cable entries to the MCB’s may loosen over time due to movement in the cable strands. -
Page 22: Appendix 3 - Ac Input Transient Protection
Some of the Newmar Power System models are provided with Type 2 Surge Protection Devices (SPDs) (as defined by IEC 61643-11). These devices are rated for repeated strikes of 20kA (8/20μs waveform as shown above), and single shot protection of 40kA. - Page 23 Newmar Rectifiers are compliant with EN6100-4-5, Level 4 without any Note: external/upstream surge suppression. To maintain a coordinated approach to surge suppression, Type 2 SPD should be installed upstream if not fitted in the system. To ensure correct operation of the SPDs, at least 10m of AC feeder cable is fitted between the Type 1 and Type 2 protection.
-
Page 24: Appendix 4 - Rectifier Input Fuse Curves
Newmar • PO Box 1306, Newport Beach, CA 92663 • Phone: 714-751-0488 • E-mail: techservice@newmarpower.com ... -
Page 25: Appendix 5 - Installation Of Ac Junction Box
4. Tighten cable clamp screws and confirm the cables are firmly secured. 5. Re-install top cover and tighten screws. Newmar • PO Box 1306, Newport Beach, CA 92663 • Phone: 714-751-0488 • E-mail: techservice@newmarpower.com... -
Page 26: Appendix 6 - Troubleshooting
A-L2 to Ground = 208 or 230 volts, B-L2 to Ground = 208 or 230 volts, C-L2 to Ground = 208 or 230 volts Newmar • PO Box 1306, Newport Beach, CA 92663 • Phone: 714-751-0488 • E-mail: techservice@newmarpower.com... -
Page 27: Appendix 7 - Field Replacement Of Load Circuit Breakers
Instructions for field installation of load circuit breaker. To be performed by qualified electrical personnel only. 1. Remove the A.C. input and turn both battery breakers off. (If the unit is still powered on a live bus will be exposed creating a possible shock hazard). 2. Remove the top of the unit (there will be 1 screw in each corner and two screws located in the front center of the unit). 3. Remove the bottom circuit breaker toggle guard. 4. The output terminal block wires are labeled according to their position, locate the wire corresponding to the breaker position you are installing and connect it to the bottom contact of the circuit breaker. 5. Attach any hot wire from the bus to the top contact of the circuit breaker. 6. Insert a screw into the hole exposed by removing the bottom toggle guard and screw the breaker in place. 7. Re‐install the toggle guard and top of the unit and reapply power. Note: It is normal to measure output voltage on a Centurion II load circuit breaker when its toggle handle is in the OFF position. The Centurion II circuit breaker alarm circuit produces a very low current, high impedance signal that can be detected using a high impedance digital multi‐meter (DMM). This is normal and does not present a hazard to the user. Newmar • PO Box 1306, Newport Beach, CA 92663 • Phone: 714-751-0488 • E-mail: techservice@newmarpower.com... -
Page 28: 14 Appendix 8 - System Wiring Diagrams
