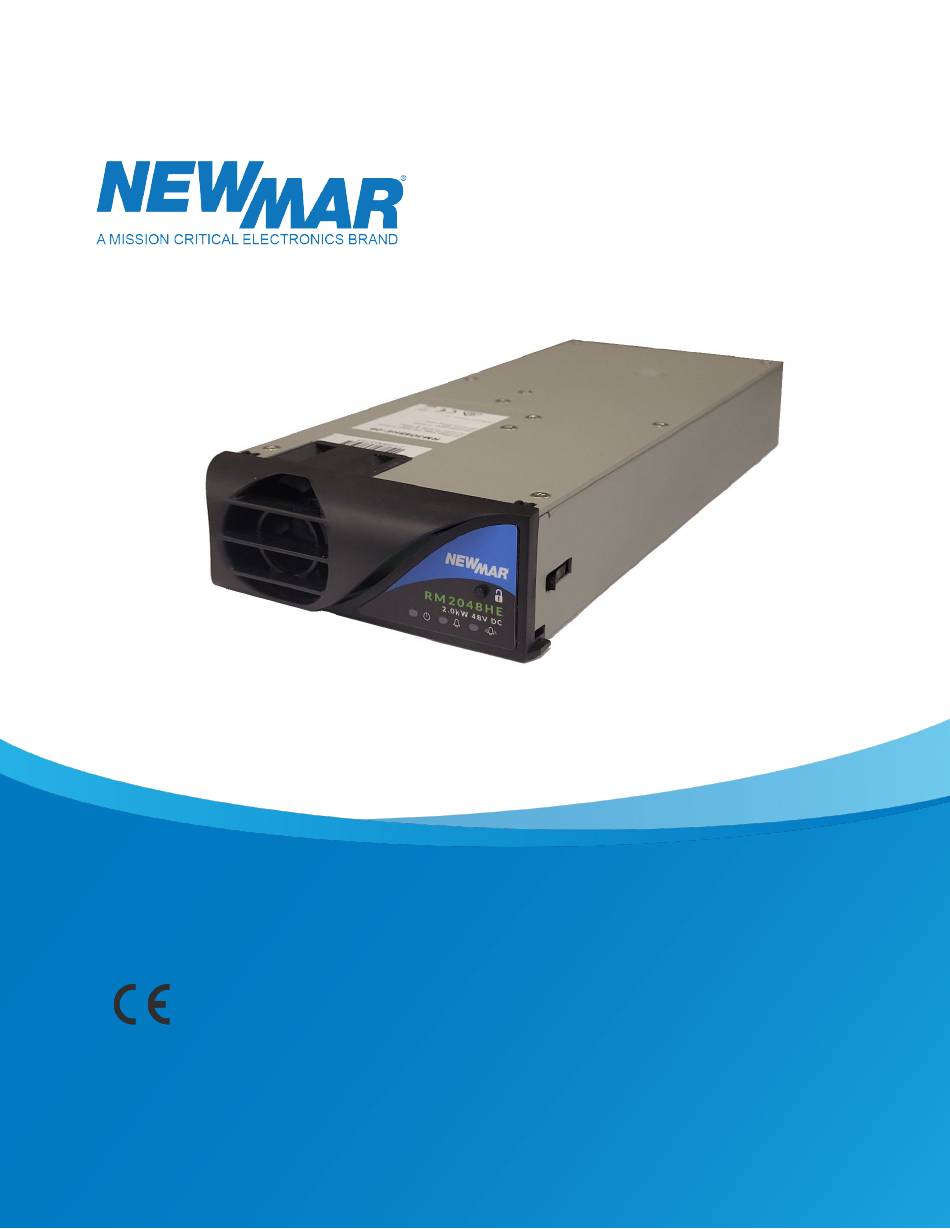

Rectifier Installation Manual
Installation Manual
RM2048HE 48V Rectifier
POWERING THE NETWORK
www.poweringthenetwork.com | 800.854.3906
Costa Mesa, CA
Page 1 of 10
M-RM2048HE 020623
Advertisement
Table of Contents
Related Manuals for NewMar RM2048HE
Summary of Contents for NewMar RM2048HE
- Page 1 Product Compliance RoHS Copyright © Newmar 2021 All rights reserved. Release Date: 26 AUG 2021 Disclaimer: Newmar reserves the right to make changes to the information within this document without notice Rectifier Installation Manual Page 1 of 10 M-RM2048HE 020623...
-
Page 2: Table Of Contents
1. Introduction 1.1. Indicators 1.2. Power and Current Limit 1.3. Output Over-Voltage Shut Down 1.4. Input Over/Under Voltage Shut Down 1.5. Rectifier Soft Start and Inrush Current 1.6. Over Temperature Turn Down/Shutdown 1.7. Reverse Polarity Protection 1.8. Active Load Share 1.9. -
Page 3: Introduction
1 Principles of Operation Introduction The RM2048HE is a telecommunications grade rectifier with the following features: High Efficiency Hot Pluggable Forced Air Cooled Thermally Protected Power Factor Corrected Wide input AC Voltage Constant Power Output Limit ... -
Page 4: Output Over-Voltage Shut Down
Serial Alarm and Control Interface The rectifier, when installed in an Newmar rectifier shelf or system, is controlled via the serial interface by the system monitor. The system monitor can set up control parameters and receive alarm information via this interface. -
Page 5: Voltage Control
1.11.1 Voltage Control The rectifier voltages are set by the system monitor via the serial communications bus. The rectifier voltage can be set to any value between 43V and 60V. The monitor operates in several modes that will affect the rectifier voltage setting. -
Page 6: Post-Mate Connection
1.12 Post-mate Connection The rectifier is “hot plug” capable. This is achieved by having one pin on the rear connector that mates after the other pins. This pin must be connected to negative bus volts and the rectifier will not start until this pin engages. If a rectifier will not start, ensure the rectifier is fully engaged in the Goldfish connector in the rectifier shelf. -
Page 7: Rectifier Shelf
The rectifier contains components at High Temperatures that may burn if touched Rectifier Shelf The RM2048HE rectifier must only be used in conjunction with an appropriate Newmar designed or Newmar approved system or rectifier shelf. AC Supply Surge Protection The AC supply that feeds the rectifiers must have surge protection installed to meet levels defined for terminal equipment. -
Page 8: Dc Output
Voltage Range 85 – 300 V AC (reduced power below 190 V) Frequency Range 45 – 65 Hz Power Factor > 0.99 Efficiency > 96.3% (peak) Input Fuses HRC Fuses in phase and neutral Maximum Input Current 12 A Protection Input Voltage Automatic shutdown, restarts when correct voltage restored. -
Page 9: Environmental
Input to Output 4000 V DC Input to Chassis 3500 V DC (VDR to chassis removed) Output to Chassis 2100 V DC Environmental Operating Ambient Temperature Rated 25 ± 5 ºC Range -20 ºC to 70 ºC (maximum power derates above 45 ºC) Humidity 5 –... -
Page 10: Troubleshooting
Newmar be responsible for indirect or consequential damages or lost profits even if Newmar has been advised of the possibility of such damages. Newmar sole obligation to you shall be the repair or replacement of a non-conforming product.
