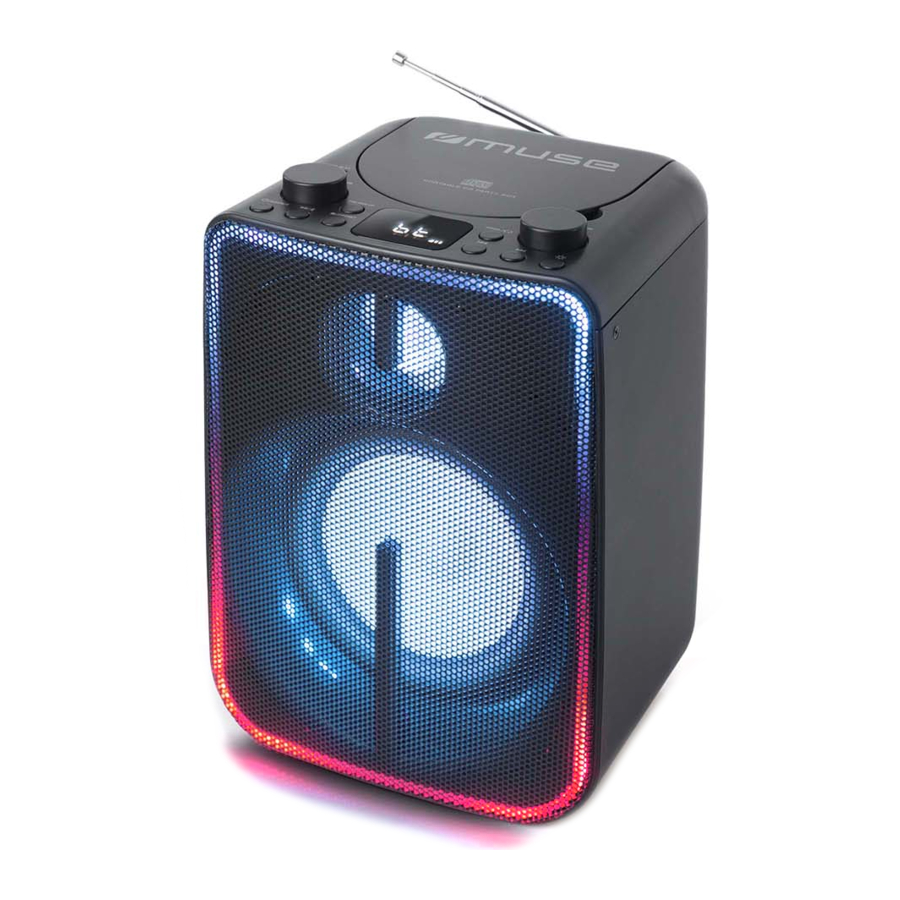

Muse M-1810 DJ - Bluettoth Box Speaker With CD And Battery Manual

Please read the instruction carefully before operating the unit.

LOCATION OF CONTROLS

1. CD compartment
2. USB port for MP3 playback
3. INPUT: To adjust mic/guitar volume
4. : To turn unit ON/OFF
   SOURCE: To select function mode: Bluetooth, CD, USB, FM, AUX
5. : Play/pause; Auto preset radio stations
   : Bluetooth pairing/Disconnect the paired Bluetooth device
6. / PRESET: To stop playback; Preset radio stations
7. FOLDER UP: Folder up
8. LED display
9. Charging indicator
10. PROG./ : To program playback sequences; Repeat playback
11. / : Skip/Search/Tuning
12. : Lighting control button
13. MASTER: To adjust master volume
14. Tweeter
15. Loud speaker
16. FM telescopic antenna
17. Carrying handle
18. AUX IN jack (3.5MM)
19. INPUT jack for microphone/guitar
20. DC IN jack

POWER SUPPLY

Using the AC adaptor

The supplied AC adaptor is suitable for use on AC mains supplies of 100-240V 50/60Hz and should only be connected to a mains supply within these parameters.

• The AC adaptor included with this unit is for its use only. Do not use it with other equipment.
• Turn off the unit before unplugging the AC adaptor from the unit so as to avoid the unit being damaged.
• When the unit is not going to be used for long time, disconnect the AC adaptor from the AC outlet.
• Be sure to use it near the wall outlet and easily accessible. If a malfunction occurs, disconnect the plug from the wall outlet at once.
• AC adaptor is used as the disconnect device. It shall remain readily operable and should not be obstructed during intended use. To be completely disconnected the apparatus from supply mains, the AC adaptor of the apparatus shall be disconnected from the mains socket outlet completely.
• Never use an AC adaptor that is damaged, route power lead in a safe manner and make sure it is not subjected to trapping or pinching. If the power lead is damaged refer to a qualified service agent.

Using the Built-in battery

The unit has a built-in rechargeable battery (lithium-ion). Charge the built-in battery before using it for the first time. The charging indicator will light off when the built-in battery becomes fully charged.

• Recharge the built-in battery when you are ready to use it again.
• While using the built-in battery, the environmental temperature should be 5°C (41°F) to 35°C (95°F).
• To get the longest service life of the built-in battery, charge at indoor-temperature.
• The built-in battery in this device may present a risk of fire or chemical burn if mistreated. Do not disassemble, heat above 100°C (212°F), or incinerate.
• The unit should not be exposed to excessive heat such as sunshine, fire or the like.
• When discarding the unit, environmental problems must be considered and local rules or laws governing the disposal of such products must be strictly followed.
• When the built-in battery power is low, "" will show on display.

Notes:

• The unit is supplied from limited power sources.
• The unit is designed with a thermal protection system. When the unit's operation temperature exceeds 45°C, it will stop charging the built-in battery automatically for protection. In this case, await the unit to cool down to resume normal.
• In a concern of saving energy, when playback has reached to the end or listening volume is set at a very low level and no control is operated on the device for a period of 15 minutes, the unit will automatically switch to Standby mode.

TURNING UNIT ON/OFF

Press button once to turn on the unit.

Press and hold button again to turn off the unit.

SELECTING FUNCTION

The function (Bluetooth, CD, USB, FM, AUX) is selected by pressing SOURCE button repeatedly.

LISTENING TO THE RADIO

When the unit is ON, press SOURCE button repeatedly to select FM mode.

MANUAL SEARCH

1. Choose your radio station with / .
2. Adjust the volume using the MASTER knob.

AUTOMATIC SEARCH

Press and hold / . The automatic search locates strong stations. A station with a weak signal can be set manually by repeatedly pressing / .

Note: During the search operation, the sound level is automatically muted.

To enhance radio reception ability: Extend the antenna.

PRESET STATIONS

This unit can store 30 FM stations.

Manual storage

1. Select a radio station manually or in automatic search.
2. Press and hold PRESET until "P 01" blinks on the screen.
3. Press or to select a channel.
4. Press PRESET to save it.
5. Repeat steps 1-4 to store other stations.

Auto preset

Press and hold to start automatic preset programming. Radio frequencies will be browsed and radio stations stored automatically. When all the available radio stations are stored or all memory locations are full, the auto preset programming function will stop.

Listen to station presets

Press PRESET and repeat the operation as many times as necessary to select your station.

Adjust the volume using the MASTER knob.

BLUETOOTH FUNCTION

Pairing a Bluetooth Device

1. When the unit is ON, press SOURCE button repeatedly to select Bluetooth mode. The display will show "". The Bluetooth indicator will start to blink rapidly, indicating it is in pairing mode.
2. On the Bluetooth device, enable Bluetooth and select "MUSE M-1810 DJ" from the Device List. (Refer to the user manual of the device to be connected for detailed operations.) If the Bluetooth device prompts for a pass code, use "0000". Some Bluetooth devices will ask you to accept the connection. If the unit is paired properly, the Bluetooth indicator will light on with an indication voice.

Tip: If you want to connect your Bluetooth speaker to another Bluetooth audio device, press and hold button to disconnect the current device, and then follow the steps above to make a new connection.

• On some devices such as computers, once paired you must select the unit from the Bluetooth menu and choose "Use as Audio Device (stereo)" or similar.
• Pairing remains intact when the unit and/or your Bluetooth device is taken out of communication range. An active connection will be re-established when your Bluetooth device returns within range.
• When the unit is turned on again, it will automatically try to reconnect with the most recently paired Bluetooth device.

Using a Bluetooth Device

1. With a unit paired (see previous section), operate your Bluetooth device and its sound will be heard through the M-1810 DJ's speakers.
2. Press the button to pause playback. Press again to resume playback.
3. Select desired track with / .
4. Adjust the volume using the MASTER knob. You can also adjust the volume on the device to which you are paired.

STEREO PAIRING

This function makes it possible for you to get stereo surround sound quality. It requires two Bluetooth speakers M-1810 DJ to realize the real Bluetooth radio channel wireless separation, therefore, you've got to purchase two M-1810 DJ.

Tips: it is suggested that the distance between the main speaker and secondary speaker is within 4 meters.

1. Turn on the two Bluetooth speakers M-1810 DJ.
2. When both speakers are in pairing mode, press and hold button on one Bluetooth speaker which will become the main speaker (L channel), then it will search and connect to the secondary speaker (R channel). They will recognize the left and right channel automatically.
3. Connect your main speaker to Bluetooth enabled device (e.g. smart phone).
4. Play your song and listen to the sound in stereo.
5. Press / button on either speaker to pause playback. Press again to resume playback.
6. Press and hold button on either speaker to disconnect the stereo pairing.

LISTENING TO DISC

1. Open the CD door. Insert a disc with label side facing up.
2. Close the CD door.
3. Press SOURCE button repeatedly to select CD mode. The display will show "" for a few seconds. The total number of tracks will appear on display and then playback starts automatically.

Note: If there is no disc inserted, the display will show "".

USB PLAYBACK

1. Connect an USB device to the USB port on unit.
2. Press SOURCE button repeatedly to select USB mode. The display will show "" for a few seconds. The total number of tracks will appear on display and then playback starts automatically.
3. Select desired track with / .

Notes:

• The total number of MP3 files on the USB device should not exceed 999.
• The device may not contain more than 99 directories.
• The reading time takes about a few seconds or more depending on the amount of MP3 files and folders on USB device.
• Do not put anything other than a USB device to the port of this unit. Other objects may damage the USB mechanism.
• The USB socket must not be connected to the computer directly, for that may damage the unit.
• There are many USB devices in the market. We cannot guarantee to support all different models. Please try another USB device if your device is not supported.

PLAY MODES (CD/MP3)

Repeat playback

Press button repeatedly to select a play mode. Repeat indicator will light up.

• Repeat One: display shows "" for a few seconds
• Repeat All: display shows "" for a few seconds
• Repeat random: display shows "" for a few seconds

To cancel repeat playback, press button repeatedly until display shows "" and repeat indicator lights off.

Program playback

1. In stop mode, press PROG. button. The display will show "P01". The program indicator will blink.
2. Select the desired track with / , then press PROG. button to conform.
3. Repeat above steps to program up to 20 tracks for CD and 99 tracks for MP3.
4. Press to start program playback. The program indicator remains on.
5. To cancel program playback, press button twice. The program indicator lights off.

CONNECTING AUXILIARY SOURCE

1. Connect your auxiliary source (e.g. mp3 player) to the AUX IN jack on the unit (cable not included).
2. Press SOURCE button repeatedly to select AUX mode. The display will show "".
3. Start playback from your auxiliary source.
4. Adjust the volume to desired level.
5. To stop playback, disconnect your auxiliary source from the AUX IN jack.

USING THE INPUT JACK

The INPUT jack of unit can be compatible with microphone set and guitar.

Guitar playback

1. Press button to turn on the unit.
2. Plug your electronic guitar into the INPUT jack on the unit.
3. Start to play your guitar and the sound will be output from the unit.
4. Rotate INPUT knob to adjust the guitar volume as desired.
5. To stop playback, disconnect your guitar from the INPUT jack.

Singing through the microphone

Sing along with the music by plugging in the microphone (not supplied) into the INPUT jack on the unit.

Notes:

• Rotate INPUT knob to adjust the mic volume as desired.
• If the microphone is placed near the loudspeaker, a howling effect (acoustic feedback) may occur. If this happens, place microphone away from the loudspeaker.
• Rotate INPUT knob to adjust the mic volume as desired.
• Disconnect the microphone from the unit to avoid unnecessary interference when not in use.

Tapping or dropping the microphone can permanently damage your microphone. Resist the urge to swing the microphone around by the cord.

COLOR LIGHT

Once the unit is turned on, the color light will turn on automatically. The multiple color changes to achieve a color cycle effect. Press to fix the color. Press again to resume color change. Press and hold to turn off the light.

TECHNICAL SPECIFICATION

POWER SUPPLY:
AC ADAPTOR:
Input: AC 100-240V 50/60Hz
Output: DC 9.0V 2.5A 22.5W

RECHARGEABLE BATTERY
Battery Type: 7.4V 1800mAh Lithium Ion Battery
Operating Time: Approx. 4 hours at 80% volume after fully charged
Charging Time: Approx. 5 hours

RADIO: FM 87.5-108MHz

BLUETOOTH
Bluetooth Version: V5.0
Bluetooth: 2.402-2.48GHz
RF Output Power: 0 dBm
Working Distance: Up to 10 meters measured in open space (wall and structures may affect range of device)

Specifications are subject to change without notice.

TROUBLE SHOOTING GUIDE

Should this unit exhibit a problem, check the following before seeking service:

No Power

• Make sure unit is connected to AC power.
• Make sure the battery is recharged.

No Sound – General

• External device's volume is set to minimum; raise volume.
• The M-1810 DJ's volume is set to minimum; raise volume.

The Bluetooth device cannot pair or connect with the unit

• You have not activated the Bluetooth function of your device. Refer to the user manual of your device to activate Bluetooth function.
• The unit is not in pairing mode. Press and hold the button until the Bluetooth indicator blinks fast.
• The unit is already connected with another Bluetooth device; disconnect that device and then try again.

CD MAINTENANCE

Cleaning

Disconnect the unit from the mains supply before cleaning.

• Use a soft, dry, clean cloth. Regularly dust the vents at the back or sides.
• Using solvents, abrasive or alcohol-based products risks damaging the appliance.
• If an object or liquid enters inside the appliance, unplug it immediately and have it checked by an authorized engineer.

Notes on disc

• Do not use irregular shape CDs (example: heart-shaped, octagonal ones). It may result in malfunctions.
• Do not place more than one disc in the disc compartment.
• Do not try to open the disc compartment during playing.
• Do not touch the lens. Doing so may cause malfunction.
• If there is a scratch, dirt or fingerprints on the disc, it may cause tracking error. Before playing, clean the disc with a cleaning cloth. Wipe the disc from the center out. Don't store discs in places with high temperatures or high humidity, they can become warped. After playing, store the disc in its case.

Before transporting the unit, remove the disc from the disc compartment.

IMPORTANT SAFETY INSTRUCTIONS

To reduce the risk of electric shock, do not open the device, there is no party inside for the user. Refer all servicing to qualified personnel.

The lightning with the arrow symbol in the triangle is a warning sign alerting the user to "dangerous voltage" inside the unit.

The exclamation point in the triangle is a warning sign alerting the user of important instructions accompanying the product.

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

Invisible laser radiation when open and interlocks defeated. Avoid exposure to beam.

This compact disc player is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT marking is located at the back of unit.

• The use of apparatus in moderate climates.
• The Marking plate is located at the back of the device.
• Make sure to have a minimum distance of 5 cm around the unit for sufficient ventilation.
• Ensure that the ventilation openings is not covered with items such as newspapers, tablecloths, curtains, etc.
• Do not place naked flame sources, such as lighted candles on the apparatus.
• Do not expose this appliance to dripping or splashing water.
• Do not place objects filled with liquids, such as glass, vase on the device.
• Do not throw batteries into fire! Respect the environment when disposing of used batteries.
• Batteries should not be exposed to excessive heat such as sunshine, fire or other similar heat source.
• AC adaptor is used as the disconnect device. It shall remain readily operable and should not be obstructed during intended use. To be completely disconnected the apparatus from supply mains, the AC adaptor of the apparatus shall be disconnected from the mains socket outlet completely.
• Under the influence of fast transient and / or electrostatic electric phenomenon, the product may malfunction and the user must perform a power reset of the device.
• The normal function of the product may be disturbed by strong Electro-Magnetic Interference. If so, simply reset the product to resume normal operation by following the instruction manual. In case the function could not resume, please use the product in other location.

If in the future, you need to get rid of this product, please note that Waste electrical products should not be disposed of with household waste. Recycling facilities exist. Check with your municipality or ask your dealer for advice. (Directive for Waste Electrical and Electronic Equipment)

The Bluetooth^® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by New One S.A.S is under license. Other trademarks and trade names are those of their respective owners.

Hereby, NEW ONE S.A.S, declares that this MUSE M-1810 DJ is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. The declaration of conformity may be consulted at www.muse-europe.com

NEW ONE S.A.S
10, Rue de la Mission, 25480 Ecole Valentin, France
